TIDatasheet (PDF)

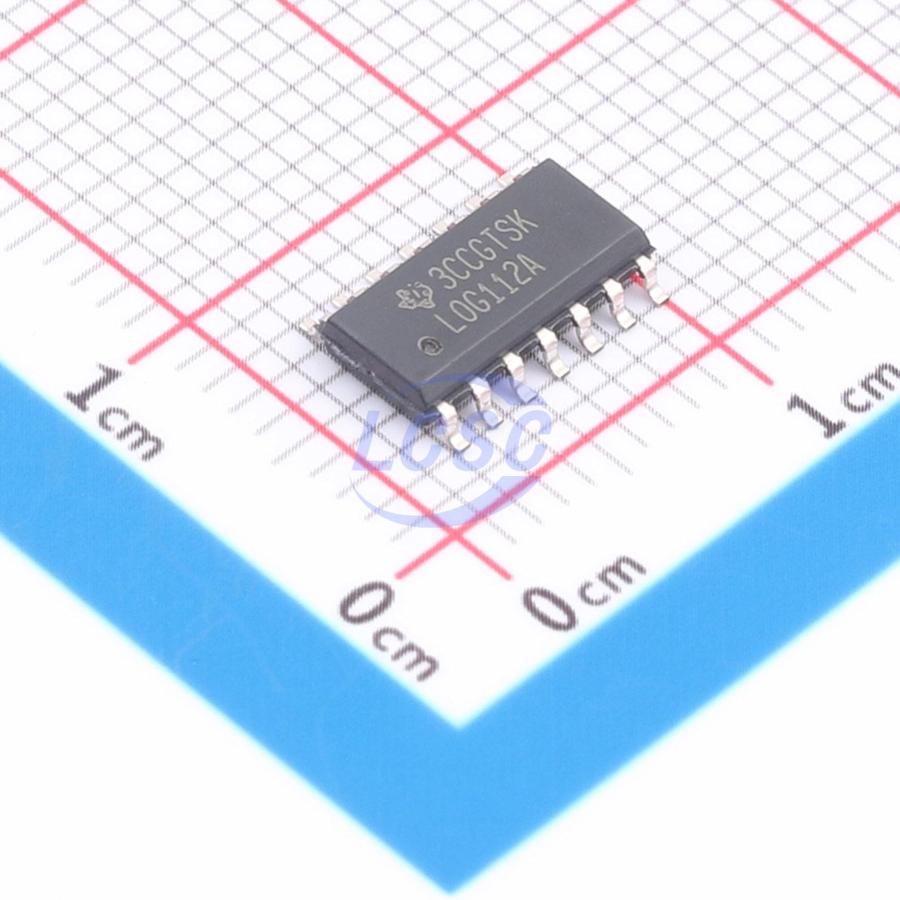

LOG112AIDR
1.75mA 1.4MHz 18mA 300uV 500V/ms 5pA SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Precision Logarithmic and Log Ratio Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LOG112AIDR
- Store part #
- C544716
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
997 in stock
#C544716
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,231.68 | ₹2,231.68 |
| 10+ | ₹2,016.33 | ₹20,163.30 |
| 30+ | ₹1,938.39 | ₹58,151.70 |
| 100+ | ₹1,783.62 | ₹1,78,362.00 |
1 × ₹2,231.68
₹2,231.68
excl. GST
₹2,633.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LOG112AIDR
₹2,231.68 for 1 + GST
Specifications
- Quiescent Current
- 1.75mA
- Gain Bandwidth Product
- 1.4MHz
- Output Current
- 18mA
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 500pA
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 5pA
- Dual Supply
- -18V~-4.5V;4.5V~18V
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The LOG112 and LOG2112 are versatile integrated circuits that compute the logarithm or log ratio of an input current relative to a reference current. VLOGOUT of the LOG112 and LOG2112 are trimmed to 0.5V per decade of input current, ensuring high precision over a wide dynamic range of input signals. The LOG112 and LOG2112 features a 2.5V voltage reference that may be used to generate a precision current reference using an external resistor. Low DC offset voltage and temperature drift allow accurate measurement of low-level signals over the specified temperature range of -5°C to +75°C.
Applications
- LOG, LOG RATIO: Communication, Analytical, Medical, Industrial, Test, General Instrumentation
- PHOTODIODE SIGNAL COMPRESSION AMP
- ANALOG SIGNAL COMPRESSION IN FRONT OF ANALOG-TO-DIGITAL (A/D) CONVERTER
- ABSORBANCE MEASUREMENT
- OPTICAL DENSITY MEASUREMENT
Key features
- EASY-TO-USE COMPLETE FUNCTION
- OUTPUT SCALING AMPLIFIER
- ON-CHIP 2.5V VOLTAGE REFERENCE
- HIGH ACCURACY: 0.2% FSO Over 5 Decades
- WIDE INPUT DYNAMIC RANGE: 7.5 Decades, 100pA to 3.5mA
- LOW QUIESCENT CURRENT: 1.75mA
- WIDE SUPPLY RANGE: ±4.5V to ±18V
- PACKAGES: SO-14 (narrow) and SO-16
