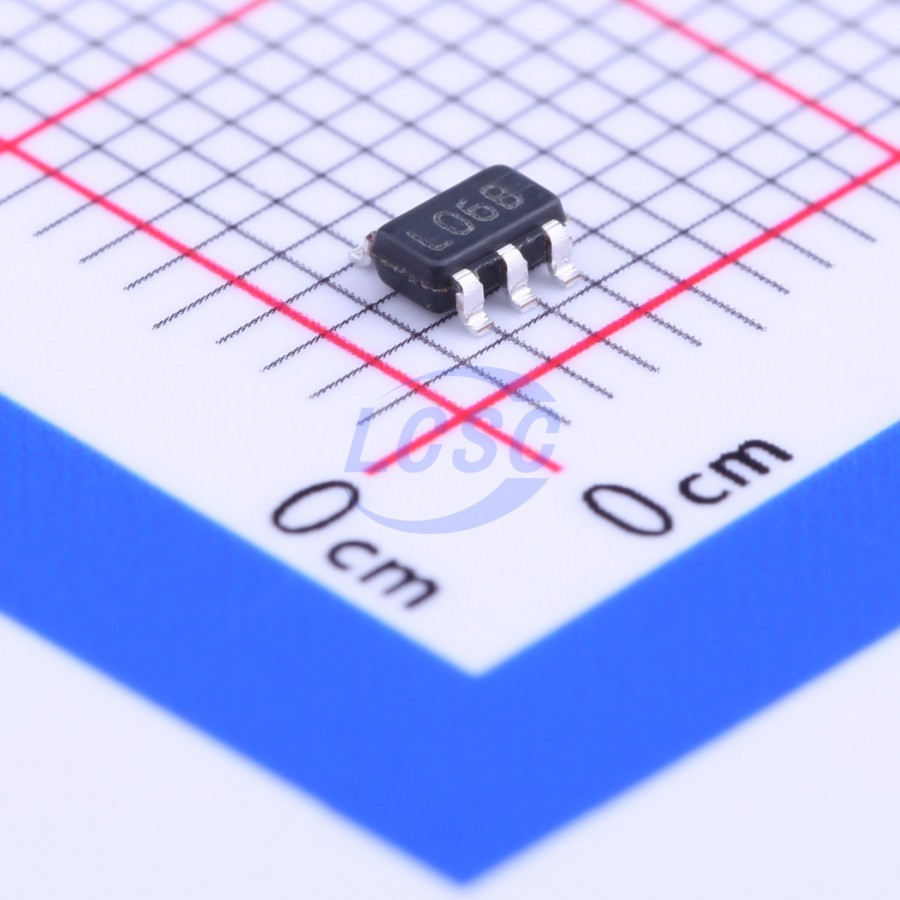

LP2980IM5-ADJ/NOPB
1.23V~15V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
50mA, 16V, adjustable low-dropout regulator with enable functionality
- Manufacturer
- TI
- Manufacturer part #
- LP2980IM5-ADJ/NOPB
- Store part #
- C181526
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,105 in stock
#C181526
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹61.78 | ₹308.90 |
| 50+ | ₹48.14 | ₹2,407.00 |
| 150+ | ₹42.30 | ₹6,345.00 |
| 500+ | ₹35.01 | ₹17,505.00 |
| 3,000+ | ₹31.75 | ₹95,250.00 |
| 6,000+ | ₹29.81 | ₹1,78,860.00 |
5 × ₹61.78
₹308.90
excl. GST
₹364.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP2980IM5-ADJ/NOPB
₹308.90 for 5 + GST
Specifications
- Output Voltage
- 1.23V~15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 50mA
- Features
- Enable control;Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The LP2980-ADJ is a 50 mA adjustable voltage regulator designed to provide ultra low dropout in battery powered applications. Using an optimized VIP (vertically Integrated PNP) process, the LP2980-ADJ delivers unequaled performance in all specifications critical to batterypowered designs: Adjustable Output: output voltage can be set from 1.23V to 15V. Precision Reference: 1.0% tolerance. Dropout Voltage: typically 120 mV @ 50 mA load, and 7 mV @ 1 mA load. Ground Pin Current: typically 320 μA @ 50 mA load, and 80 µA @ 1 mA load. Sleep Mode: less than 1 μA quiescent current when on/off pin is pulled low. Smallest Possible Size: Package uses minimum board space.
Applications
- Cellular Phone
- Palmtop/Laptop Computer
- Camcorder, Personal Stereo, Camera
Key features
- Ultra Low Dropout Voltage
- Output Adjusts from 1.23V to 15V
- Specified 50 mA Output Current
- Uses Tiny SOT-23 Package
- Requires Few External Components
- < 1 μA Quiescent Current when Shutdown
- Low Ground Pin Current at All Loads
- High Peak Current Capability (150 mA Typical)
- Wide Supply Voltage Range (2.5V–16V)
- Overtemperature/overcurrent Protection
- -40°C to ±125°C Junction Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP2980IM5X-ADJ/NOPB#C544460TI · SOT-23-5 | TI | SOT-23-5 | 4,289 | ₹53.67 · 4,289 in stock | View |
