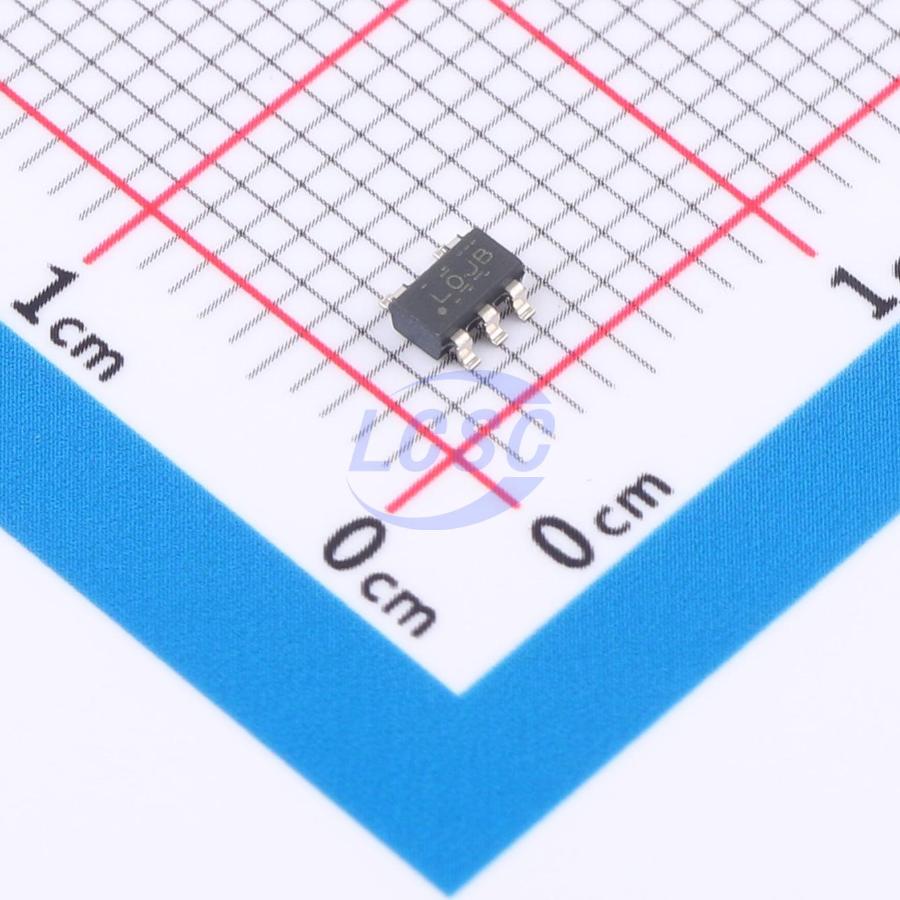

LP2981IM5X-3.6/NOPB

3.6V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

100mA, 16V, low-dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: LP2981IM5X-3.6/NOPB
Store part #: C2861932
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2861932

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹184.20	₹184.20
10+	₹180.01	₹1,800.10
30+	₹177.28	₹5,318.40
100+	₹174.36	₹17,436.00

Quantity (min 1)

1 × ₹184.20

₹184.20

excl. GST

₹217.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP2981IM5X-3.6/NOPB

₹184.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.6V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 600uA
Output Configuration: Positive
Output Current: 100mA
Operating Voltage: 16V
Features: Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.36 g

Overview

The LP2981-N is a 100-mA, fixed-output voltage regulator designed specifically to meet the requirements of battery-powered applications. Using an optimized Vertically Integrated PNP (VIP) process, the LP2981-N delivers unequaled performance in all specifications critical to battery-powered designs: Dropout Voltage: Typically 200 mV at 100-mA load, and 7 mV at 1-mA load. Ground Pin Current: Typically 600 μA at 100-mA load, and 80 μA at 1-mA load. Sleep Mode: Less than 1-μA quiescent current when ON/OFF pin is pulled low. Precision Output: 0.75% tolerance output voltages available (A grade). Assorted voltage options, from 2.5 V to 5 V, are available as standard products.

Applications

Cellular Phones
Palmtop and Laptop Computers
Personal Digital Assistants (PDA)
Camcorders
Personal Stereos
Cameras

Key features

Operating Input Voltage Range: 2.1 V to 16 V
Ultralow-Dropout Voltage
Output Voltage Accuracy 0.75% (A Grade)
Specified 100-mA Output Current
<1-μA Quiescent Current when Shutdown
Low Ground Pin Current at All Load Currents
High Peak Current Capability (300 mA Typical)
Wide Supply Voltage Range (16 V Maximum)
Fast Dynamic Response to Line and Load
Low ZOUT Over Wide Frequency Range
Overtemperature and Overcurrent Protection
-40°C to 125°C Junction Temperature Range

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS7A2436DBVR#C2871520TI · SOT-23-5	TI	SOT-23-5	13	₹68.92 · 13 in stock	View
LR6302B36M#C2986732LRC · SOT-23-5	LRC	SOT-23-5	1,425	₹12.81 · 1,425 in stock	View
ST732M36R#C3744211ST · SOT-23-5L	ST	SOT-23-5L	50	₹163.66 · 50 in stock	View
MIC5206-3.6YM5-TR#C625822MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	17	₹366.06 · 17 in stock	View
TPMIC5205-3.6YM5#C18212662TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	1,820	₹23.68 · 1,820 in stock	View
