TIDatasheet (PDF)

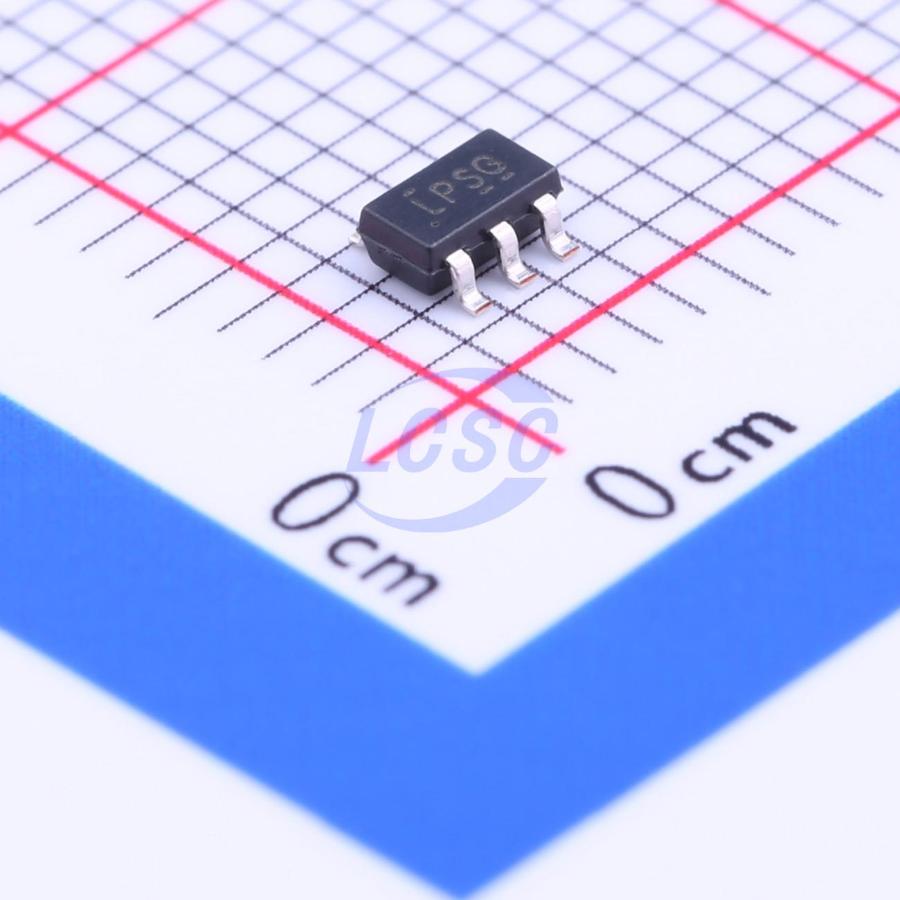

LP2985-50DBVR
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, 16V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP2985-50DBVR
- Store part #
- C74511
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,255 in stock
#C74511
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.91 | ₹159.55 |
| 50+ | ₹24.86 | ₹1,243.00 |
| 150+ | ₹21.84 | ₹3,276.00 |
| 500+ | ₹18.07 | ₹9,035.00 |
| 3,000+ | ₹15.28 | ₹45,840.00 |
| 6,000+ | ₹14.28 | ₹85,680.00 |
5 × ₹31.91
₹159.55
excl. GST
₹188.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP2985-50DBVR
₹159.55 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 850uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 16V
- Features
- Enable control;Noise bypass terminal;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The LP2985 family of fixed-output, low-dropout regulators offers exceptional, cost-effective performance for both portable and nonportable applications. Available in voltages of 1.8 V, 2.5 V, 2.8 V, 2.9 V, 3 V, 3.1 V, 3.3 V, 5 V, and 10 V, the family has an output tolerance of 1% for the A version (1.5% for the non - A version) and is capable of delivering 150 - mA continuous load current. Standard regulator features, such as overcurrent and overtemperature protection, are included.
Applications
- Portable Devices
- Digital Cameras and Camcorders
- CD Players
- MP3 Players
Key features
- Output Tolerance of – 1% (A Grade), 1.5% (Standard Grade)
- Ultra - Low Dropout, Typically – 280 mV at Full Load of 150 mA, 7 mV at 1 mA
- Wide VIN Range: 16 V Max
- Low IQ: 850 μA at Full Load at 150 mA
- Shutdown Current: 0.01 μA Typ
- Low Noise: 30 μVRMS With 10 - nF Bypass Capacitor
- Stable With Low - ESR Capacitors, Including Ceramic
- Overcurrent and Thermal Protection
- High Peak - Current Capability
- ESD Protection Exceeds JESD 22: 2000 - V Human - Body Model (A114 - A), 200 - V Machine Model (A115 - A)
