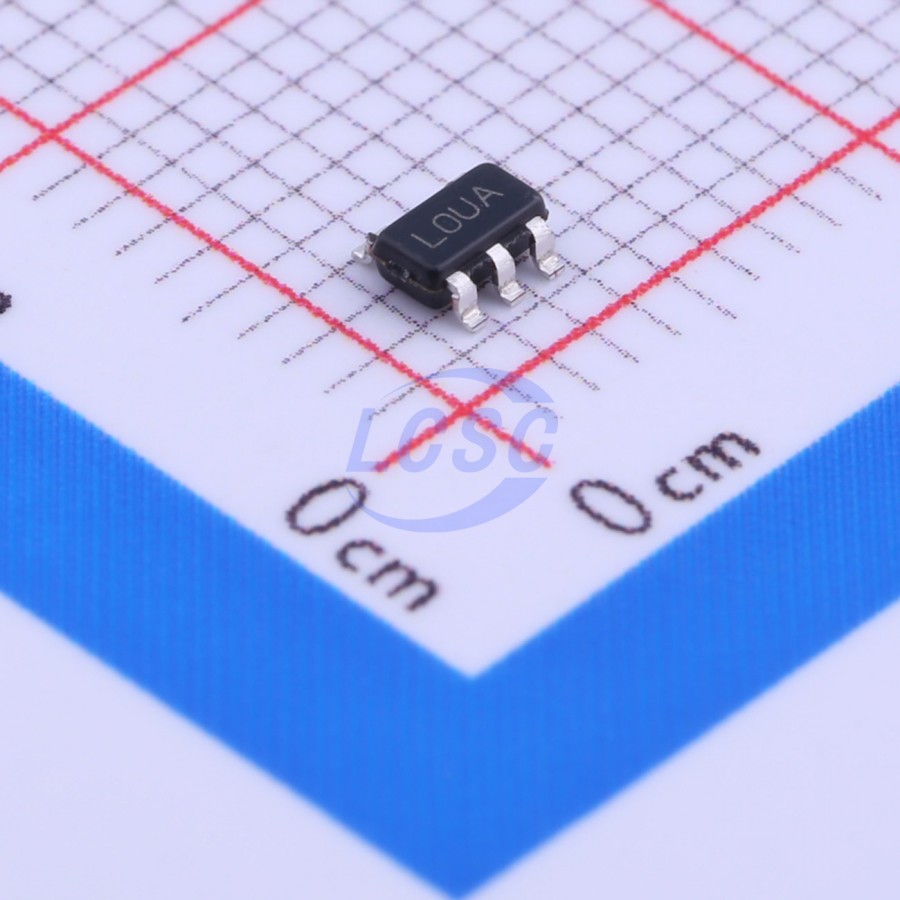

LP2985AIM5X-5.0/NOPB

5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

150mA, 16V, low-dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: LP2985AIM5X-5.0/NOPB
Store part #: C311788
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,980 in stock

#C311788

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹60.63	₹303.15
50+	₹47.67	₹2,383.50
150+	₹42.10	₹6,315.00
500+	₹33.13	₹16,565.00
3,000+	₹30.05	₹90,150.00
6,000+	₹28.19	₹1,69,140.00

Quantity (min 5, multiples of 5)

5 × ₹60.63

₹303.15

excl. GST

₹357.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP2985AIM5X-5.0/NOPB

₹303.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 850uA
Output Configuration: Positive
Output Current: 150mA
Operating Voltage: 16V
Features: Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection;Noise bypass terminal
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

The LP2985-N low noise linear (LDO) regulator delivers up to 150-mA output current and only requires 300-mV dropout voltage of input to output. Using an optimized vertically integrated PNP (VIP) process, the LP2985-N delivers unequaled performance for all battery-powered designs. The LP2985-N device provides 1% tolerance precision output voltage with only 75-μA quiescent current at 1-mA load and 850-μA at 150-mA load. By adding a 10-nF bypass capacitor, the output noise can be reduced to 30-μV_RMS in a 30-kHz bandwidth. The LP2985-N is designed to work with a ceramic output capacitor with equivalent series resistance (ESR) as low as 5-mΩ. The device is available with fixed output voltage from 2.5-V to 6.1 V.

Applications

Cellular Phones
Palmtop and Laptop Computers
Personal Digital Assistants (PDA)
Camcorders
Personal Stereos
Cameras

Key features

Input Voltage Range: 2.5 V to 16 V
Ultra Low-Dropout Voltage Ensured 150 mA Output Current
Requires Minimum External Components
Stable With Low-ESR Output Capacitor
<1 μA Quiescent Current When Shut Down
Low Ground Pin Current at All Loads
Output Voltage Accuracy 1% (A Grade)
High Peak Current Capability
Low Z_OUT; 0.3 Ω Typical (10 Hz to 1 MHz)
Overtemperature and Overcurrent Protection
-40°C to 125°C Junction Temperature Range
Custom Voltages Available

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LP2985AIM5-5.0/NOPB#C130188TI · SOT-23-5	TI	SOT-23-5	805	₹87.38 · 805 in stock	View
LD2985BM50R#C283387ST · SOT-23-5L	ST	SOT-23-5L	2,995	₹102.97 · 2,995 in stock	View
LP2985A-50DBVR#C109382TI · SOT-23-5	TI	SOT-23-5	13,040	₹37.14 · 13,040 in stock	View
LP2985A-50DBVT#C469887TI · SOT-23-5	TI	SOT-23-5	32	₹69.39 · 32 in stock	View
LP2985-50DBVR#C74511TI · SOT-23-5	TI	SOT-23-5	27,510	₹31.91 · 27,510 in stock	View
