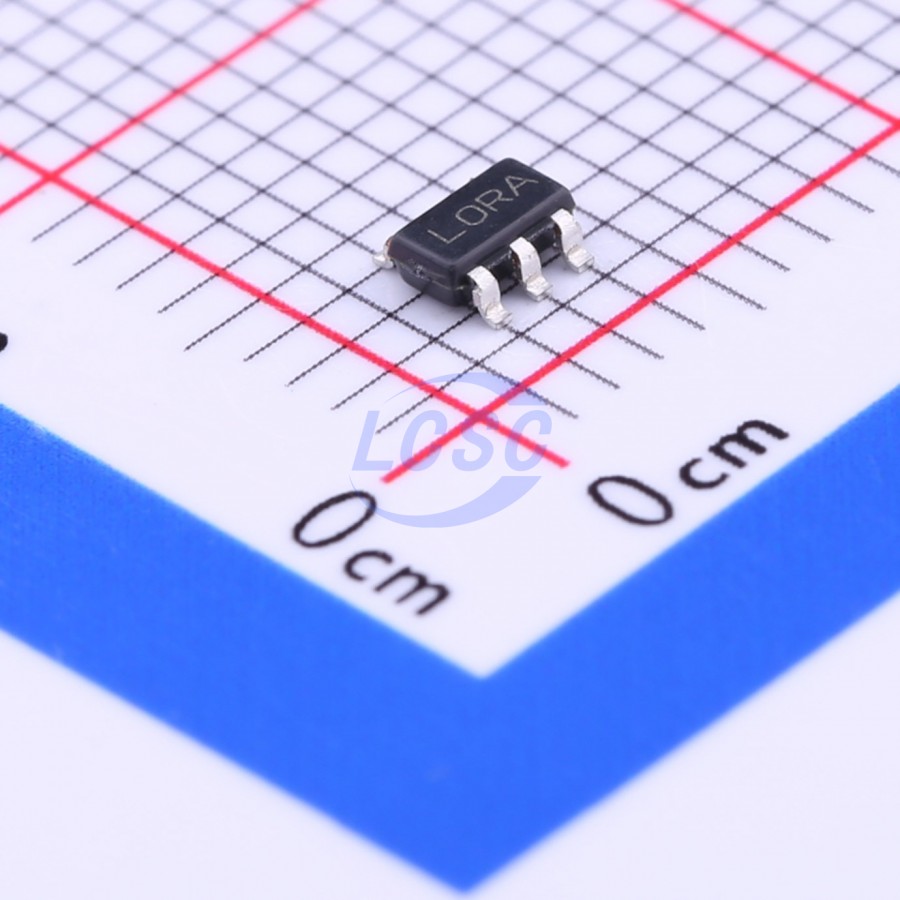

LP2985AIM5-3.3/NOPB

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS CompliantActive

150mA, 16V, low-dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: LP2985AIM5-3.3/NOPB
Store part #: C16085
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,555 in stock

#C16085

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹62.11	₹62.11
10+	₹51.16	₹511.60
30+	₹46.31	₹1,389.30
100+	₹40.57	₹4,057.00
500+	₹35.37	₹17,685.00
1,000+	₹33.94	₹33,940.00

Quantity (min 1)

1 × ₹62.11

₹62.11

excl. GST

₹73.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP2985AIM5-3.3/NOPB

₹62.11 for 1 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 850uA
Output Configuration: Positive
Output Current: 150mA
Operating Voltage: 16V
Features: Enable control;Noise bypass terminal;Input overvoltage protection;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

The LP2985-N low noise linear (LDO) regulator delivers up to 150-mA output current and only requires 300-mV dropout voltage of input to output. Using an optimized vertically integrated PNP (VIP) process, the LP2985-N delivers unequaled performance for all battery-powered designs. The LP2985-N device provides 1% tolerance precision output voltage with only 75-μA quiescent current at 1-mA load and 850-μA at 150-mA load. By adding a 10-nF bypass capacitor, the output noise can be reduced to 30-μV_RMS in a 30-kHz bandwidth. The LP2985-N is designed to work with a ceramic output capacitor with equivalent series resistance (ESR) as low as 5-mΩ. The device is available with fixed output voltage from 2.5-V to 6.1 V.

Applications

Cellular Phones
Palmtop and Laptop Computers
Personal Digital Assistants (PDA)
Camcorders
Personal Stereos
Cameras

Key features

Input Voltage Range: 2.5 V to 16 V
Ultra Low-Dropout Voltage Ensured 150 mA Output Current
Requires Minimum External Components
Stable With Low-ESR Output Capacitor
<1 μA Quiescent Current When Shut Down
Low Ground Pin Current at All Loads
Output Voltage Accuracy 1% (A Grade)
High Peak Current Capability
Low Z_OUT; 0.3 Ω Typical (10 Hz to 1 MHz)
Overtemperature and Overcurrent Protection
-40°C to 125°C Junction Temperature Range
Custom Voltages Available
