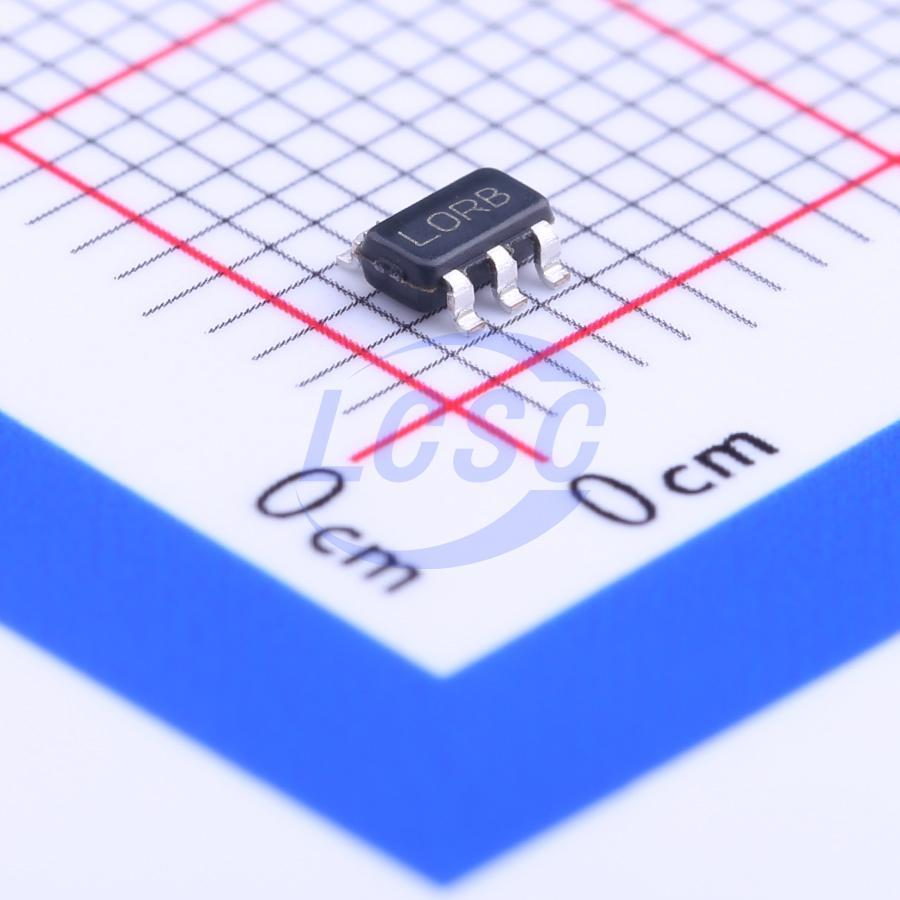

LP2985IM5-3.3/NOPB
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, 16V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP2985IM5-3.3/NOPB
- Store part #
- C129998
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,682 in stock
#C129998
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.50 | ₹81.50 |
| 10+ | ₹65.41 | ₹654.10 |
| 30+ | ₹58.68 | ₹1,760.40 |
| 100+ | ₹49.98 | ₹4,998.00 |
| 500+ | ₹42.81 | ₹21,405.00 |
| 1,000+ | ₹40.64 | ₹40,640.00 |
1 × ₹81.50
₹81.50
excl. GST
₹96.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP2985IM5-3.3/NOPB
₹81.50 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 850uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 16V
- Features
- Enable control;Noise bypass terminal;Input overvoltage protection;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The LP2985-N low noise linear (LDO) regulator delivers up to 150-mA output current and only requires 300-mV dropout voltage of input to output. Using an optimized vertically integrated PNP (VIP) process, the LP2985-N delivers unequaled performance for all battery-powered designs. The LP2985-N device provides 1% tolerance precision output voltage with only 75-μA quiescent current at 1-mA load and 850-μA at 150-mA load. By adding a 10-nF bypass capacitor, the output noise can be reduced to 30-μV_RMS in a 30-kHz bandwidth. The LP2985-N is designed to work with a ceramic output capacitor with equivalent series resistance (ESR) as low as 5-mΩ. The device is available with fixed output voltage from 2.5-V to 6.1 V.
Applications
- Cellular Phones
- Palmtop and Laptop Computers
- Personal Digital Assistants (PDA)
- Camcorders
- Personal Stereos
- Cameras
Key features
- Input Voltage Range: 2.5 V to 16 V
- Ultra Low-Dropout Voltage Ensured 150 mA Output Current
- Requires Minimum External Components
- Stable With Low-ESR Output Capacitor
- <1 μA Quiescent Current When Shut Down
- Low Ground Pin Current at All Loads
- Output Voltage Accuracy 1% (A Grade)
- High Peak Current Capability
- Low Z_OUT; 0.3 Ω Typical (10 Hz to 1 MHz)
- Overtemperature and Overcurrent Protection
- -40°C to 125°C Junction Temperature Range
- Custom Voltages Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP2985IM5X-3.3/NOPB#C129375TI · SOT-23-5 | TI | SOT-23-5 | 3,424 | ₹67.50 · 3,424 in stock | View |
 | LP2985AIM5-3.3/NOPB#C16085TI · SOT-23-5 | TI | SOT-23-5 | 4,555 | ₹74.70 · 4,555 in stock | View |
 | LP2985-33DBVT#C75216TI · SOT-23-5 | TI | SOT-23-5 | 128 | ₹73.51 · 128 in stock | View |
 | LP2985A-33DBVR#C89826TI · SOT-23-5 | TI | SOT-23-5 | 27,425 | ₹46.44 · 27,425 in stock | View |
 | LP2985-33DBVR#C95414TI · SOT-23-5 | TI | SOT-23-5 | 2,17,030 | ₹29.83 · 2,17,030 in stock | View |
