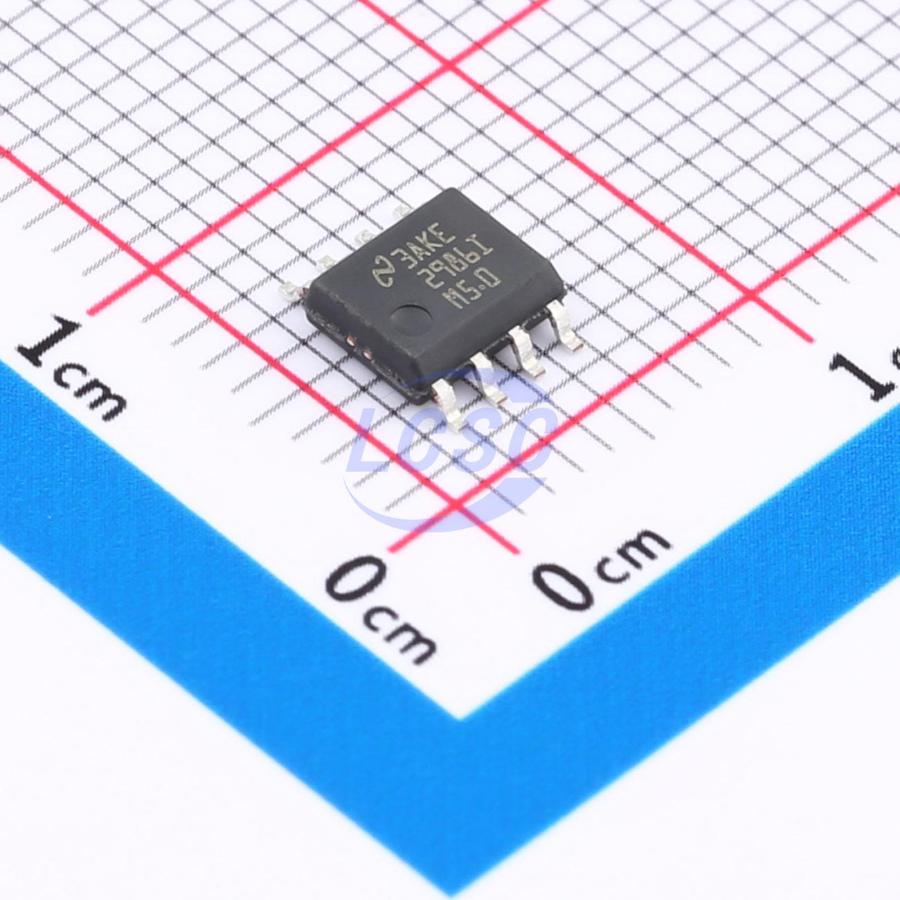

LP2986IMX-5.0/NOPB

The LP2986 is a 200-mA high-precision LDO regulator with a wide input voltage supply. The device has two output voltage modes: a fixed-precision output mode and an adjustable output voltage via an external resistive divider. Using an optimized Vertically Integrated PNP (VIP) process, the LP2986 delivers superior performance: Dropout Voltage: Typically 180 mV at 200-mA load, and 1 mV at 1-mA load. GROUND Pin Current: Typically 1 mA at 200-mA load, and 200 μA at 10-mA load. Sleep Mode: The LP2986 draws less than 1 μA quiescent current when SHUTDOWN pin is pulled low. ERROR Flag: The built-in ERROR flag goes low when the output drops approximately 5% below nominal. Precision Output: The standard product versions available can be pin-strapped (using the internal resistive divider) to provide output voltages of 5 V, 3.3 V, or 3 V with ensured accuracy of 0.5% (A grade) and 1% (standard grade) at room temperature.

Applications

• Cellular Phones
• Palmtop/Laptop Computers
• Camcorders
• Personal Stereos
• Cameras

Key features

• Wide Supply Voltage Range (16 V Maximum)
• Ultra-Low-Dropout Voltage
• 0.5% Output Voltage Accuracy (A Grade) Ensured
• 200-mA Output Current
• <1-μA Quiescent Current when Shutdown
• Low GROUND Pin Current at All Loads
• High Peak Current Capability (400 mA Typical)
• Overtemperature/Overcurrent Protection
• -40°C to +125°C Junction Temperature Range
