TIDatasheet (PDF)

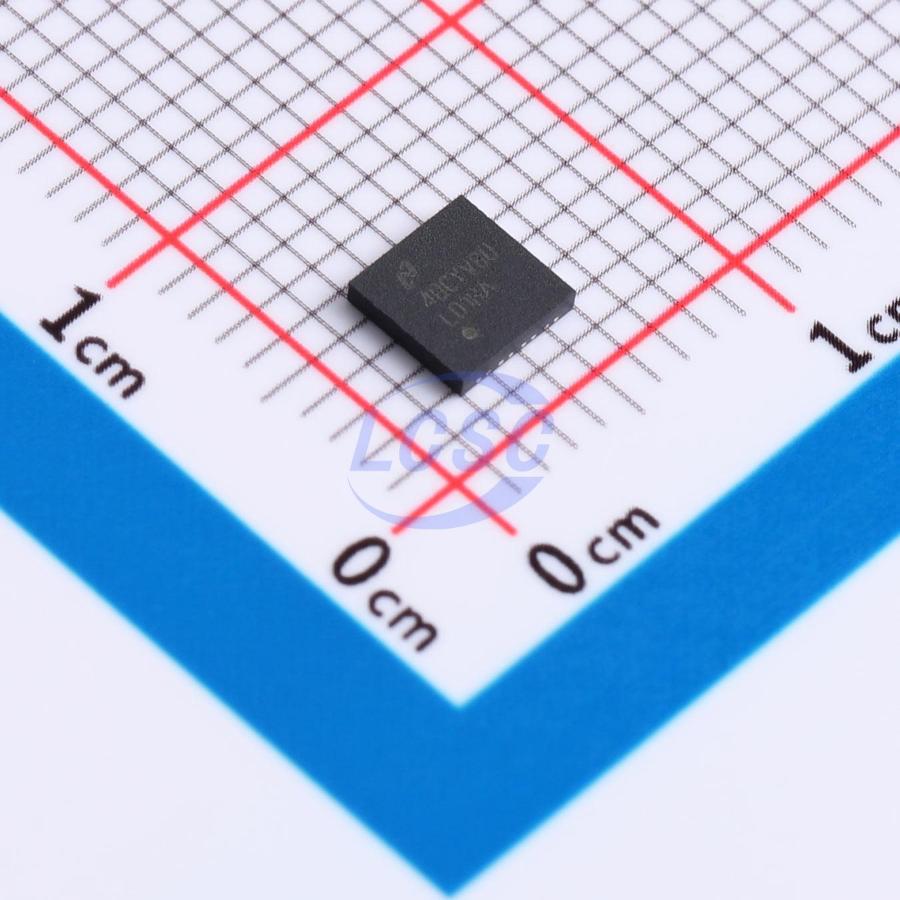

LP2989AILD-3.0/NOPB
3V Positive Fixed WSON-8-EP(4x4) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WSON-8-EP(4x4)ROHS3 CompliantActive
500mA, 16V, low-dropout regulator with power good indication and enable functionality
- Manufacturer
- TI
- Manufacturer part #
- LP2989AILD-3.0/NOPB
- Store part #
- C2862806
- Package / case
- WSON-8-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C2862806
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹579.80 | ₹579.80 |
| 10+ | ₹564.68 | ₹5,646.80 |
| 30+ | ₹554.52 | ₹16,635.60 |
| 100+ | ₹544.36 | ₹54,436.00 |
1 × ₹579.80
₹579.80
excl. GST
₹684.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP2989AILD-3.0/NOPB
₹579.80 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 75uA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Enable control;Operating status indication;Over Current Protection;Thermal shutdown;Noise bypass terminal;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
The LP2989 is a fixed-output 500-mA precision LDO regulator designed for use with ceramic output capacitors. Output noise can be reduced to 18 μv (typical) by connecting an external 10-nF capacitor to the bypass pin. Using an optimized Vertically Integrated PNP (VIP) process, the LP2989 delivers superior performance: Dropout Voltage: Typically 310 mv at 500-mA load, and 1 mV at 100-μA load. Ground Pin Current: Typically 3 mA at 500-mA load, and 110 μA at 100-μA load. Sleep Mode: The LP2989 draws less than 0.8-μA quiescent current when SHUTDOWN pin is pulled low. Error Flag: The built-in error flag goes low when the output drops approximately 5% below nominal. Precision Output: Output voltage accuracy is 0.75% (A grade) and 1.25% (standard grade) at room temperature.
Applications
- Notebooks and Desktop PCs
- PDAs and Palmtop Computers
- Wireless Communication Pins
- SMPS Post-Regulators
Key features
- 2.1-V to 16-V Input Voltage Range
- 2.5-V to 5-V Fixed Output Voltage Options
- Ultra-Low Dropout Voltage
- 500-mA Continuous Output Current
- Very Low Output Noise With External Capacitor
- <0.8–μA Quiescent Current When Shutdown
- Low Ground Pin Current at All Loads
- 0.75% Output Voltage Accuracy (A Grade)
- High Peak Current Capability (800-mA typical)
- Overtemperature and Overcurrent Protection
- -40°C to 125°C Junction Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LP2989ILD-3.0/NOPB#C2876116TI · WSON-8-EP(4x4) | TI | WSON-8-EP(4x4) | On request | ₹274.60 · 0 in stock | View | |
