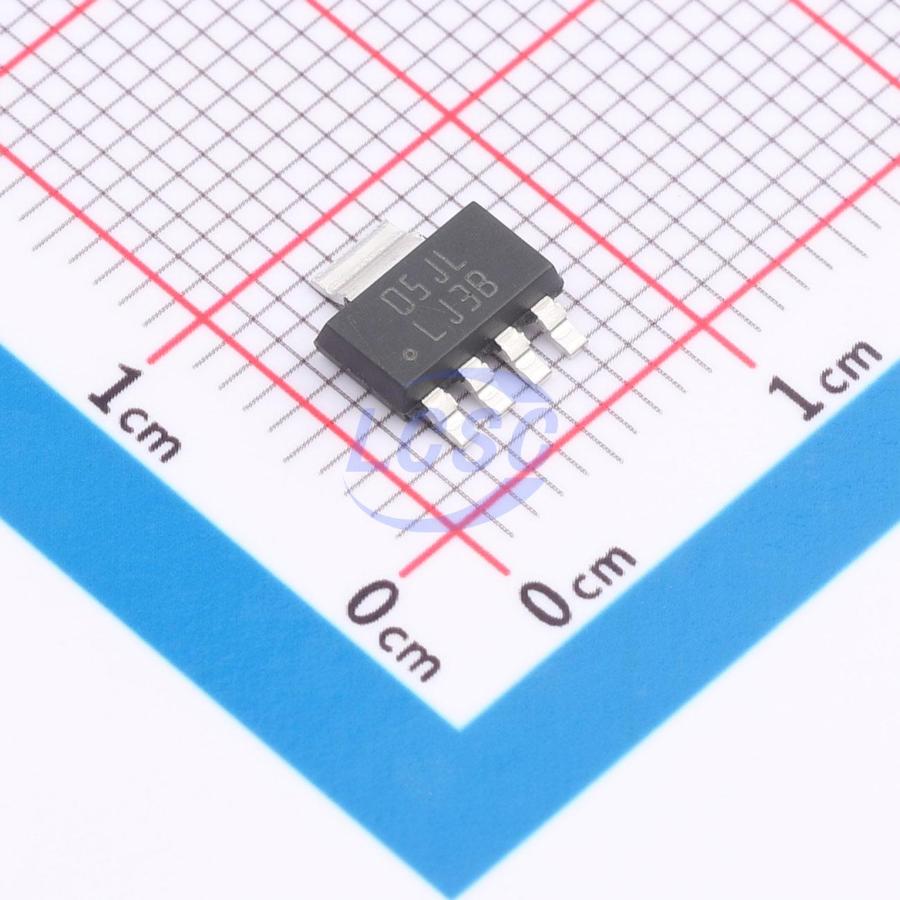

LP3855EMPX-ADJ/NOPB
1.23V~6.6V Positive Adjustable SOT-223-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-5ROHS3 CompliantActive
1.5A, 7V, Adjustable Ultra-Low Dropout Regulator with Enable Function
- Manufacturer
- TI
- Manufacturer part #
- LP3855EMPX-ADJ/NOPB
- Store part #
- C2861097
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2861097
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹638.23 | ₹638.23 |
| 10+ | ₹623.21 | ₹6,232.10 |
| 30+ | ₹613.12 | ₹18,393.60 |
| 100+ | ₹603.25 | ₹60,325.00 |
1 × ₹638.23
₹638.23
excl. GST
₹753.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LP3855EMPX-ADJ/NOPB
₹638.23 for 1 + GST
Specifications
- Output Voltage
- 1.23V~6.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 1.5A
- Operating Voltage
- 7V
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.55 g
Overview
The LP3855-ADJ fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. The LP3855-ADJ is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3855-ADJ to operate under extremely low dropout conditions. Dropout Voltage: Ultra low dropout voltage; typically 24mV at 150mA load current and 240mV at 1.5A load current. Ground Pin Current: Typically 4mA at 1.5A load current. Shutdown Mode: Typically 10nA quiescent current when the shutdown pin is pulled low. Adjustable Output Voltage: The output voltage may be programmed via two external resistors.
Applications
- Microprocessor Power Supplies
- GTL, GTL+, BTL, and SSTL Bus Terminators
- Power Supplies for DSPs
- SCSI Terminator Post Regulators
- High efficiency linear regulators
- Battery chargers
- Other battery powered applications
Key features
- Ultra Low Dropout Voltage
- Stable with Selected Ceramic Capacitors
- Low Ground Pin Current
- Load Regulation of 0.06%
- 10nA Quiescent Current in Shutdown Mode
- Specified Output Current of 1.5A DC
- Available in DDPAK/TO-263, TO-220 and SOT 223 Packages
- Overtemperature/Overcurrent Protection
- -40°C to ±125°C Junction Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3855EMP-ADJ/NOPB#C2867452TI · SOT-223-5 | TI | SOT-223-5 | 10 | ₹1,020.34 · 10 in stock | View |
