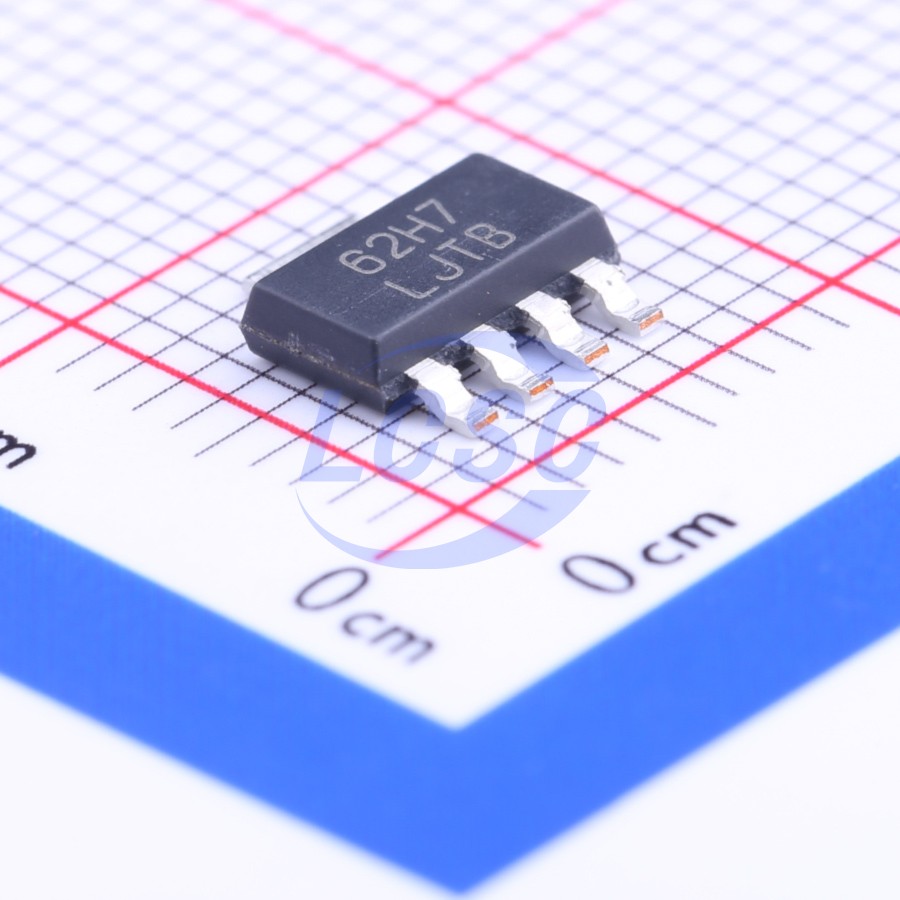

LP38692MP-5.0/NOPB
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-5
SOT-223-5ROHS3 CompliantActive
1A, 10V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP38692MP-5.0/NOPB
- Store part #
- C28191
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C28191
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹324.81 | ₹324.81 |
| 10+ | ₹270.71 | ₹2,707.10 |
| 30+ | ₹236.82 | ₹7,104.60 |
| 100+ | ₹202.27 | ₹20,227.00 |
| 500+ | ₹186.64 | ₹93,320.00 |
| 1,000+ | ₹179.68 | ₹1,79,680.00 |
1 × ₹324.81
₹324.81
excl. GST
₹383.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP38692MP-5.0/NOPB
₹324.81 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
The LP38690/2 low-dropout CMOS linear regulators offer tight output tolerance (2.5% typical), very low dropout (450mV at 1A load current with V<sub>diff u</sub> = 5V), and excellent AC performance with ultra-low ESR ceramic output capacitors. The low thermal resistance of the WSON, SON-223, and PFM packages enables full operating current at elevated ambient temperatures. The use of a PMOS power transistor eliminates the need for DC base drive current biasing, keeping ground pin current below 100μA regardless of load current, input voltage, or operating temperature.
Applications
- Hard disk drives
- Laptops
- Battery-powered devices
- Portable instruments
Key features
- ±2.5% output accuracy (25°C)
- Low dropout: 450mV at 1A (typical, 5V output)
- Wide input voltage range (2.7V to 10V)
- Precision (trimmed) bandgap reference
- Specifications ensured over -40°C to ±125°C temperature range
- 1μA shutdown quiescent current
- Thermal overload protection
- Foldback current limiting
- DFN, SOT-223, and 6-lead WSON packages
- Enable pin (LP38692)
