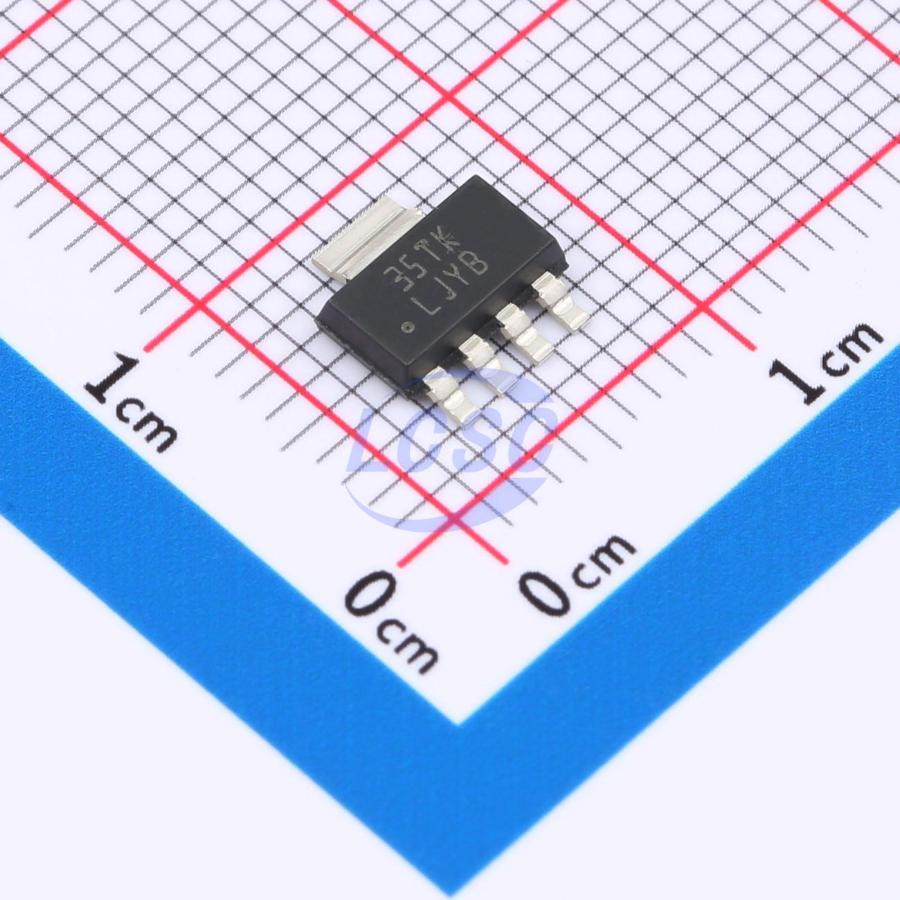

LP38693MPX-3.3/NOPB
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-223-5
SOT-223-5ROHS3 CompliantActive
500mA, 10V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP38693MPX-3.3/NOPB
- Store part #
- C2877963
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C2877963
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹636.19 | ₹636.19 |
| 200+ | ₹276.20 | ₹55,240.00 |
| 500+ | ₹268.21 | ₹1,34,105.00 |
| 1,000+ | ₹264.27 | ₹2,64,270.00 |
1 × ₹636.19
₹636.19
excl. GST
₹750.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LP38693MPX-3.3/NOPB
₹636.19 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 10V
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
The LP3869x low-dropout CMOS linear regulator features tight output tolerance (2% typical) and ultra-low dropout voltage (250mV at 500mA load current, V<sub>OUT</sub> = 5V), and delivers excellent AC performance with ultra-low ESR ceramic output capacitors. The regulator is available in low thermal resistance WSON, SOT-223, and TO-252 packages, enabling full-current operation even at elevated ambient temperatures. The use of a PMOS power transistor eliminates the need for DC base drive current biasing, keeping ground pin current below 100μA regardless of load current, input voltage, or operating temperature. - Dropout voltage: 250mV (typical) at 500mA (5V output voltage, typical) - Ground pin current: 55μA (typical) at full load - Precision output voltage: 2% accuracy (25°C)
Applications
- Hard disk drives
- Laptops
- Battery-powered devices
- Portable instruments
Key features
- Wide input voltage range (2.7V to 10V)
- All WSON options available as AEC-Q100 Grade 1
- 2.0% output accuracy (25°C)
- Low dropout: 250mV at 500mA (5V output typical)
- Precision (trimmed) bandgap reference
- Specifications guaranteed over -40°C to +125°C temperature range
- 1μA shutdown quiescent current
- Thermal overload protection
- Foldback current limiting
- TO-252, SOT-223, and 6-bump WSON packages
- Enable pin (LP38693)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP38693MP-3.3/NOPB#C130904TI · SOT-223-5 | TI | SOT-223-5 | 292 | ₹241.51 · 292 in stock | View |
| LP38692MPX-3.3/NOPB#C2866079TI · SOT-223-5 | TI | SOT-223-5 | 1,539 | ₹144.88 · 1,539 in stock | View | |
 | LP38692MP-3.3/NOPB#C140347TI · SOT-223-5 | TI | SOT-223-5 | 157 | ₹199.02 · 157 in stock | View |
