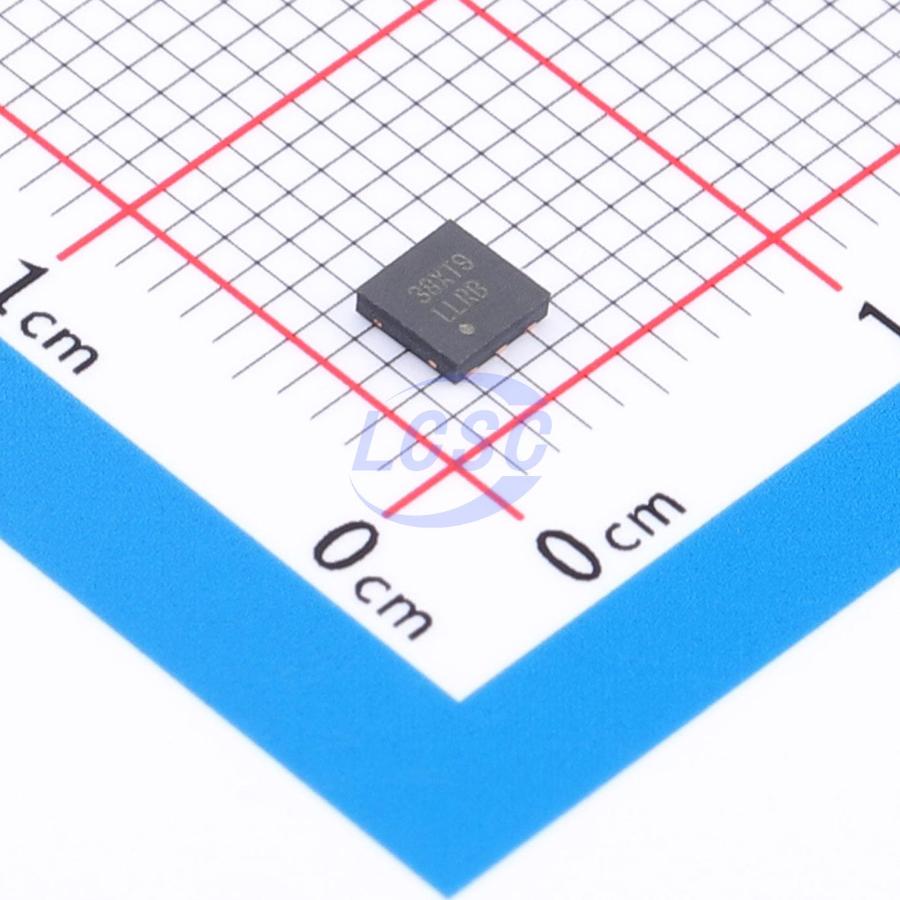

LP38693QSDX-ADJ/NOPB

1.25V~9V Positive Adjustable WSON-6-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

WSON-6-EP(3x3)ROHS3 CompliantActive

Automotive 500mA, 10V, adjustable low-dropout regulator with enable

Manufacturer: TI
Manufacturer part #: LP38693QSDX-ADJ/NOPB
Store part #: C2867628
Package / case: WSON-6-EP(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C2867628

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹281.04	₹281.04
10+	₹273.69	₹2,736.90
30+	₹268.94	₹8,068.20
100+	₹263.96	₹26,396.00

Quantity (min 1)

1 × ₹281.04

₹281.04

excl. GST

₹331.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,500 per reel

LP38693QSDX-ADJ/NOPB

₹281.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.25V~9V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 55uA
Output Configuration: Positive
Operating Voltage: 10V
Output Current: 500mA
Output Type: Adjustable
Features: Enable control;Thermal shutdown;Over Current Protection

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.7 g

Overview

The LP3869x-ADJ low-dropout CMOS linear regulator features a 2% accurate reference voltage and ultra-low dropout (250mV at 500mA load current with VOUT = 5V), and supports ultra-low ESR ceramic output capacitors for excellent AC performance. This regulator is available in low thermal resistance WSON and SOT-223 packages, enabling full-current operation even at elevated ambient temperatures. The use of a PMOS power transistor eliminates the need for DC base drive current biasing, keeping ground pin current below 100μA regardless of load current, input voltage, or operating temperature.

Applications

Hard disk drives
Laptops
Battery-powered devices
Portable instruments

Key features

Wide input voltage range: 2.7V to 10V
All WSON options available as AEC-Q100 Grade 1 devices
Output voltage range: 1.25V to 9V
2% ADJ pin voltage accuracy (25°C)
Low dropout voltage: 250mV at 500mA (typical, 5V output)
Precision (trimmed) bandgap reference guarantees specifications over -40°C to +125°C
1μA shutdown quiescent current
Thermal overload protection
Foldback current limiting
GND pin current: 55μA at full load (typical)
EN pin (LP38693-ADJ)
