TIDatasheet (PDF)

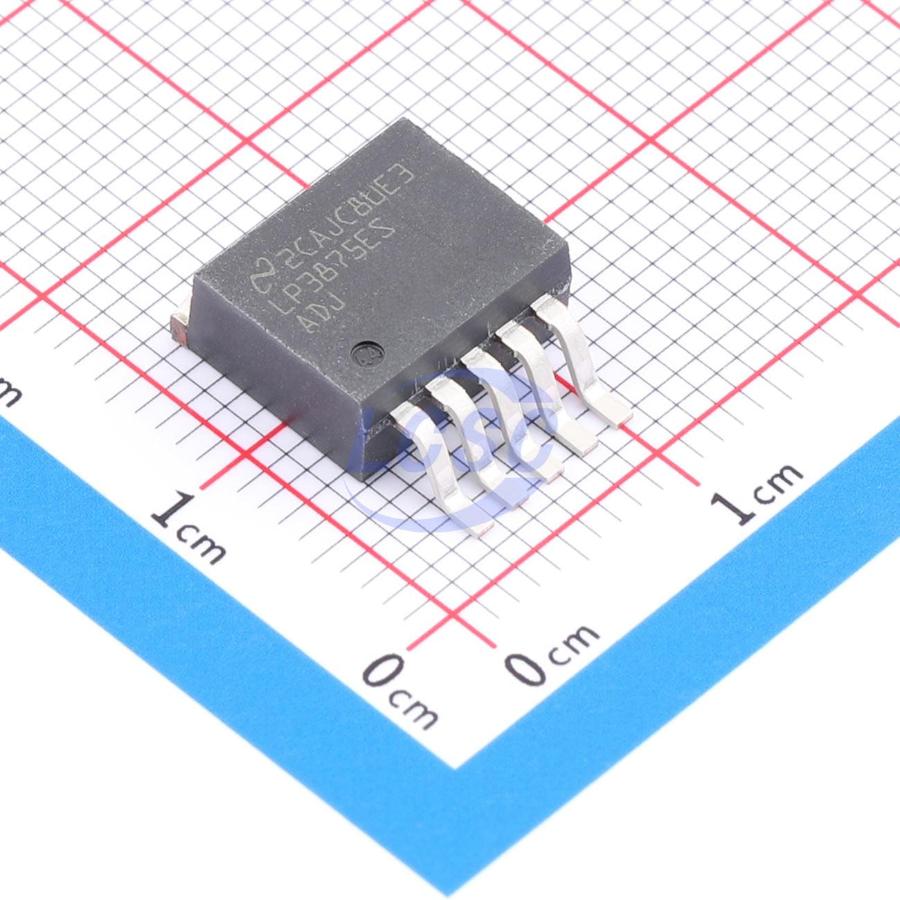

LP3875ES-ADJ/NOPB
Positive Adjustable DDPAK-5(TO-263-5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DDPAK-5(TO-263-5)ROHS3 CompliantActive
1.5A, adjustable low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP3875ES-ADJ/NOPB
- Store part #
- C2860281
- Package / case
- DDPAK-5(TO-263-5)
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2860281
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,282.93 | ₹1,282.93 |
| 10+ | ₹1,252.93 | ₹12,529.30 |
| 45+ | ₹1,233.17 | ₹55,492.65 |
| 90+ | ₹1,213.18 | ₹1,09,186.20 |
1 × ₹1,282.93
₹1,282.93
excl. GST
₹1,513.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tube
LP3875ES-ADJ/NOPB
₹1,282.93 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 7V
- Output Current
- 1.5A
- Output Type
- Adjustable
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 11.36 g
Overview
The LP3875-ADJ fast ultra-low-dropout LDO operates from a 2.5-V to 7-V input supply. This ultra-lowdropout LDO responds very quickly to step changes in load, which makes it suitable for low-voltage microprocessor applications. The LP3875-ADJ is developed on a CMOS process, which allows low quiescent-current operation independent of output load current. This CMOS process also allows the LP3875-ADJ to operate under extremely low dropout conditions. Dropout Voltage: Ultra-low-dropout voltage; typically 38 mV at 150 mA load current and 380 mV at 1.5-A load current. Ground Pin Current: Typically 6 mA at 1.5-A load current. Shutdown Mode: Typically 10-nA quiescent current when the SD pin is pulled low. Adjustable Output Voltage: The output voltage may be programmed via two external resistors.
Applications
- Microprocessor Power Supplies
- GTL, GTL+, BTL, and SSTL Bus Terminators
- Power Supplies for DSPs
- SCSI Terminator Post Regulators
- High Efficiency Linear Regulators
- Battery Chargers
- Other Battery-Powered Applications
Key features
- Input Voltage Range: 2.5 V to 7 V
- Ultra Low Dropout Voltage
- Low Ground Pin Current
- Load Regulation of 0.06%
- 10-nA Quiescent Current in Shutdown Mode
- Specified Output Current of 1.5-A DC
- Minimum Output Capacitor Requirements
- Overtemperature/Overcurrent Protection
- -40°C to +125°C Junction Temperature Range
- Available in DDPAK/TO-263 and SOT-223 Packages
