TIDatasheet (PDF)

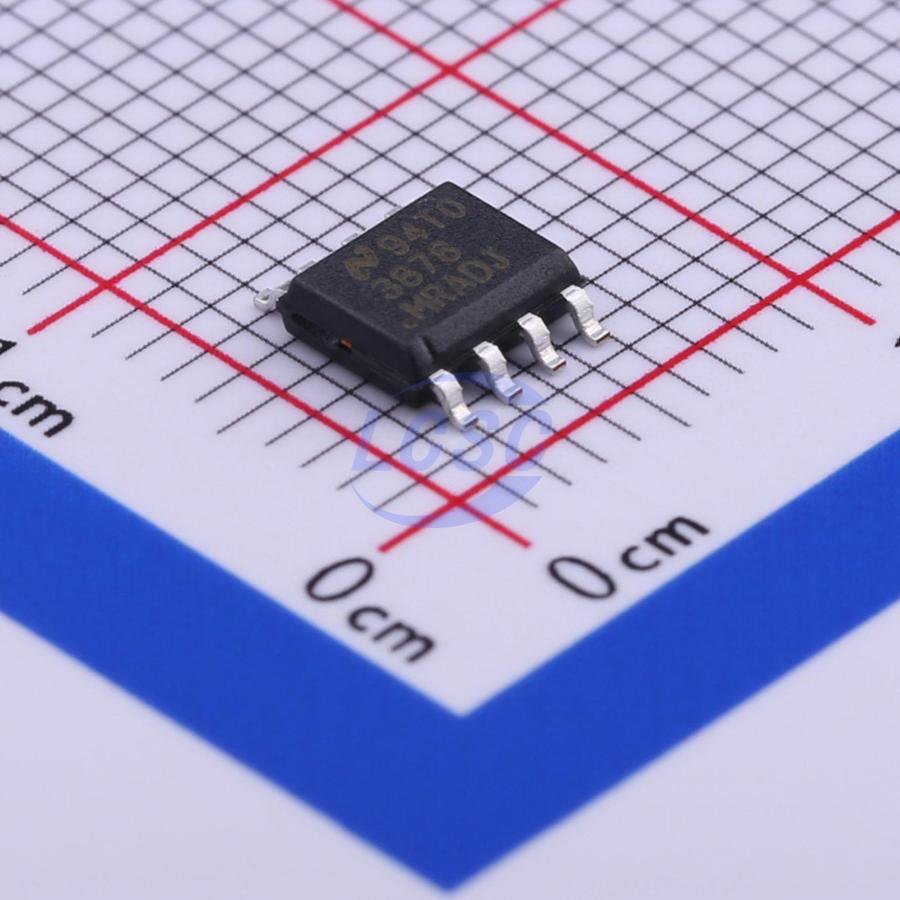

LP3878MRX-ADJ/NOPB
1V~5.5V Positive Adjustable SO-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SO-8-EPROHS3 CompliantActive
800mA, 16V, adjustable low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP3878MRX-ADJ/NOPB
- Store part #
- C411875
- Package / case
- SO-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,050 in stock
#C411875
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.50 | ₹192.50 |
| 10+ | ₹163.38 | ₹1,633.80 |
| 30+ | ₹147.30 | ₹4,419.00 |
| 100+ | ₹129.27 | ₹12,927.00 |
| 500+ | ₹108.84 | ₹54,420.00 |
| 1,000+ | ₹105.15 | ₹1,05,150.00 |
1 × ₹192.50
₹192.50
excl. GST
₹227.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LP3878MRX-ADJ/NOPB
₹192.50 for 1 + GST
Specifications
- Output Voltage
- 1V~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 180uA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 800mA
- Features
- Enable control;Noise bypass terminal;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
The LP3878-ADJ is an 800-mA, adjustable output, voltage regulator designed to provide high performance and low noise in applications requiring output voltages as low as 1 V. Using an optimized VIP (Vertically Integrated PNP) process, the LP3878-ADJ delivers superior performance: Ground Pin Current: Typically 5.5 mA at 800-mA load, and 180 μA at 100-μA load. Low Power Shutdown: The LP3878-ADJ draws less than 10-μA quiescent current when the SHUTDOWN pin is pulled low. Precision Output: Ensured output voltage accuracy is 1% at room temperature. Low Noise: Broadband output noise is only 18 μV (typical) with a 10-nF bypass capacitor.
Applications
- ASIC Power Supplies In: Desktops, Notebooks, and Graphic Cards, Set Top Boxes, Printers, and Copiers
- DSP and FPGA Power Supplies
- SMPS Post-Regulator
- Medical Instrumentation
Key features
- Input Supply Voltage: 2.5 V to 16V
- Output Voltage Range: 1 V to 5.5 V
- Designed for Use With Low-ESR Ceramic Capacitors
- Very Low Output Noise
- 8-Lead SO PowerPAD and WSON Surface Mount Packages
- <10-μA Quiescent Current in Shutdown
- Low Ground Pin Current at all Loads
- Overtemperature and Overcurrent Protection
- -40°C to 125°C Operating Junction Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3878MR-ADJ/NOPB#C55383TI · SOIC-8-EP | TI | SOIC-8-EP | 131 | ₹242.20 · 131 in stock | View |
