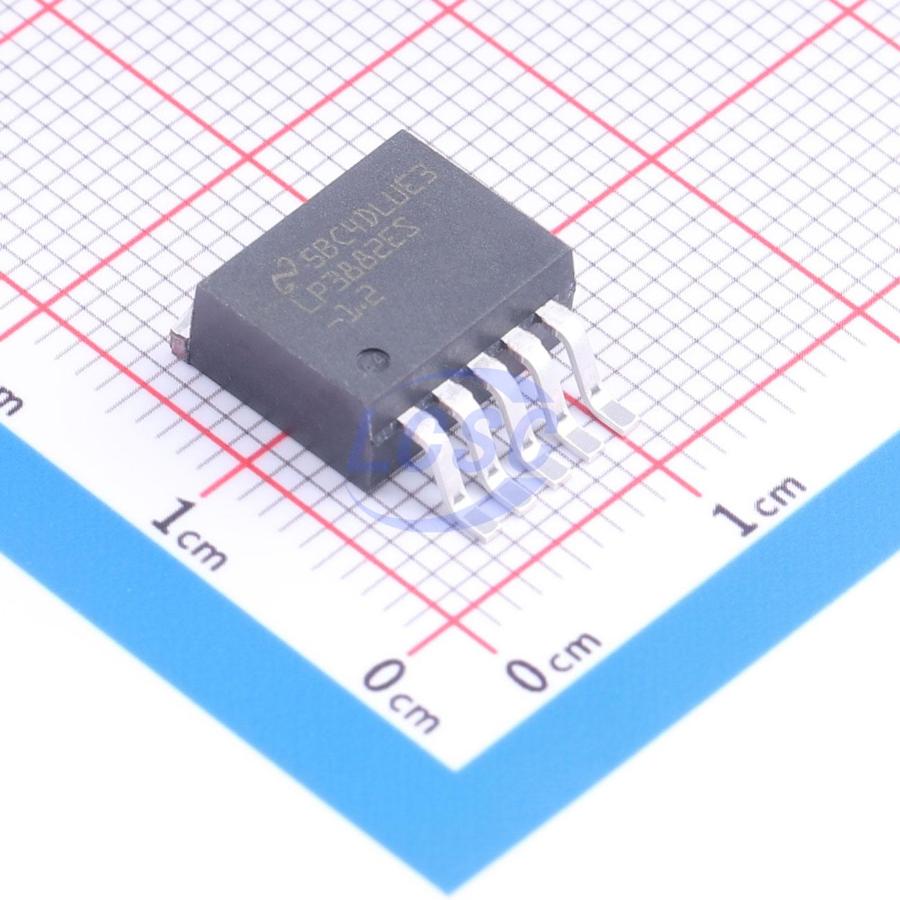

LP3882ESX-1.2/NOPB

The LP3882 is a high current, fast response regulator which can maintain output voltage regulation with minimum input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: Vbias provides voltage to drive the gate of the N-MOS power transistor, while Vin is the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultra low Vin voltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of these devices makes them suitable for use in powering DSP, Microcontroller Core voltages and Switch Mode Power Supply post regulators. The parts are available in TO-220, DDPAK/TO-263 and SO PowerPad packages. Dropout Voltage: 110 mV (typ) at 1.5A load current. Ground Pin Current: 3 mA (typ) at full load. Shutdown Current: 60 nA (typ) when S/D pin is low. Precision Output Voltage: 1.5% room temperature accuracy.

Applications

• DSP Power Supplies
• Server Core and I/O Supplies
• PC Add-in-Cards
• Local Regulators in Set-Top Boxes
• Microcontroller Power Supplies
• High Efficiency Power Supplies
• SMPS Post-Regulators

Key features

• Ultra Low Dropout Voltage (110 mV at 1.5A typ)
• Low Ground Pin Current
• Load Regulation of 0.04%/A
• 60 nA Typical Quiescent Current in Shutdown
• 1.5% Output Accuracy (25°C)
• TO-220, DDPAK/TO-263 and SO PowerPad Packages
• Over Temperature/Over Current Protection
• -40°C to ±125°C Junction Temperature Range
