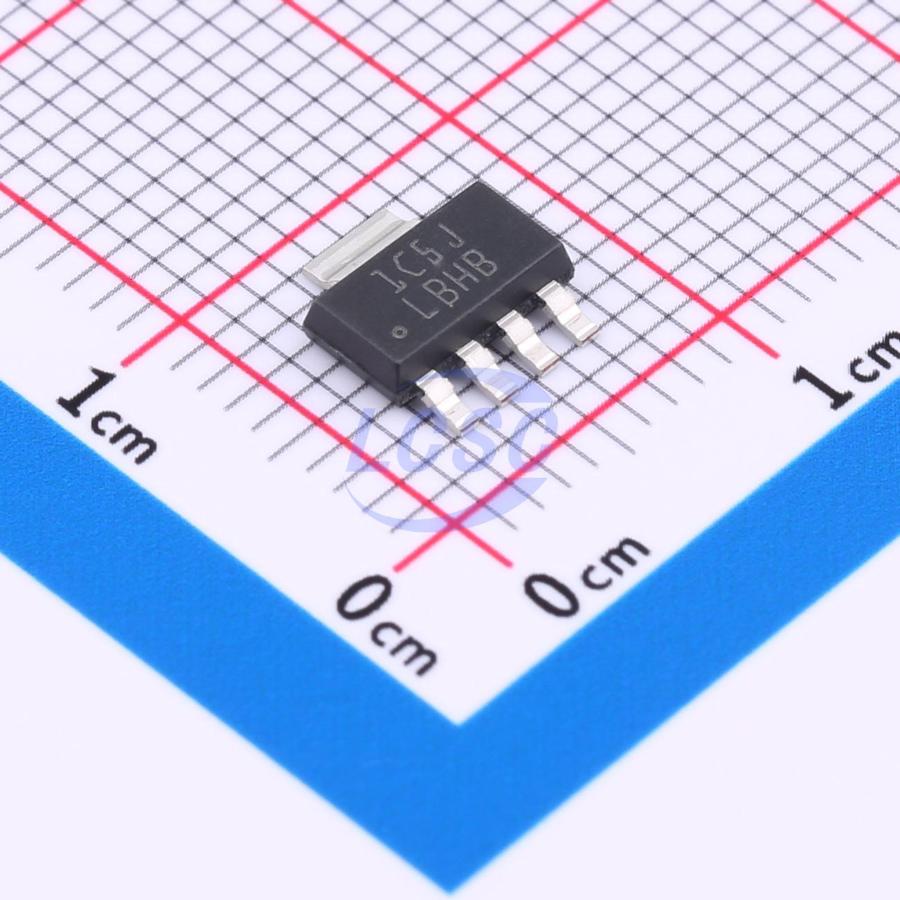

LP3964EMPX-2.5/NOPB
2.5V Positive Fixed SOT-223-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-5ROHS3 CompliantActive
800mA, low-dropout regulator with enable and sensing functions
- Manufacturer
- TI
- Manufacturer part #
- LP3964EMPX-2.5/NOPB
- Store part #
- C2871765
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C2871765
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹394.41 | ₹394.41 |
| 10+ | ₹334.53 | ₹3,345.30 |
| 30+ | ₹299.01 | ₹8,970.30 |
| 100+ | ₹263.08 | ₹26,308.00 |
| 500+ | ₹246.44 | ₹1,23,220.00 |
| 1,000+ | ₹238.92 | ₹2,38,920.00 |
1 × ₹394.41
₹394.41
excl. GST
₹465.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LP3964EMPX-2.5/NOPB
₹394.41 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 7V
- Features
- Enable control;Short Circuit Protection;Reverse-polarity current protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
The LP396x series of fast ultra-low-dropout linear regulators operate from a 2.5-V to 7-V input supply. A wide range of preset output voltage options are available. These ultra-low dropout linear regulators respond very fast to step changes in load which makes them suitable for low-voltage microprocessor applications. The LP3961 and LP3964 are developed on a CMOS process which allows low quiescent current operation independent of output load current, as well as operation under extremely low dropout conditions.
Applications
- Microprocessor Power Supplies
- GTL, GTL+, BTL, and SSTL Bus Terminators
- Power Supplies for DSPs
- SCSI Terminator Post Regulators
- High-Efficiency Linear Regulators
- Battery Chargers
- Other Battery-Powered Applications
Key features
- Input Supply Voltage: 2.5 V to 7 V
- Ultra-Low Dropout Voltage
- Low Ground Pin Current
- Load Regulation of 0.02%
- 15-μA Quiescent Current in Shutdown Mode
- Specified Output Current of 0.8-A
- DC Output Voltage Accuracy ±1.5%
- ERROR Flag Indicates Output Status (LP3961)
- Sense Option Improves Better Load Regulation (LP3964)
- Extremely Low Output Capacitor Requirements
- Overtemperature and Overcurrent Protection
- -40°C to 125°C Junction Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LP3961EMP-2.5/NOPB#C2877960TI · SOT-223-5 | TI | SOT-223-5 | 21 | ₹441.11 · 21 in stock | View | |
 | LP3871EMP-2.5/NOPB#C2860318TI · SOT-223-5 | TI | SOT-223-5 | 20 | ₹380.52 · 20 in stock | View |
| LP3961EMPX-2.5/NOPB#C2862111TI · SOT-223-5 | TI | SOT-223-5 | 48 | ₹352.54 · 48 in stock | View | |
| LP3964EMP-2.5/NOPB#C882782TI · SOT-223-5 | TI | SOT-223-5 | 10 | ₹817.48 · 10 in stock | View | |
| LP38692MP-2.5/NOPB#C2870668TI · SOT-223-5 | TI | SOT-223-5 | 1 | ₹258.86 · 1 in stock | View | |
