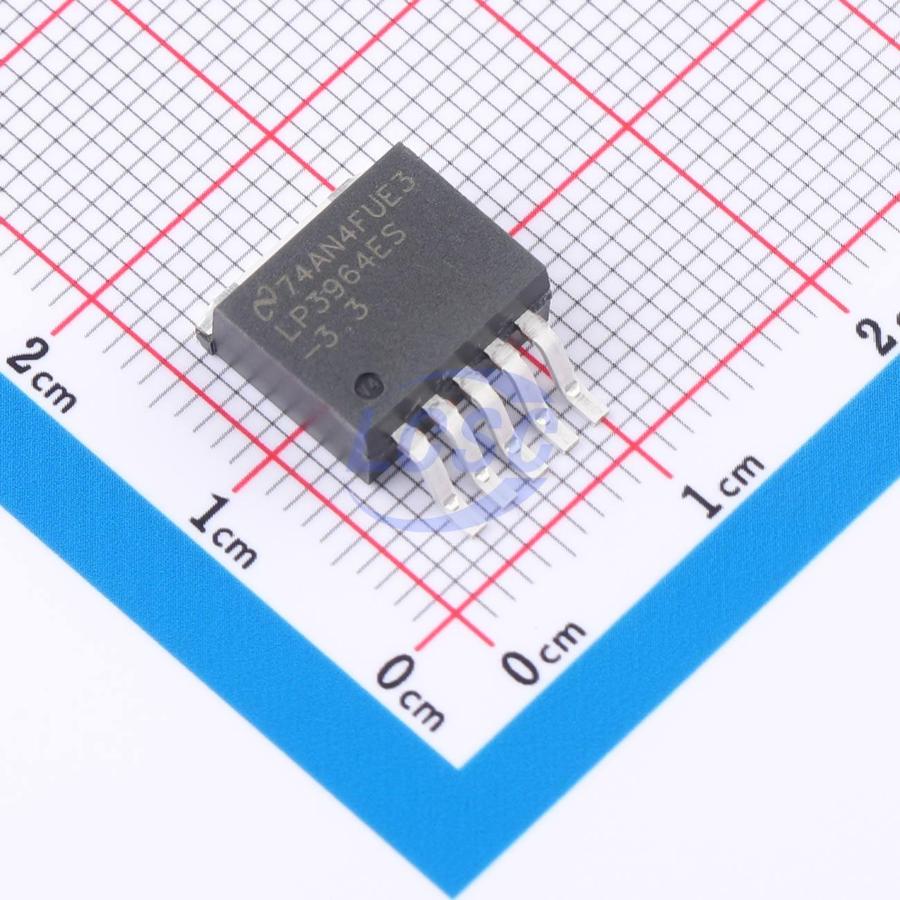

LP3964ESX-3.3/NOPB
3.3V Positive Fixed DDPAK-5(TO-263-5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DDPAK-5(TO-263-5)ROHS3 CompliantActive
800mA, low-dropout regulator with enable and sensing functions
- Manufacturer
- TI
- Manufacturer part #
- LP3964ESX-3.3/NOPB
- Store part #
- C2871712
- Package / case
- DDPAK-5(TO-263-5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C2871712
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹759.84 | ₹759.84 |
| 10+ | ₹742.24 | ₹7,422.40 |
| 30+ | ₹730.30 | ₹21,909.00 |
| 100+ | ₹718.56 | ₹71,856.00 |
1 × ₹759.84
₹759.84
excl. GST
₹896.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
LP3964ESX-3.3/NOPB
₹759.84 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 7V
- Features
- Enable control;Short Circuit Protection;Reverse-polarity current protection;Operating status indication;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.4 g
Overview
The LP396x series of fast ultra-low-dropout linear regulators operate from a 2.5-V to 7-V input supply. A wide range of preset output voltage options are available. These ultra-low dropout linear regulators respond very fast to step changes in load which makes them suitable for low-voltage microprocessor applications. The LP3961 and LP3964 are developed on a CMOS process which allows low quiescent current operation independent of output load current, as well as operation under extremely low dropout conditions.
Applications
- Microprocessor Power Supplies
- GTL, GTL+, BTL, and SSTL Bus Terminators
- Power Supplies for DSPs
- SCSI Terminator Post Regulators
- High-Efficiency Linear Regulators
- Battery Chargers
- Other Battery-Powered Applications
Key features
- Input Supply Voltage: 2.5 V to 7 V
- Ultra-Low Dropout Voltage
- Low Ground Pin Current
- Load Regulation of 0.02%
- 15-μA Quiescent Current in Shutdown Mode
- Specified Output Current of 0.8-A
- DC Output Voltage Accuracy ±1.5%
- ERROR Flag Indicates Output Status (LP3961)
- Sense Option Improves Better Load Regulation (LP3964)
- Extremely Low Output Capacitor Requirements
- Overtemperature and Overcurrent Protection
- -40°C to 125°C Junction Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3964ES-3.3/NOPB#C2872962TI · DDPAK-5(TO-263-5) | TI | DDPAK-5(TO-263-5) | 10 | ₹811.75 · 10 in stock | View |
 | LP3961ESX-3.3/NOPB#C2877322TI · DDPAK-5(TO-263-5) | TI | DDPAK-5(TO-263-5) | 20 | ₹428.65 · 20 in stock | View |
 | TPS7A4533KTTR#C2865625TI · DDPAK-5(TO-263-5) | TI | DDPAK-5(TO-263-5) | 63 | ₹370.11 · 63 in stock | View |
 | LP3871ESX-3.3/NOPB#C2860806TI · DDPAK-5(TO-263-5) | TI | DDPAK-5(TO-263-5) | 10 | ₹285.36 · 10 in stock | View |
 | LP3961ES-3.3/NOPB#C2867557TI · DDPAK-5(TO-263-5) | TI | DDPAK-5(TO-263-5) | 10 | ₹790.28 · 10 in stock | View |
