LOWPOWERDatasheet (PDF)

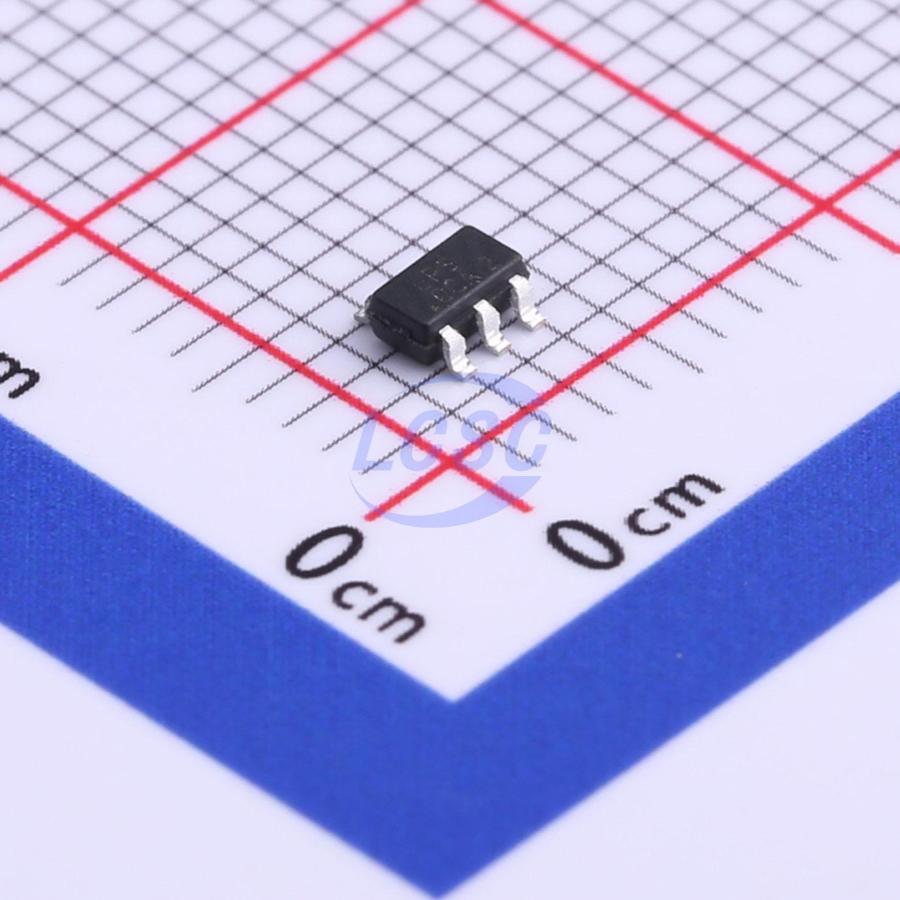

LP3980-18B5F
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Ultra-low noise, Small Package Ultra-Fast CMOS LDO Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3980-18B5F
- Store part #
- C517196
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C517196
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 3,000+ | ₹4.45 | ₹13,350.00 |
| 6,000+ | ₹3.94 | ₹23,640.00 |
| 9,000+ | ₹3.69 | ₹33,210.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3980-18B5F
₹79.50 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.052 g
Overview
The LP3980 is designed for portable RF and wireless applications where performance and space are at a premium. Its performance is optimized for battery-powered systems, delivering ultralow noise and low quiescent current. In dropout, the regulator's ground current increases only slightly, further extending battery life. The LP3980 also works with low-ESR ceramic capacitors, reducing board space required for power supply applications — a critical advantage in handheld wireless devices. In shutdown mode, current consumption is less than 0.01μA, with a fast startup time of less than 50μs. Additional features include ultralow dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Portable media players/MP3 players
- Cellular phones and smartphones
- LCD monitors
- Digital camera sensors
- Wireless network adapters
Key features
- 1.6V to 5.5V input voltage range
- Low dropout: 240mV at 300mA, 3.3V output
- 300mA output current
- High PSRR: -76dB at 1KHz
- Standby current <1μA in shutdown
- Ultra-fast line/load transient response
- Current limiting protection
- Thermal shutdown protection
- Available in SOT23-5, SOT23, TDFN-4 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3981-18B5F#C517237LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 790 | ₹6.91 · 790 in stock | View |
 | LP3984-18B5F#C517243LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 2,640 | ₹3.39 · 2,640 in stock | View |
 | LP3982S-18B5F#C18198951LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 560 | ₹8.41 · 560 in stock | View |
 | LP3981H-18B5F#C42460077LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 5,450 | ₹5.72 · 5,450 in stock | View |
 | LP3992-18B5F#C324569LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 2,390 | ₹5.73 · 2,390 in stock | View |
