LOWPOWERDatasheet (PDF)

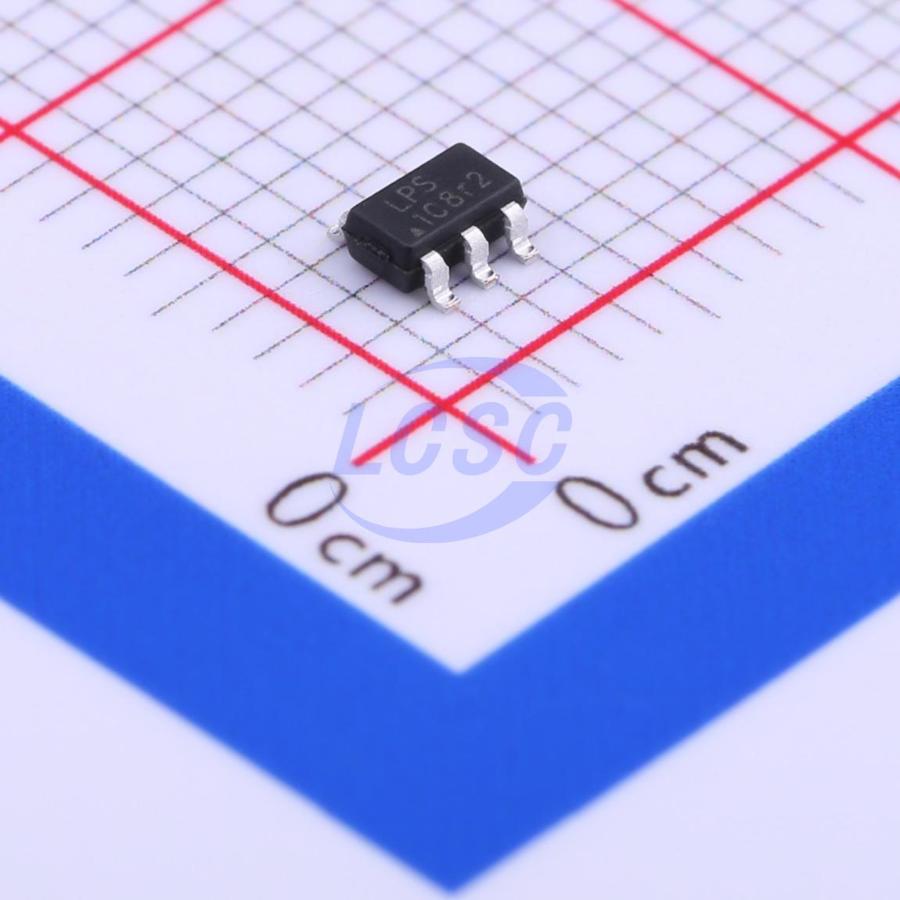

LP3992-18B5F
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA, Ultra-low noise, Small Package Ultra-Fast CMOS LDO Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3992-18B5F
- Store part #
- C324569
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C324569
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.73 | ₹57.30 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹4.01 | ₹1,203.00 |
| 3,000+ | ₹3.59 | ₹10,770.00 |
| 6,000+ | ₹3.24 | ₹19,440.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹5.73
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3992-18B5F
₹57.30 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.5V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.066 g
Overview
The LP3992 is designed for portable RF and wireless applications with demanding performance and space requirements. The LP3992 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. The LP3992 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3992 consumes less than 0.01uA in shutdown mode and has fast turn-on time less than 50uS. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. It is available in the 5-lead of SOT23-5 and TSOT23-5 packages.
Applications
- Portable Media Players/MP3 players
- Cellular and Smart mobile phone
- LCD
- DSC
- Sensor
- Wireless Card
Key features
- Ultra-Low-Noise for RF Application
- 2.5V - 5.5V Input Voltage Range
- Low Dropout: 220mV @ 300mA
- 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V and 5V Fixed
- 300mA Output Current
- High PSSR: -76dB at 1KHz
- <0.01uA Standby Current When Shutdown
- Available in SOT23-5 and TSOT23-5 Package
- TTL-Logic-Controlled Shutdown Input
- Ultra-Fast Response in Line/Load transient
- Current Limiting and Thermal Shutdown Protection
- Quick start-up (typically 50uS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3981-18B5F#C517237LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 790 | ₹6.91 · 790 in stock | View |
 | LP3984-18B5F#C517243LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 2,640 | ₹3.39 · 2,640 in stock | View |
 | LP3987H-18B5F#C324568LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 3,580 | ₹9.38 · 3,580 in stock | View |
 | LP3980-18B5F#C517196LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 2,440 | ₹7.95 · 2,440 in stock | View |
 | LP3982S-18B5F#C18198951LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 560 | ₹8.41 · 560 in stock | View |
