LOWPOWERDatasheet (PDF)

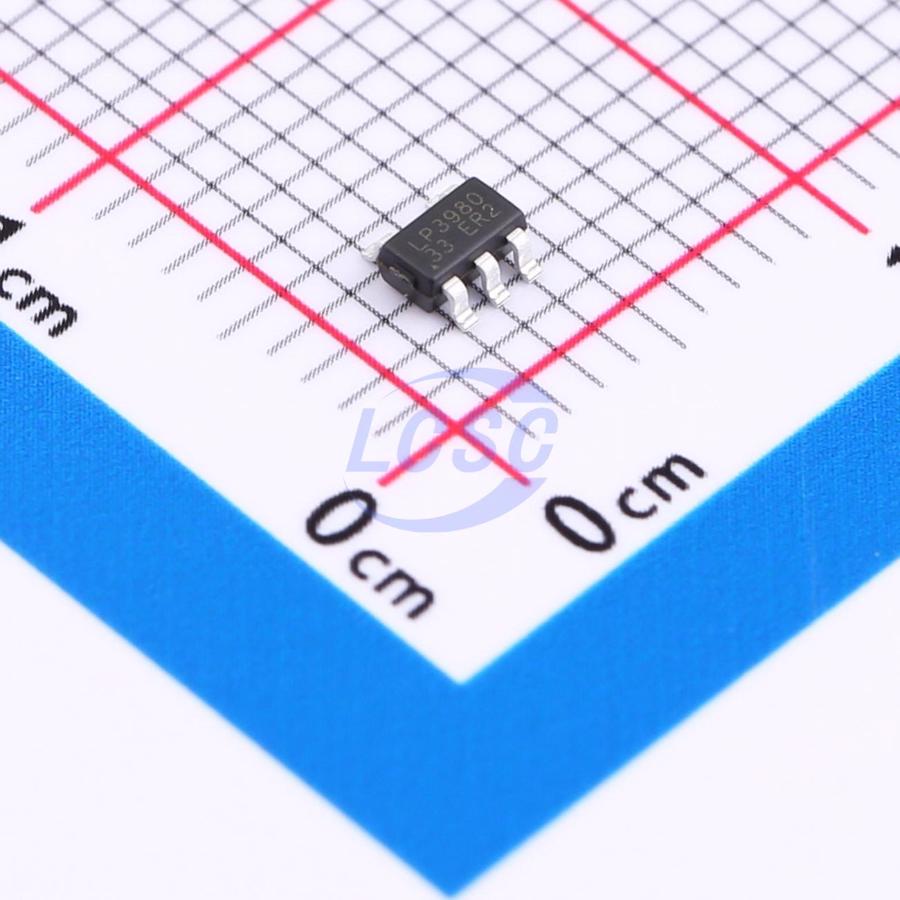

LP3980H-33B5F
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA, Ultra-low noise, Small Package Ultra-Fast CMOS LDO Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3980H-33B5F
- Store part #
- C517222
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,520 in stock
#C517222
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.12 | ₹81.20 |
| 100+ | ₹6.40 | ₹640.00 |
| 300+ | ₹5.54 | ₹1,662.00 |
| 3,000+ | ₹4.90 | ₹14,700.00 |
| 6,000+ | ₹4.38 | ₹26,280.00 |
| 9,000+ | ₹4.13 | ₹37,170.00 |
10 × ₹8.12
₹81.20
excl. GST
₹95.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3980H-33B5F
₹81.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The LP3980 is designed for portable RF and wireless applications demanding performance and space requirements. The LP3980 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The LP3980 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3980 consumes less than 0.01μA in shutdown mode and has fast turn-on time less than 50μs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Portable Media Players/MP3 players
- Cellular and Smart mobile phone
- LCD
- DSC
- Sensor
- Wireless Card
Key features
- 1.6V - 5.5V Input Voltage Range
- Low Dropout: 240mV @ 300mA
- 500mA Output Current
- High PSSR: -76dB at 1KHz
- < 1uA Standby Current When Shutdown
- Ultra-Fast Response in Line/Load transient
- Current Limiting
- Thermal Shutdown Protection
- Available in SOT23-5/SOT23/TDFN-4 Package
