LOWPOWERDatasheet (PDF)

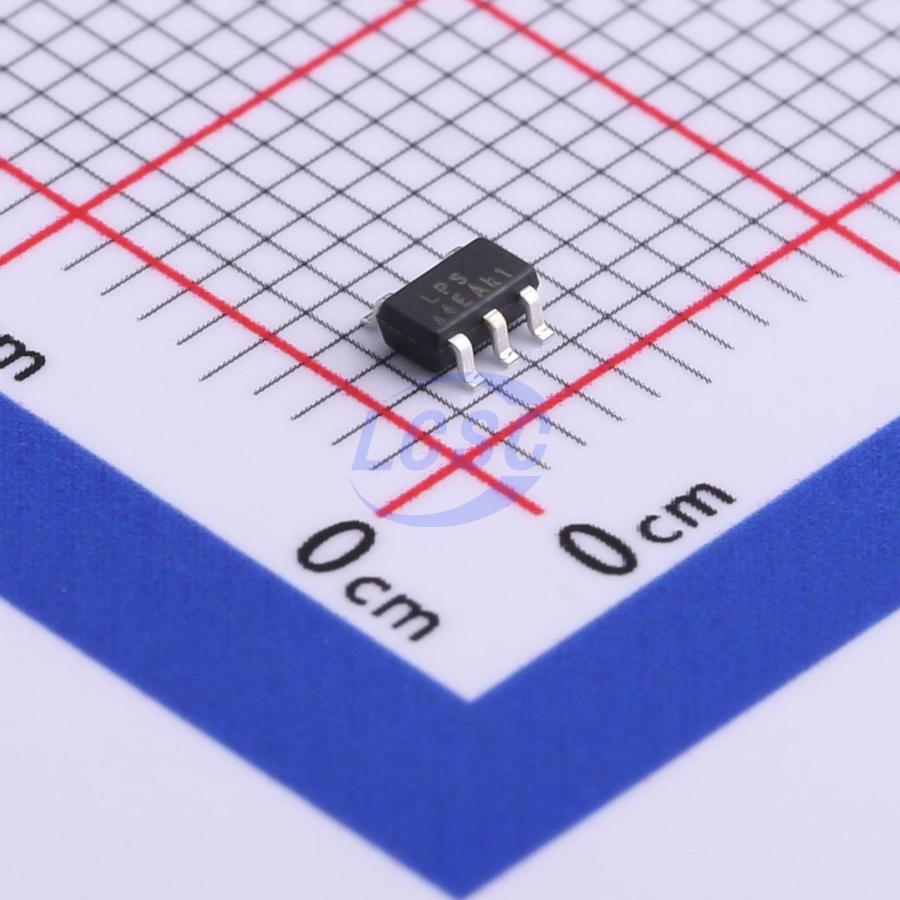

LP3984H-33B5F
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3984H-33B5F
- Store part #
- C517247
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C517247
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.24 | ₹72.40 |
| 100+ | ₹5.66 | ₹566.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹4.30 | ₹12,900.00 |
| 6,000+ | ₹3.82 | ₹22,920.00 |
| 9,000+ | ₹3.60 | ₹32,400.00 |
10 × ₹7.24
₹72.40
excl. GST
₹85.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3984H-33B5F
₹72.40 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
The LP3984H is designed for portable RF and wireless applications with demanding performance and space requirements. The LP3984H performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. The LP3984H also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3984H consumes less than 1μA in shutdown mode. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. It is available in the 5-lead of SOT23-5 packages.
Applications
- Portable Media Players/MP3 players
- Cellular and Smart mobile phone
- LCD Source Semiconductor
- DSC Sensor
- Wireless Card
Key features
- Ultra-Low-Noise for RF Application
- 2.5V - 5.5V Input Voltage Range
- Low Dropout: 300mV @ 300mA
- 500mA Output Current
- High PSRR: -68dB at 1KHz
- 1uA Standby Current When Shutdown
- Available in SOT23-5 Package
- TTL-Logic-Controlled Shutdown Input
- Ultra-Fast Response in Line/Load transient
- Current Limiting and Thermal Shutdown Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3987H-33B5F#C517256LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 3,120 | ₹8.11 · 3,120 in stock | View |
 | LP3980H-33B5F#C517222LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 1,520 | ₹8.12 · 1,520 in stock | View |
 | LP3980S-33B5F#C2918353LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | On request | ₹7.37 · 0 in stock | View |
