LOWPOWERDatasheet (PDF)

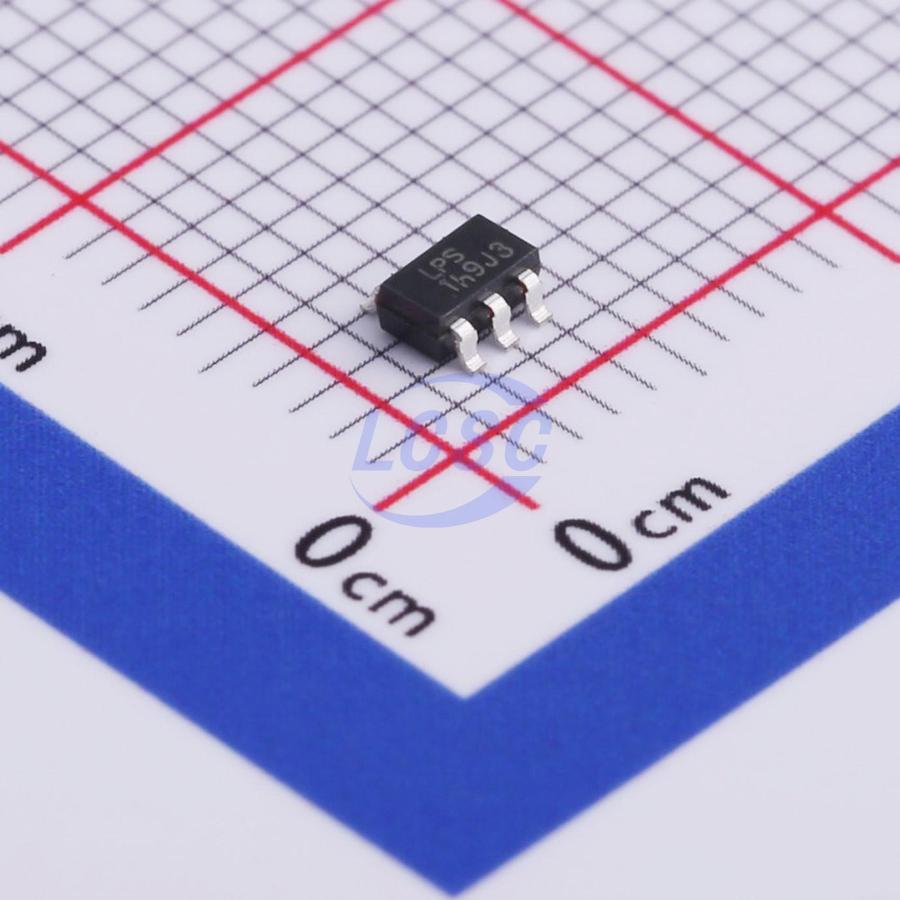

LP3987H-28B5F
2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
600mA, Ultra-low noise, Ultra-Fast CMOS LDO Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3987H-28B5F
- Store part #
- C517254
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C517254
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.94 | ₹79.40 |
| 100+ | ₹6.27 | ₹627.00 |
| 300+ | ₹5.44 | ₹1,632.00 |
| 3,000+ | ₹4.82 | ₹14,460.00 |
| 6,000+ | ₹4.33 | ₹25,980.00 |
| 9,000+ | ₹4.07 | ₹36,630.00 |
10 × ₹7.94
₹79.40
excl. GST
₹93.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3987H-28B5F
₹79.40 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
The LP3987H is designed for portable RF and wireless applications with demanding performance and space requirements. The LP3987H performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The LP3987H also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3987H consumes less than 0.01μA in shutdown mode and has fast turn-on time less than 20µs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. It is available in the 5-lead of SOT23-5 packages.
Applications
- Portable Media Players/MP3 players
- Cellular and Smart mobile phone
- Sensor Module, RF Module
Key features
- Ultra-Low-Noise for RF Application
- 2.5V - 6.0V Input Voltage Range
- Low Dropout: 360mV @ 600mA
- High PSSR: -65dB at 1KHz
- <0.01uA Standby Current When Shutdown
- Ultra-Fast Response in Line/Load transient
- Current Limiting and Thermal Shutdown Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3982H-28B5F#C47345749LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 3,000 | ₹7.45 · 3,000 in stock | View |
