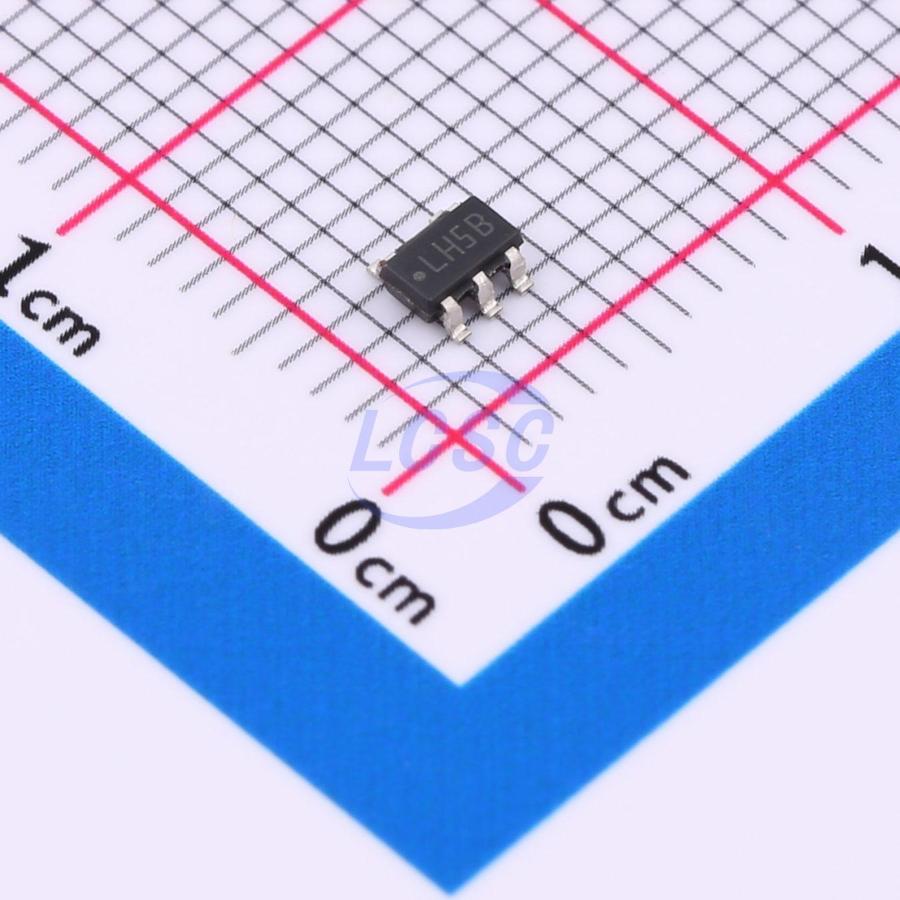

LP3988IMFX-3.3/NOPB

The LP3988 is a 150-mA low dropout regulator designed specially to meet requirements of portable battery applications. The LP3988 is designed to work with space-saving, small ceramic capacitors. The LP3988 features a Power Good (PG) output that indicates a faulty output condition. The device is ideal for mobile phone and similar battery-powered wireless applications. It provides up to 150 mA output current from a 2.5-V to 6-V input, consuming less than 1 μA in disable mode and has fast turnon time less than 200 μs. The LP3988 device's performance is optimized for battery-powered systems to deliver low noise, extremely low dropout voltage, and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. Power supply rejection is better than 60 dB at low frequencies and starts to roll off at 10 kHz. High power-supply rejection is maintained down to lower input-voltage levels common to battery-operated circuits. The LP3988 is available in a 5-pin SOT-23 package and a 5-pin thin DSBGA package. Performance is specified for -40°C to +125°C temperature range.

Applications

• CDMA Cellular Handsets
• Wideband CDMA Cellular Handsets
• GSM Cellular Handsets
• Portable Information Appliances Tiny 3.3 V ±5% to 2.85 V, 150-mA Converter

Key features

• Input Voltage Range: 2.5 V to 6 V
• Output Current: 150 mA
• PSRR at 10 kHz: 40 dB
• Quiescent Current When Shut Down: ≤1 μA
• Fast Turnon Time: 100 μs (Typical)
• Dropout With 150-mA load: 80 mV (Typical)
• Junction Temperature Range for Operation: -40°C to +125°C
• Power-Good Flag Output
• Logic Controlled Enable
• Thermal Shutdown and Short-Circuit Current Limit
• Stable with Ceramic and High-Quality Tantalum Capacitors
