TIDatasheet (PDF)

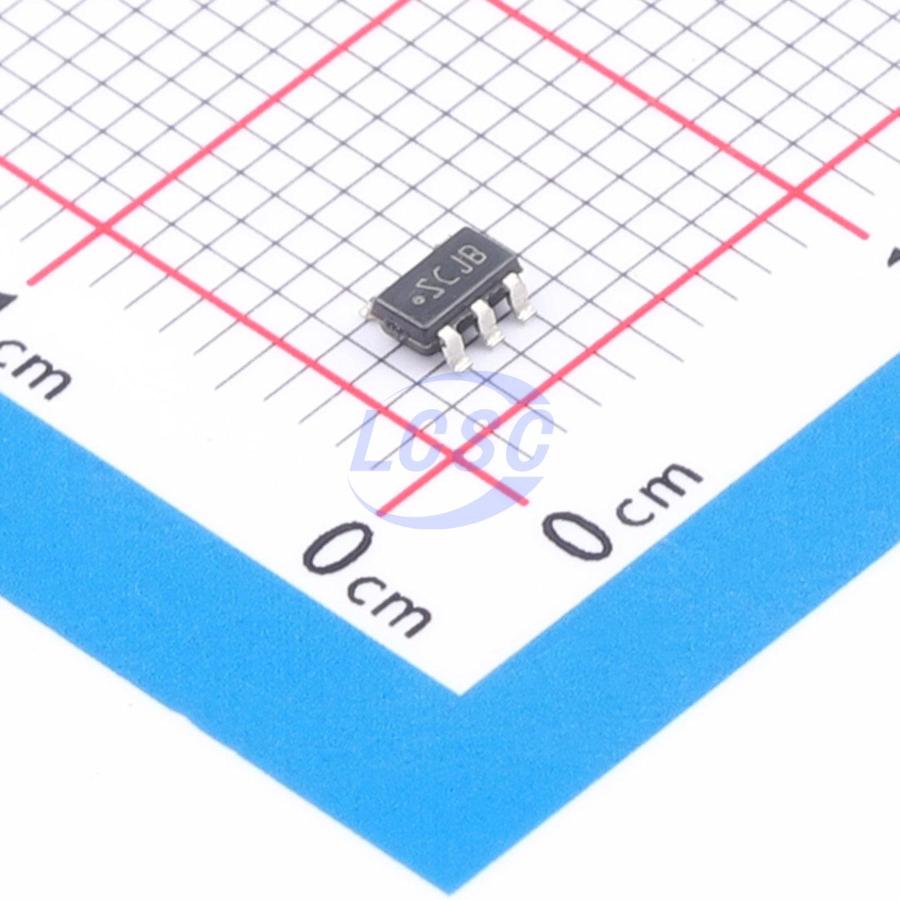

LP3990MF-2.5/NOPB
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, low IQ, low dropout regulator with enable functionality and low output voltage
- Manufacturer
- TI
- Manufacturer part #
- LP3990MF-2.5/NOPB
- Store part #
- C2860405
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C2860405
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.36 | ₹77.36 |
| 10+ | ₹75.62 | ₹756.20 |
| 30+ | ₹74.54 | ₹2,236.20 |
| 100+ | ₹73.24 | ₹7,324.00 |
1 × ₹77.36
₹77.36
excl. GST
₹91.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP3990MF-2.5/NOPB
₹77.36 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 43uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 150mA
- Features
- Enable control;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.213 g
Overview
The LP3990 regulator is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low-noise, and low-quiescent current. The LP3990 will provide a 0.8 - V output from the low input voltage of ₂V at up to a 150-mA load current. When switched into shutdown mode via a logic signal at the enable pin (EN), the power consumption is reduced to virtually zero. The LP3990 is designed to be stable with space - saving ceramic capacitors with values as low as 1 μF. Performance is specified for a -40°C to 125°C junction temperature range.
Applications
- Cellular Handsets
- Hand-Held Information Appliances
Key features
- 1% Voltage Accuracy at Room Temperature
- Stable with Ceramic Capacitor
- Logic Controlled Enable
- No Noise Bypass Capacitor Required
- Thermal-Overload and Short-Circuit Protection
- Input Voltage Range, ₂V to 6 V
- Output Voltage Range, 0.8 V to 3.3 V
- Output Current, 150 mA
- Output Stable - Capacitors, 1 μF
- Virtually Zero IQ (Disabled), <10 nA
- Very Low IQ (Enabled), 43 μA
- Low Output Noise, 150 μV RMS
- PSRR, 55 dB at 1 kHz
- Fast Start-Up, 105 μs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6219B252MR#C34174TOREX · SOT-23-5 | TOREX | SOT-23-5 | 732 | ₹70.03 · 732 in stock | View |
 | SSP7615-25M5R#C3011517Siproin · SOT-23-5 | Siproin | SOT-23-5 | 455 | ₹12.79 · 455 in stock | View |
 | NCP699SN25T1G#C242415onsemi · TSOP-5 | onsemi | TSOP-5 | 1 | ₹38.25 · 1 in stock | View |
 | CJ6330B25M#C17703078JSCJ · SOT-23-5L | JSCJ | SOT-23-5L | 1,565 | ₹17.79 · 1,565 in stock | View |
 | AP2205-25W5-7#C5553037DIODES · SOT-25 | DIODES | SOT-25 | 100 | ₹32.55 · 100 in stock | View |
