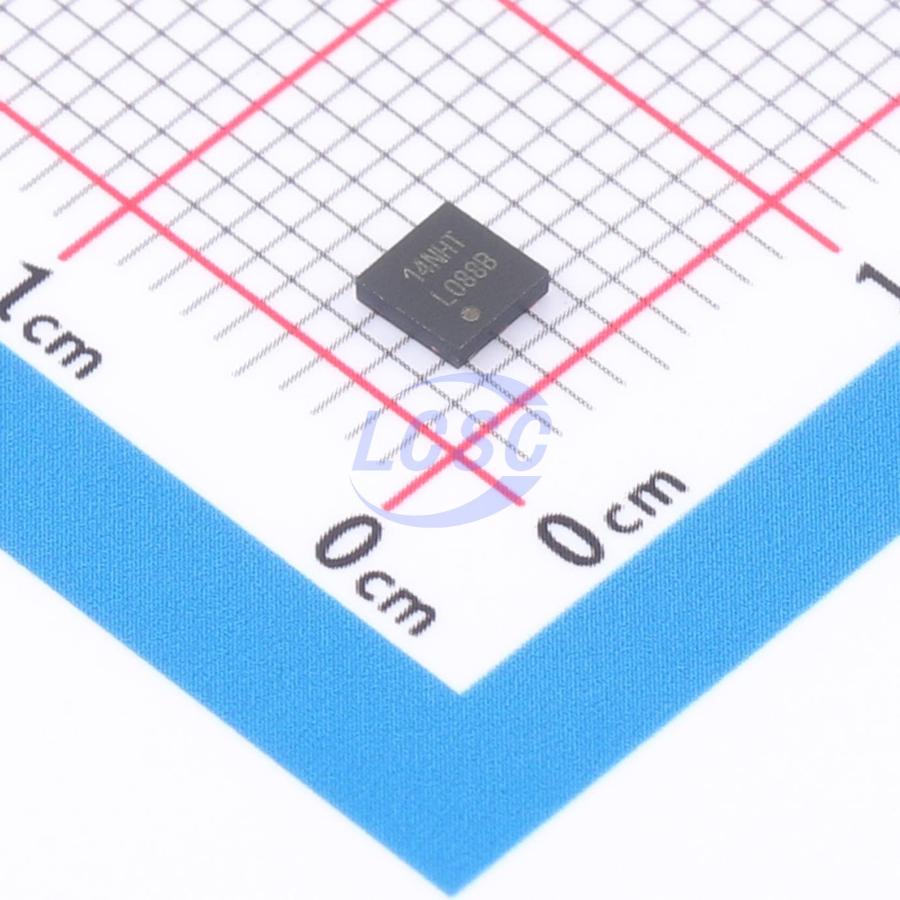

LP3990SD-1.8/NOPB
1.8V Positive Fixed WSON-6-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WSON-6-EP(3x3)ROHS3 CompliantActive
150mA, low IQ, low dropout regulator with enable functionality and low output voltage
- Manufacturer
- TI
- Manufacturer part #
- LP3990SD-1.8/NOPB
- Store part #
- C2862217
- Package / case
- WSON-6-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2862217
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.51 | ₹129.51 |
| 10+ | ₹126.57 | ₹1,265.70 |
| 30+ | ₹124.48 | ₹3,734.40 |
| 100+ | ₹122.59 | ₹12,259.00 |
1 × ₹129.51
₹129.51
excl. GST
₹152.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP3990SD-1.8/NOPB
₹129.51 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 43uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
The LP3990 regulator is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low-noise, and low-quiescent current. The LP3990 will provide a 0.8 - V output from the low input voltage of ₂V at up to a 150-mA load current. When switched into shutdown mode via a logic signal at the enable pin (EN), the power consumption is reduced to virtually zero. The LP3990 is designed to be stable with space - saving ceramic capacitors with values as low as 1 μF. Performance is specified for a -40°C to 125°C junction temperature range.
Applications
- Cellular Handsets
- Hand-Held Information Appliances
Key features
- 1% Voltage Accuracy at Room Temperature
- Stable with Ceramic Capacitor
- Logic Controlled Enable
- No Noise Bypass Capacitor Required
- Thermal-Overload and Short-Circuit Protection
- Input Voltage Range, ₂V to 6 V
- Output Voltage Range, 0.8 V to 3.3 V
- Output Current, 150 mA
- Output Stable - Capacitors, 1 μF
- Virtually Zero IQ (Disabled), <10 nA
- Very Low IQ (Enabled), 43 μA
- Low Output Noise, 150 μV RMS
- PSRR, 55 dB at 1 kHz
- Fast Start-Up, 105 μs
