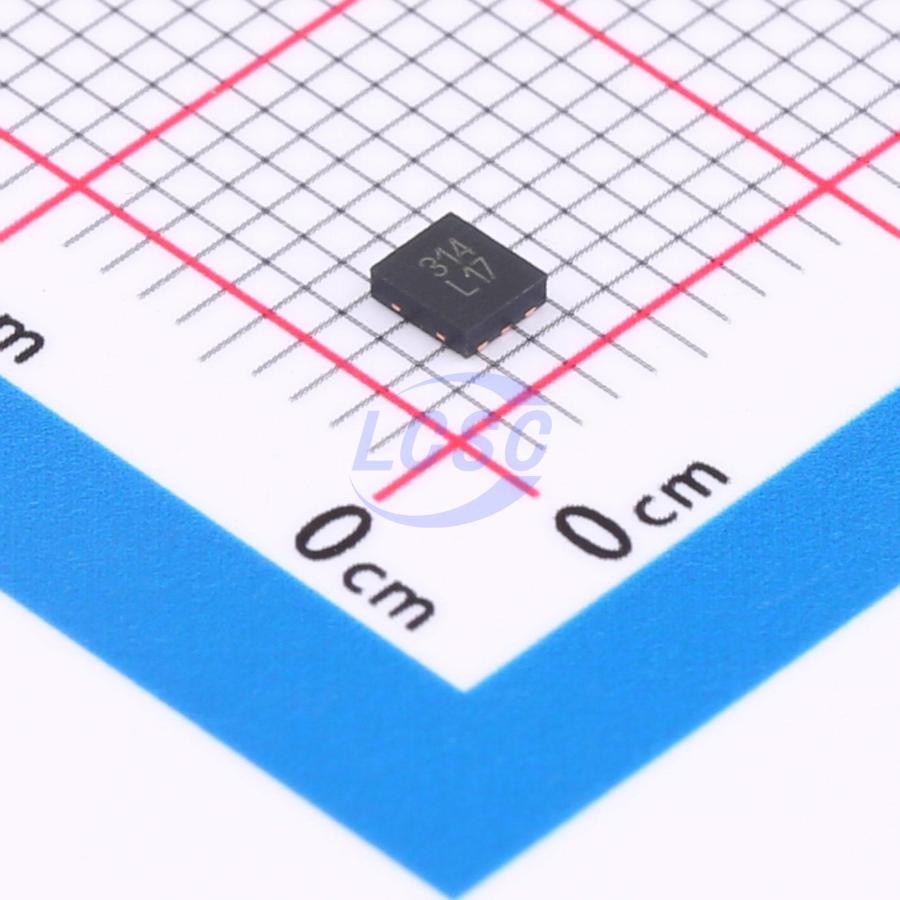

LP5900SDX-1.8/NOPB
1.8V Positive Fixed WSON-6-EP(2.2x2.5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WSON-6-EP(2.2x2.5)ROHS3 CompliantActive
150mA, low-noise, low IQ, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP5900SDX-1.8/NOPB
- Store part #
- C2876269
- Package / case
- WSON-6-EP(2.2x2.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,636 in stock
#C2876269
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.83 | ₹100.83 |
| 10+ | ₹81.75 | ₹817.50 |
| 30+ | ₹72.21 | ₹2,166.30 |
| 100+ | ₹62.67 | ₹6,267.00 |
| 500+ | ₹57.03 | ₹28,515.00 |
| 1,000+ | ₹54.22 | ₹54,220.00 |
1 × ₹100.83
₹100.83
excl. GST
₹118.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
LP5900SDX-1.8/NOPB
₹100.83 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.068 g
Overview
The LP5900 is an LDO capable of supplying 150-mA output current. Designed to meet the requirements of RF and analog circuits, the LP5900 device provides low noise, high PSRR, low quiescent current, and low line transient response figures. Using new innovative design techniques the LP5900 offers class-leading device noise performance without a noise bypass capacitor. The device is designed to work with 0.47-μF input and output ceramic capacitors (no bypass capacitor required). The device is available in a DSBGA (YZR) package and a WSON package; the device is also available in an extremely thin DSBGA (YPF) package.
Applications
- Cellular Phones
- PDA Handsets
- Wireless LAN Devices
Key features
- Input Voltage Range, 2.5 V to 5.5 V
- Output Voltage Range, 1.5 V to 4.5 V
- Stable with 0.47-μF Ceramic Input and Output Capacitors
- No Noise Bypass Capacitor Required
- Logic Controlled Enable
- Thermal-Overload and Short-Circuit Protection
- -40°C to 125°C Junction Temperature Range for Operation
- Output Current, 150 mA
- Low Output Voltage Noise, 6.5 μV RMS
- PSRR, 75 dB at 1 kHz
- Output Voltage Tolerance, ±2%
- Virtually Zero IQ (Disabled), <1 μA
- Very Low IQ (Enabled), 25 μA
- Start-up Time, 150 μs
- Low Dropout, 80 mV Typ.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP5900SD-1.8/NOPB#C201700TI · WSON-6-EP(2.2x2.5) | TI | WSON-6-EP(2.2x2.5) | On request | ₹53.20 · 0 in stock | View |
