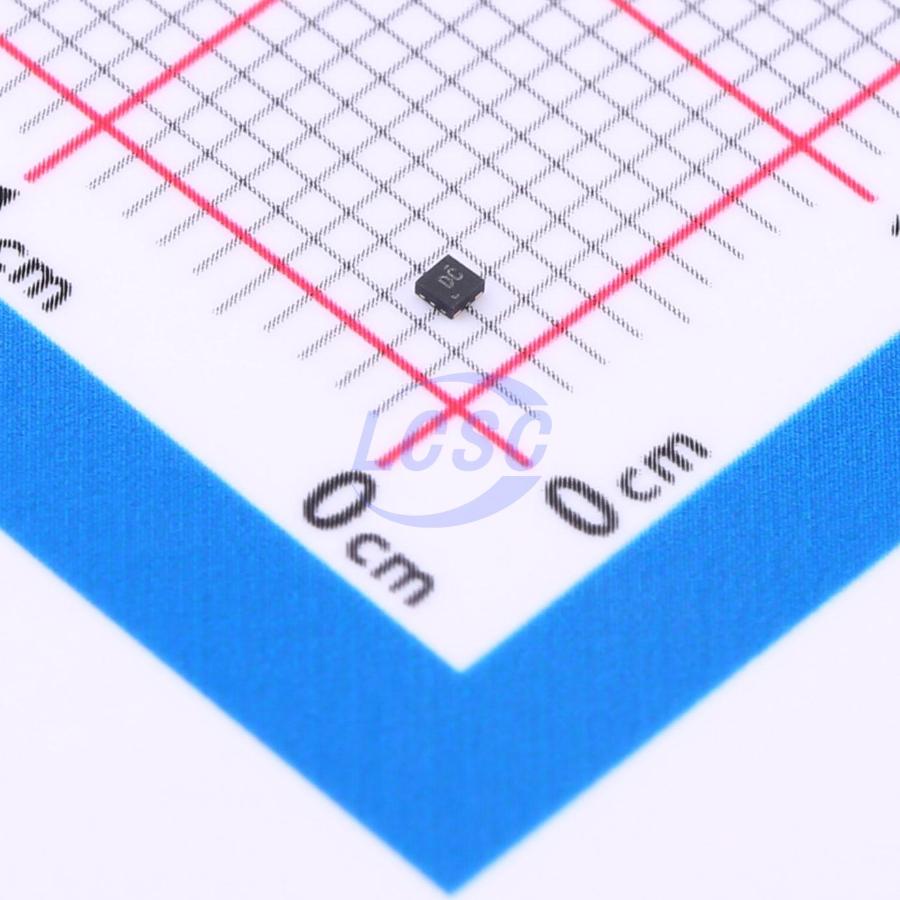

LP590745QDQNRQ1
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS3 CompliantActive
Low IQ, enabled functionality automotive-grade 250mA, low-noise, high PSRR, ultra-low dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- LP590745QDQNRQ1
- Store part #
- C2862555
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3 in stock
#C2862555
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.46 | ₹57.46 |
| 10+ | ₹44.66 | ₹446.60 |
| 30+ | ₹39.19 | ₹1,175.70 |
| 100+ | ₹32.28 | ₹3,228.00 |
| 500+ | ₹29.24 | ₹14,620.00 |
| 1,000+ | ₹27.41 | ₹27,410.00 |
1 × ₹57.46
₹57.46
excl. GST
₹67.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP590745QDQNRQ1
₹57.46 for 1 + GST
Specifications
- Output Voltage
- 4.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
Overview
The LP5907-Q1 is a low-noise LDO capable of delivering 250mA output current. Designed to meet RF and analog circuit requirements, it offers low noise, high PSRR, low quiescent current, and low line/load transient response. Using innovative design techniques, the LP5907-Q1 achieves excellent noise performance without a noise bypass capacitor and supports remote placement of the output capacitor. The device operates with 1μF input and 1μF output ceramic capacitors, eliminating the need for a separate noise bypass capacitor. Fixed output voltage ranges from 1.2V to 4.5V in 25mV steps.
Applications
- ADAS cameras and radar
- Automotive infotainment systems
- In-vehicle communication and navigation systems
Key features
- Automotive-qualified per AEC-Q100 with the following results:
- Device temperature grade 1: ambient operating temperature range –40°C to 125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C6
- Stable performance with 1μF ceramic input and output capacitors
- Input voltage range: 2.2V to 5.5V
- Output voltage range: 1.2V to 4.5V
- Remote output capacitor placement support
- Thermal overload and short-circuit protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP5907SNX-4.5/NOPB#C2876063TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 186 | ₹81.75 · 186 in stock | View |
| TCR3DM45,LF(SE#C7067132TOSHIBA · DFN-4(1x1) | TOSHIBA | DFN-4(1x1) | 52 | ₹50.29 · 52 in stock | View | |
| GP2101-45D4R#C48997302GUQIAO Microelectronics · DFN-4(1x1) | GUQIAO Microelectronics | DFN-4(1x1) | On request | ₹7.75 · 0 in stock | View | |
| NCP161AMX450TBG#C892181onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | On request | ₹51.94 · 0 in stock | View | |
| NCP161BMX450TBG#C892192onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | On request | ₹9.25 · 0 in stock | View | |
