MSKSEMI

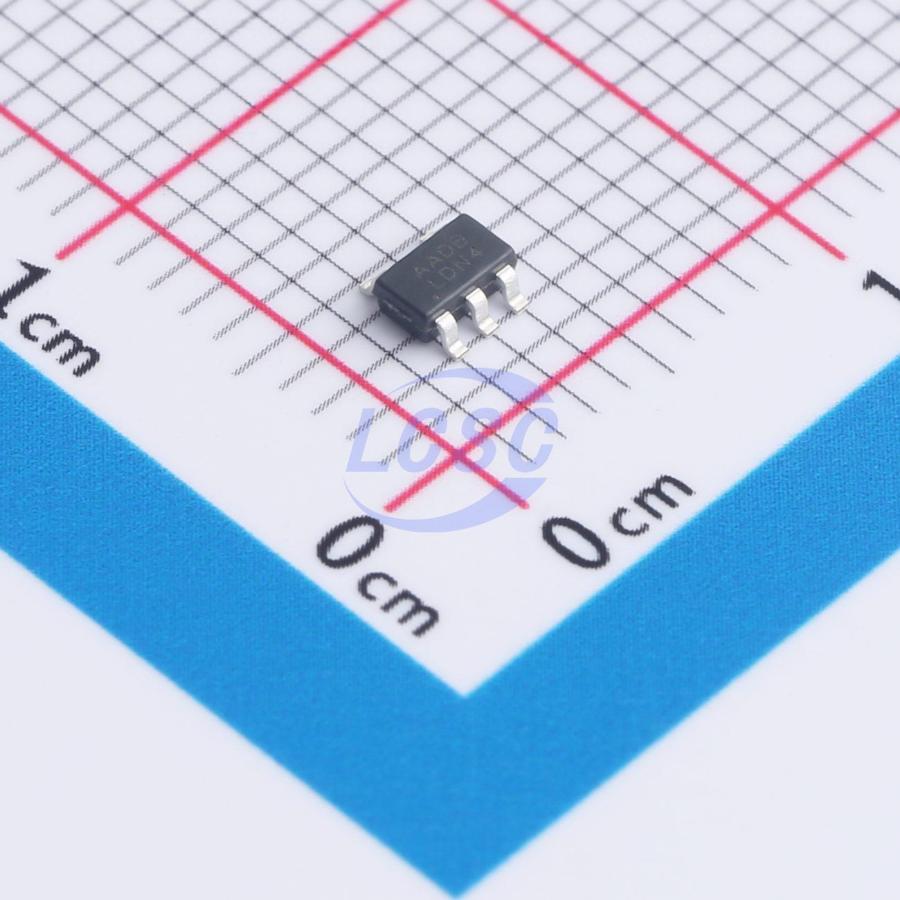

LP5907MFX-1.2/NOPB(MS)

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5

SOT-23-5RoHSActive

Low quiescent current, wide input voltage range linear regulator

Manufacturer: MSKSEMI
Manufacturer part #: LP5907MFX-1.2/NOPB(MS)
Store part #: C20627149
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,825 in stock

#C20627149

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹25.73	₹128.65
50+	₹20.27	₹1,013.50
150+	₹17.93	₹2,689.50
500+	₹15.00	₹7,500.00
3,000+	₹13.16	₹39,480.00
6,000+	₹12.38	₹74,280.00

Quantity (min 5, multiples of 5)

5 × ₹25.73

₹128.65

excl. GST

₹151.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP5907MFX-1.2/NOPB(MS)

₹128.65 for 5 + GST

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

The LP5907MFX-XX/NOPB(MS) series is a family of LDO regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low power consumption, and compact packaging. With a quiescent current as low as 2µA, the LP5907MFX-XX/NOPB(MS) is particularly well-suited for battery-powered and long-term standby applications, helping to reduce system standby power consumption and effectively extend both standby time and battery life. An EN pin version is available for the LP5907MFX-XX/NOPB(MS). Pulling the EN pin low activates shutdown mode, in which the quiescent current drops to as low as 100nA (typical). The LP5907MFX-XX/NOPB(MS) series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and output load current range of 0mA to 300mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtop computers, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2μA quiescent current (no load)
±2% output voltage accuracy
300mA output current capability
100nA shutdown current (optional version)
Wide input voltage range: 1.2V to 5.5V
Low dropout: 0.18V (ΔVO = 3.3V / Io = 300mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Ceramic or tantalum capacitor compatible
Current limiting protection
Over-temperature protection
