MSKSEMI

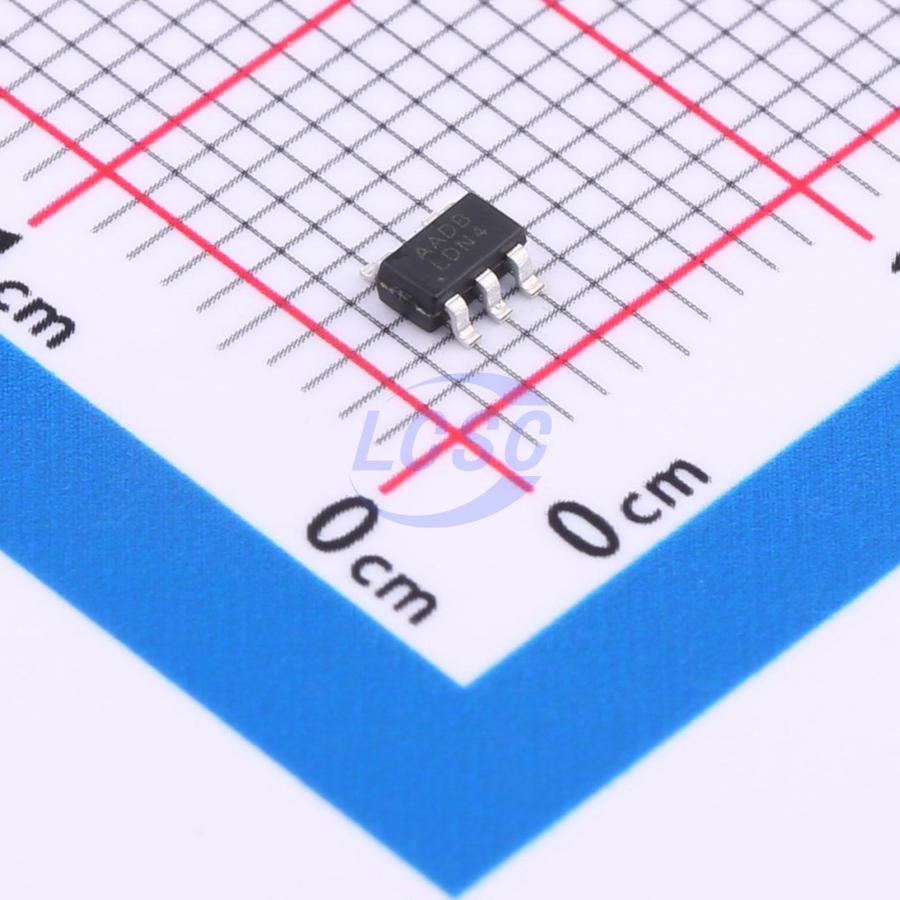

TLV70212DBVR(MS)

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5

SOT-23-5RoHSActive

Low Dropout (LDO) Converter

Manufacturer: MSKSEMI
Manufacturer part #: TLV70212DBVR(MS)
Store part #: C20627170
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,375 in stock

#C20627170

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹8.37	₹41.85
50+	₹6.62	₹331.00
150+	₹5.74	₹861.00
500+	₹5.08	₹2,540.00
3,000+	₹4.55	₹13,650.00
6,000+	₹4.30	₹25,800.00

Quantity (min 5, multiples of 5)

5 × ₹8.37

₹41.85

excl. GST

₹49.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV70212DBVR(MS)

₹41.85 for 5 + GST

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The TLV702XXDBVR(MS) series is a family of low-dropout (LDO) regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low quiescent current, and compact packaging. With a quiescent current as low as 2μA, the TLV702XXDBVR(MS) is particularly well-suited for battery-powered and long-term standby applications, helping to reduce system standby power consumption and effectively extend standby time and battery life. The TLV702XXDBVR(MS) is available in a version with an EN enable pin; pulling EN low activates shutdown mode, in which quiescent current drops to as low as 100nA (typical). The TLV702XXDBVR(MS) series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and throughout the entire output load current range of 0mA to 300mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtop computers, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2μA quiescent current (no load)
±2% output voltage accuracy
300mA output current capability
100nA shutdown current (optional version)
Wide input voltage range: 1.2V to 5.5V
Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Ceramic or tantalum capacitor compatible
Current limiting protection
Over-temperature protection
