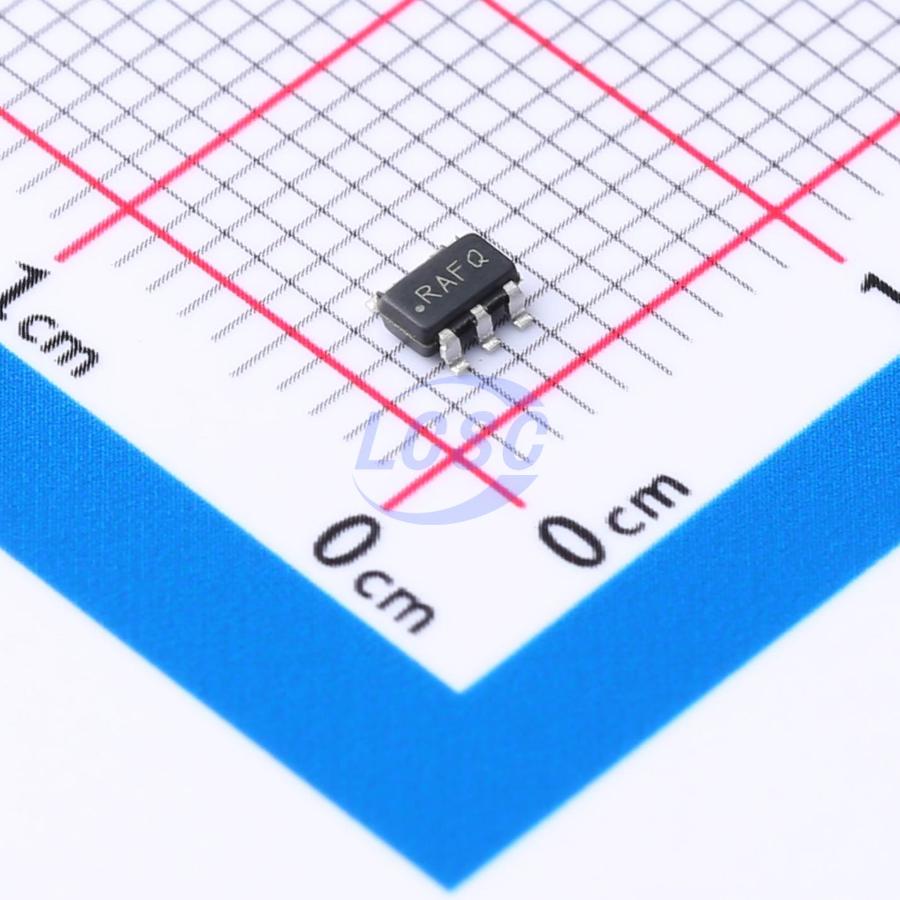

LP5907QMFX-1.2Q1
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
Low IQ, enabled functionality automotive-grade 250mA, low-noise, high PSRR, ultra-low dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- LP5907QMFX-1.2Q1
- Store part #
- C2863531
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2863531
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.11 | ₹69.11 |
| 10+ | ₹55.63 | ₹556.30 |
| 30+ | ₹49.11 | ₹1,473.30 |
| 100+ | ₹43.25 | ₹4,325.00 |
| 500+ | ₹41.52 | ₹20,760.00 |
| 1,000+ | ₹40.64 | ₹40,640.00 |
1 × ₹69.11
₹69.11
excl. GST
₹81.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP5907QMFX-1.2Q1
₹69.11 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Output discharge;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
The LP5907-Q1 is a low-noise LDO capable of delivering 250mA output current. Designed to meet RF and analog circuit requirements, it offers low noise, high PSRR, low quiescent current, and low line/load transient response. Using innovative design techniques, the LP5907-Q1 achieves excellent noise performance without a noise bypass capacitor and supports remote placement of the output capacitor. The device operates with 1μF input and 1μF output ceramic capacitors, eliminating the need for a separate noise bypass capacitor. Fixed output voltage ranges from 1.2V to 4.5V in 25mV steps.
Applications
- ADAS cameras and radar
- Automotive infotainment systems
- In-vehicle communication and navigation systems
Key features
- Automotive-qualified per AEC-Q100 with the following results:
- Device temperature grade 1: ambient operating temperature range –40°C to 125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C6
- Stable performance with 1μF ceramic input and output capacitors
- Input voltage range: 2.2V to 5.5V
- Output voltage range: 1.2V to 4.5V
- Remote output capacitor placement support
- Thermal overload and short-circuit protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LDLN025M12R#C5268029ST · SOT-23-5L | ST | SOT-23-5L | 74 | ₹46.08 · 74 in stock | View |
 | LP5907MFX-1.2/NOPB#C73478TI · SOT-23-5 | TI | SOT-23-5 | 510 | ₹84.74 · 510 in stock | View |
 | XC6221B122MR#C19335TOREX · SOT-25-5 | TOREX | SOT-25-5 | 2,610 | ₹43.34 · 2,610 in stock | View |
 | XC6210B122MR#C22435183TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,475 | ₹22.07 · 1,475 in stock | View |
 | VRH1202LSX#C697957AnaSem · SSOT-25 | AnaSem | SSOT-25 | 50 | ₹8.11 · 50 in stock | View |
