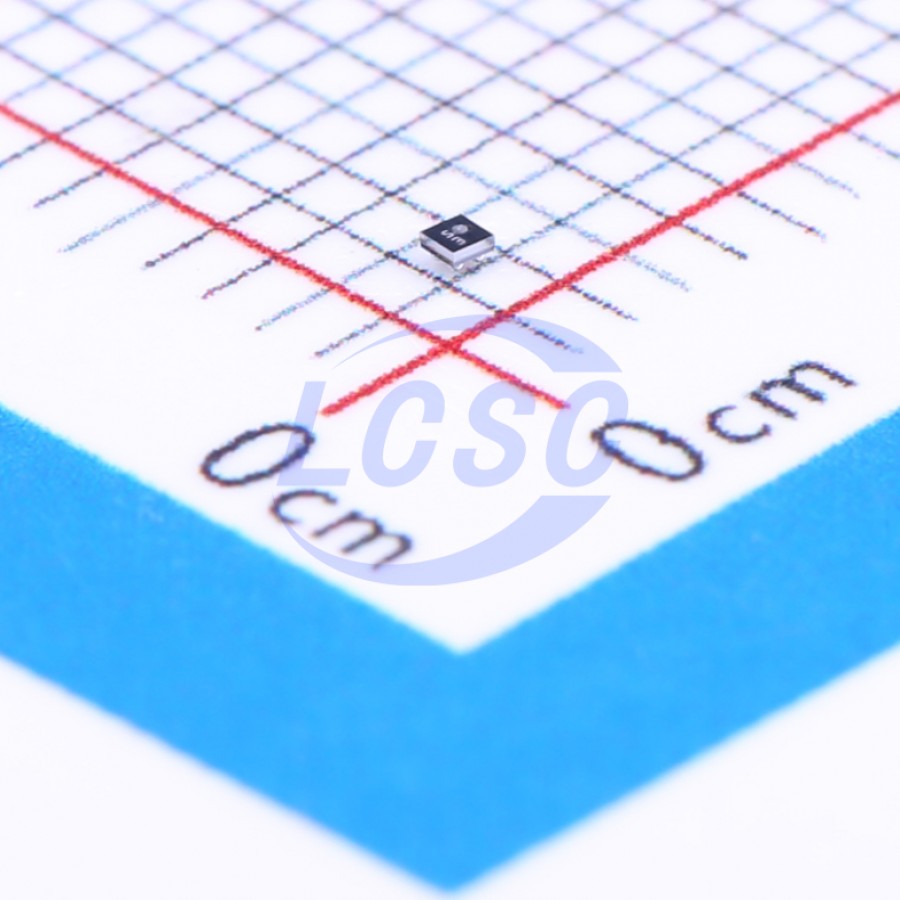

LP5907UVX-1.8/NOPB
1.8V Positive Fixed DSBGA-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DSBGA-4ROHS3 CompliantActive
250mA, low noise, high PSRR, ultra-low dropout regulator with low IQ and enable functionality
- Manufacturer
- TI
- Manufacturer part #
- LP5907UVX-1.8/NOPB
- Store part #
- C165156
- Package / case
- DSBGA-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,695 in stock
#C165156
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.11 | ₹120.55 |
| 50+ | ₹18.77 | ₹938.50 |
| 150+ | ₹16.48 | ₹2,472.00 |
| 500+ | ₹13.63 | ₹6,815.00 |
| 3,000+ | ₹11.99 | ₹35,970.00 |
| 6,000+ | ₹11.23 | ₹67,380.00 |
5 × ₹24.11
₹120.55
excl. GST
₹142.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP5907UVX-1.8/NOPB
₹120.55 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 12uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Output discharge;Thermal shutdown;Short Circuit Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The LP5907 is a low-noise LDO that can supply up to 250 mA output current. Designed to meet the requirements of RF and analog circuits, the LP5907 device provides low noise, high PSRR, low quiescent current, and low line or load transient response figures. Using new innovative design techniques, the LP5907 offers class-leading noise performance without a noise bypass capacitor and the ability for remote output capacitor placement.
Applications
- Mobile Phones, Tablets
- Digital Cameras and Audio Devices
- Portable and Battery-Powered Equipment
- Portable Medical Equipment
- Smart Meters and Field Transmitters
- RF, PLL, VCO, and Clock Power Supplies
- IP Cameras
- Drones
Key features
- Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 4.5 V
- Stable With 1 μF Ceramic Input and Output Capacitors
- No Noise Bypass Capacitor Required
- Remote Output Capacitor Placement
- Thermal-Overload and Short-Circuit Protection
- -40°C to 125°C Operating Junction Temperature
- Low Output Voltage Noise: <6.5 μV RMS
- PSRR: 82 dB at 1 kHz
- Output Voltage Tolerance: ±2%
- Very Low IQ (Enabled): 12 μA
- Low Dropout: 120 mV (typical)
- Create a Custom Design Using the LP5907 With the WEBENCH Power Designer
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LP5907UVE-1.8/NOPB#C2879575TI · DSBGA-4 | TI | DSBGA-4 | 18 | ₹180.48 · 18 in stock | View | |
 | TPS72718YFFR#C2868534TI · DSBGA-4 | TI | DSBGA-4 | 128 | ₹121.04 · 128 in stock | View |
 | LD39130SJ18R#C443850ST · UFBGA-4 | ST | UFBGA-4 | 294 | ₹100.56 · 294 in stock | View |
 | LDLN025J18R#C3748521ST · FlipChip-4 | ST | FlipChip-4 | On request | Price on request | Quote |
| TPS72718YFFT#C2865108TI · DSBGA-4 | TI | DSBGA-4 | On request | Price on request | Quote | |
