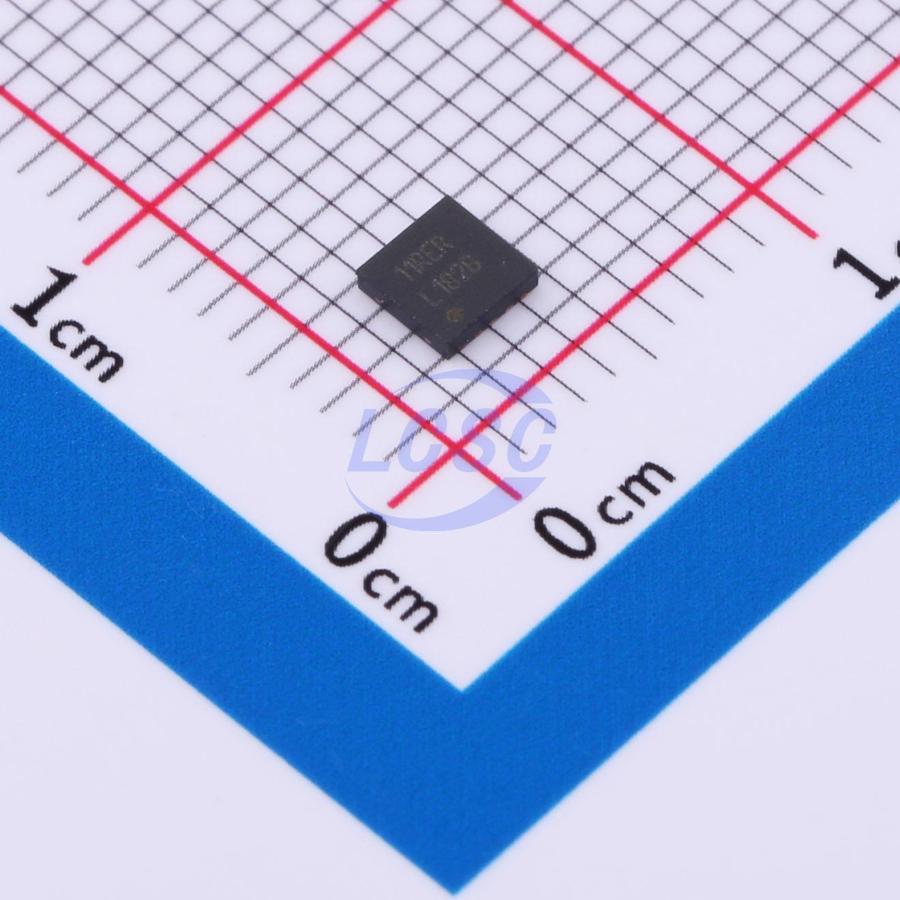

LP5996SD-3333/NOPB
3.3V Positive Fixed WSON-10-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WSON-10-EP(3x3)ROHS3 CompliantActive
150mA, low IQ, dual-channel adjustable low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP5996SD-3333/NOPB
- Store part #
- C2860225
- Package / case
- WSON-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C2860225
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹280.13 | ₹280.13 |
| 10+ | ₹236.45 | ₹2,364.50 |
| 30+ | ₹208.91 | ₹6,267.30 |
| 100+ | ₹180.96 | ₹18,096.00 |
| 500+ | ₹168.33 | ₹84,165.00 |
| 1,000+ | ₹162.74 | ₹1,62,740.00 |
1 × ₹280.13
₹280.13
excl. GST
₹330.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP5996SD-3333/NOPB
₹280.13 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 2
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 150mA;300mA
- Output Type
- Fixed
- Features
- Enable control;Noise bypass terminal;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The LP5996 is a dual low dropout regulator. The first regulator can source 150mA, while the second is capable of sourcing 300mA. The LP5996 provides 1.5% accuracy requiring an ultra low quiescent current of 35μA. Separate enable pins allow each output of the LP5996 to be shut down, drawing virtually zero current. The LP5996 is designed to be stable with small footprint ceramic capacitors down to 1μF. The LP5996 is available in fixed output voltages and comes in a 10 pin, 3mm x 3mm package.
Applications
- Cellular Handsets
- PDA's
- Wireless Network Adaptors
Key features
- 2 LDO Outputs with Independent Enable
- 1.5% Accuracy at Room Temperature, 5% over Temperature
- Thermal Shutdown Protection
- Stable with Ceramic Capacitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LP3996SD-3333/NOPB#C2876335TI · WSON-10-EP(3x3) | TI | WSON-10-EP(3x3) | On request | ₹116.38 · 0 in stock | View | |
| LP5996SD-1833/NOPB#C2872706TI · WSON-10-EP(3x3) | TI | WSON-10-EP(3x3) | 77 | ₹116.58 · 77 in stock | View | |
 | NCP3337MN330R2G#C603705onsemi · DFN-10-EP(3x3) | onsemi | DFN-10-EP(3x3) | 46 | ₹214.43 · 46 in stock | View |
 | NCV8537ML330R2G#C893208onsemi · DFN-10(3x3) | onsemi | DFN-10(3x3) | 50 | ₹176.69 · 50 in stock | View |
 | NCV8537MN330R2G#C893213onsemi · DFN-10(3x3) | onsemi | DFN-10(3x3) | 50 | ₹256.11 · 50 in stock | View |
