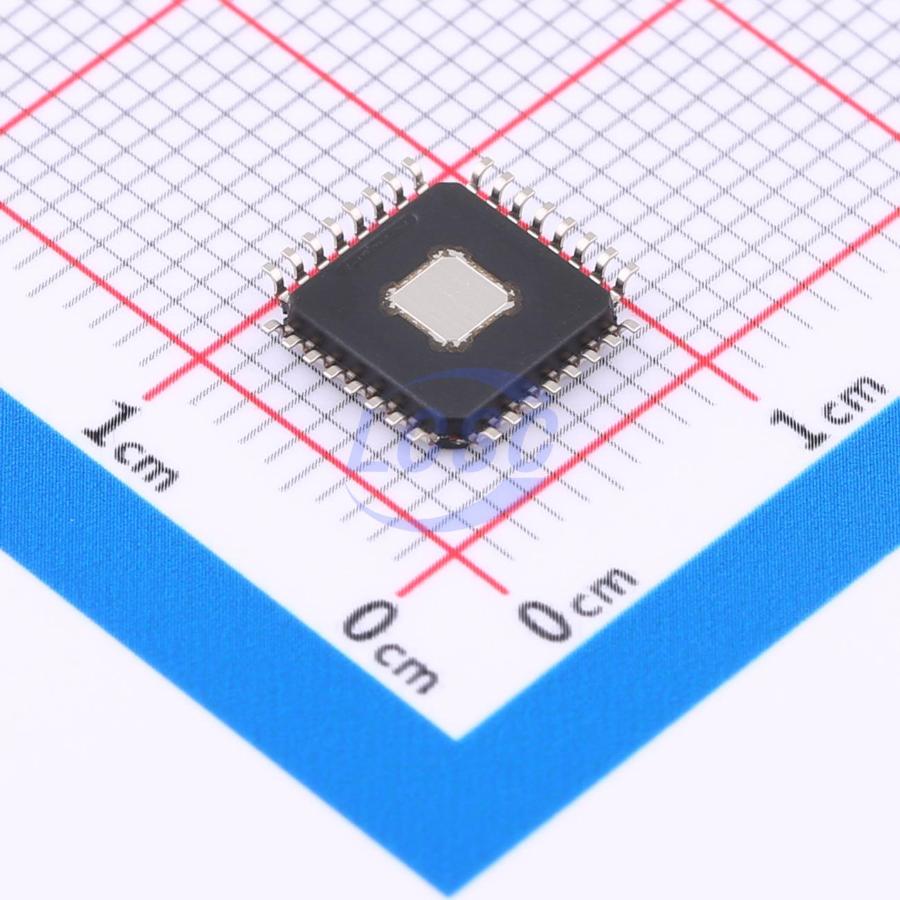

LP8860CQVFPRQ1
LED Driver IC 4 Output DC-DC Boost PWM I2C Dimming 150mA HLQFP-32(7x7)
High-efficiency LED driver for automotive applications, with boost controller and 4-channel high-precision current sinks
- Manufacturer
- TI
- Manufacturer part #
- LP8860CQVFPRQ1
- Store part #
- C2872807
- Package / case
- HLQFP-32(7x7)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C2872807
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹389.45 | ₹389.45 |
| 10+ | ₹330.53 | ₹3,305.30 |
| 30+ | ₹295.73 | ₹8,871.90 |
| 100+ | ₹260.29 | ₹26,029.00 |
| 500+ | ₹243.97 | ₹1,21,985.00 |
| 1,000+ | ₹236.80 | ₹2,36,800.00 |
1 × ₹389.45
₹389.45
excl. GST
₹459.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP8860CQVFPRQ1
₹389.45 for 1 + GST
Specifications
- Frequency - Switching
- 100kHz~2.2MHz
- Dimming
- PWM;I2C
- Number of Channels
- 4
- Type
- DC-DC
- Output Voltage
- 48V
- Output Current
- 150mA
- Operating Temperature
- -40℃~+125℃
- Features
- Over Voltage Protection;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Boost
- Voltage - Input(DC)
- 3V~48V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
LP8860-Q1 is a high-efficiency automotive LED driver with a boost controller. The device features 4 high-precision current sinks controllable via PWM input signal, SPI, and/or I²C host. The boost converter incorporates adaptive output voltage control based on LED current sink headroom voltage. This feature regulates the voltage to the minimum level required under all conditions, minimizing power dissipation. With a wide adjustable frequency range, the LP8860-Q1 avoids interference in the AM radio frequency band. The LP8860-Q1 supports built-in hybrid PWM and current dimming, reducing EMI, extending LED lifetime, and improving overall optical efficiency. Phase-shifted PWM reduces audible noise and output ripple.
Applications
- Automotive infotainment systems
- Automotive instrument clusters
- Smart rearview mirrors
- Head-Up Displays (HUD)
- Center Information Displays (CID)
- Audio Video Navigation (AVN)
Key features
- Automotive-qualified
- Meets AEC-Q100 requirements with the following characteristics: Device Temperature Grade 1: -40°C to +125°C ambient operating temperature
- Input voltage operating range: 3V to 48V
- Four high-accuracy current sinks
- Current matching: 0.5% (typical)
- LED string current up to 150mA/channel
- External PWM brightness control with dimming ratio greater than 13000:1
- 16-bit dimming control via SPI or I²C
- Supports display mode (global dimming) and cluster mode (independent dimming)
- Hybrid PWM and current dimming for improved LED driver luminous efficacy
- Boost controller with programmable switching frequency between 100kHz and 2.2MHz and spread spectrum option for EMI reduction, synchronized to LED PWM frequency
- Boost sync input
- Comprehensive fault diagnostics
