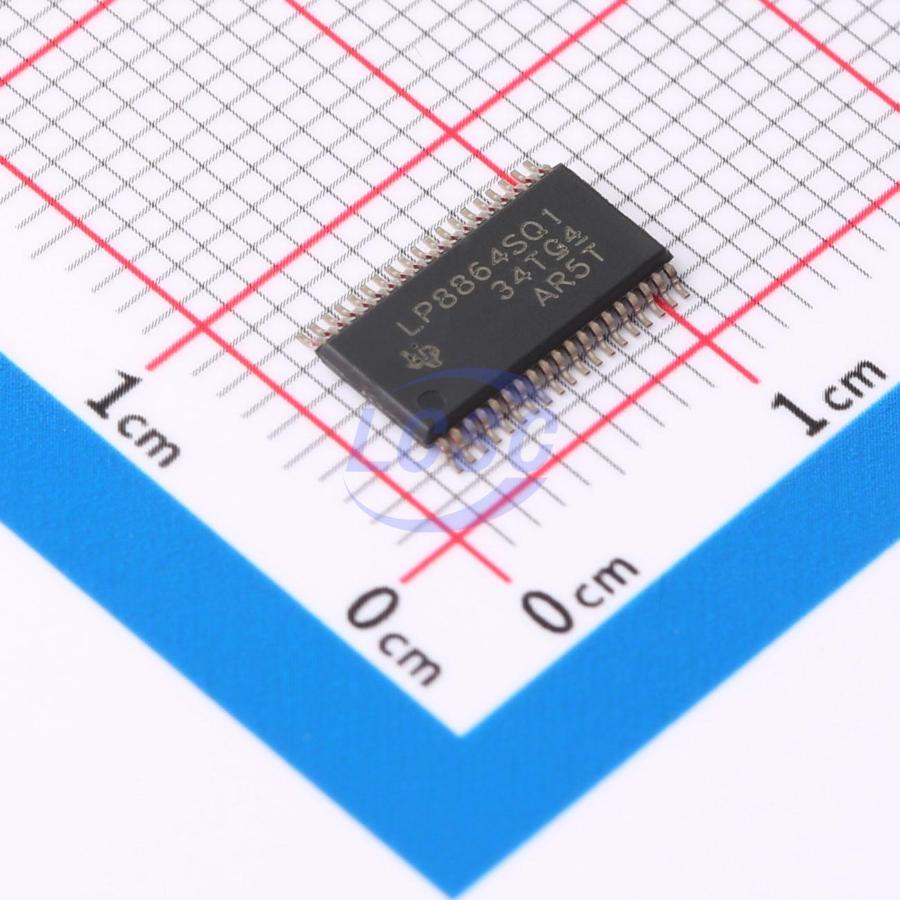

LP8864SQDCPRQ1
100kHz~2.2MHz 4 DC-DC 150mA 3V~48V SSOP-38-4.4mm LED Drivers RoHS
Automotive display LED backlight driver with four 150mA channels
- Manufacturer
- TI
- Manufacturer part #
- LP8864SQDCPRQ1
- Store part #
- C2862702
- Package / case
- SSOP-38-4.4mm
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,304 in stock
#C2862702
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹311.13 | ₹311.13 |
| 10+ | ₹262.56 | ₹2,625.60 |
| 30+ | ₹232.21 | ₹6,966.30 |
| 100+ | ₹200.99 | ₹20,099.00 |
| 500+ | ₹186.90 | ₹93,450.00 |
| 1,000+ | ₹180.83 | ₹1,80,830.00 |
1 × ₹311.13
₹311.13
excl. GST
₹367.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LP8864SQDCPRQ1
₹311.13 for 1 + GST
Specifications
- Frequency - Switching
- 100kHz~2.2MHz
- Dimming
- PWM;I2C
- Number of Channels
- 4
- Type
- DC-DC
- Switch tube (built-in/external)
- External
- Output Current
- 150mA
- Operating Temperature
- -40℃~+125℃
- Features
- Over Voltage Protection;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- SEPIC
- Constant Current Accuracy
- 1%
- Voltage - Input(DC)
- 3V~48V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
The LP8864S-Q1 is an automotive-grade high-efficiency LED driver with a boost controller. Four high-precision current sinks support automatic phase shift adjustment based on the number of channels in use. The LED brightness can be globally controlled via the I²C interface or PWM input. The boost controller features adaptive output voltage control based on the headroom voltage of the LED current sinks. This feature can regulate the boost voltage to the lowest level that can meet the requirements under all conditions, thereby minimizing power consumption. With a wide-range adjustable frequency, the LP8864S-Q1 can avoid interference in the AM radio band. The LP8864S-Q1 supports built-in hybrid PWM dimming and analog current dimming, which can reduce EMI, extend the LED lifespan, and improve the overall optical efficiency.
Applications
- Automotive infotainment systems
- Automotive instrument clusters
- Smart rearview mirrors
- Head-Up Displays (HUD)
Key features
- AEC-Q100 qualified for automotive applications
- Device temperature grade 1: –40°C to +125°C, TA
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
- Input voltage operating range: 3V to 48V
- Four high-accuracy current sinks
- Up to 150mA DC current per current sink
- 1% current matching (typical)
- 32000:1 dimming ratio at 152Hz LED output PWM frequency
- Up to 16-bit LED dimming resolution via I2C or PWM input
- Configurable 8 LED strings
- Automatic phase-shifted PWM dimming
- 12-bit analog dimming
- Up to 48V VOUT boost or SEPIC DC/DC controller
- Switching frequency: 100kHz to 2.2MHz
- Boost spread spectrum for reduced EMI
- Boost sync input for external clock-controlled boost switching frequency
- Automatic output voltage discharge when boost is disabled
- Multiple fault diagnostic features
