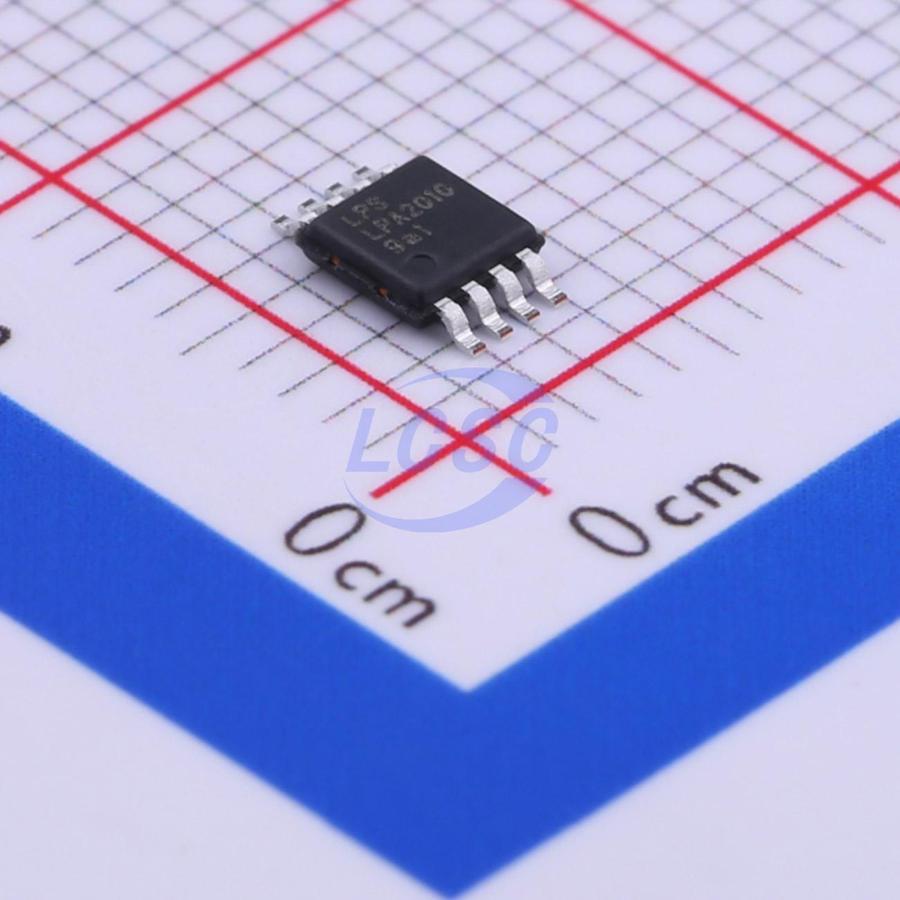

LPA2010MSF
2mA 2.5V~5.5V 1-Channel Class D MSOP-8 Audio Amplifiers
Filterless 3W Class-D Mono Audio Amplifier
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LPA2010MSF
- Store part #
- C387737
- Package / case
- MSOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C387737
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.60 | ₹108.00 |
| 50+ | ₹16.86 | ₹843.00 |
| 150+ | ₹14.49 | ₹2,173.50 |
| 500+ | ₹12.71 | ₹6,355.00 |
| 3,000+ | ₹11.29 | ₹33,870.00 |
| 6,000+ | ₹10.57 | ₹63,420.00 |
5 × ₹21.60
₹108.00
excl. GST
₹127.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LPA2010MSF
₹108.00 for 5 + GST
Specifications
- Quiescent Current
- 2mA
- Voltage - Supply
- 2.5V~5.5V
- Features
- Filterless architecture;Enable/shutdown function;ESD protection
- Number of Inputs
- 1 Pair Differential Inputs
- Signal-to-Noise Ratio
- 88dB
- Speaker Channels
- 1-Channel
- Efficiency
- 85%
- Output Power
- 3W×1@4Ω;2.3W×1@4Ω;1.73W×1@8Ω;1.42W×1@8Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- 75dB;50dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
The LPA2010 is a 3W, class-D audio amplifier. It offers low THD+N, allowing it to achieve high-quality Power Supply sound reproduction. The new filterless architecture allows the device to drive the speaker directly requiring no low-pass output filters, thus to save the system cost and PCB area. The LPA2010 is available in MSOP-8.
Applications
- Portable Bluetooth Speaker
- Cellular and Smart mobile phone
- Square Speaker
Key features
- Shutdown current:<1uA
- 550KHz fixed frequency switching for amplifier
- 3W Output at 10% THD with a 4Ω Load and 5V VDD for amplifier
- 2.3W Output at 1% THD with a 4Ω Load and 5V VDD for amplifier
- Filterless, Low Quiescent Current and Low EMI
- Amplifier Efficiency up to 85%
- Free LC filter digital modulation, direct-drive speakers
- Short Circuit Protection
- Thermal Shutdown
- Few External Components to Save the Space and cost
- Pb-Free Package
