LRCDatasheet (PDF)

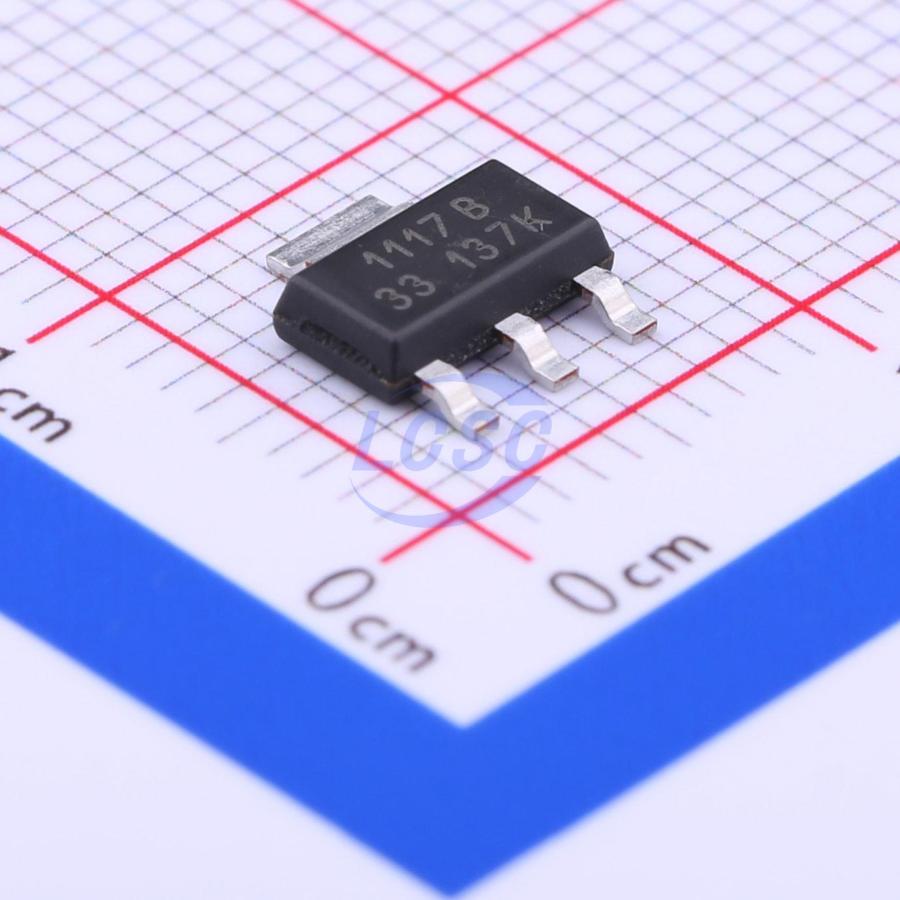

LR1117CS33X
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-4
SOT-223-4RoHSActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- LRC
- Manufacturer part #
- LR1117CS33X
- Store part #
- C78580
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,575 in stock
#C78580
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.03 | ₹90.15 |
| 50+ | ₹14.34 | ₹717.00 |
| 150+ | ₹12.49 | ₹1,873.50 |
| 500+ | ₹11.10 | ₹5,550.00 |
| 2,500+ | ₹9.13 | ₹22,825.00 |
| 5,000+ | ₹8.57 | ₹42,850.00 |
5 × ₹18.03
₹90.15
excl. GST
₹106.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LR1117CS33X
₹90.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.256 g
Overview
LR1117C is a series of low dropout thre-e terminal regulators with a dropout of 1.3V at 1A load current. LR1117C features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, LR1117C has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. LR1117C offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. Other output voltage accuracy can be customized on demand, such as ±1%. LR1117C is available in SOT - 223, TO - 252 power package.
Applications
- Power Management for Computer Mother Board, Graphic Card
- BLD Monitor and BLD TV
- DVD Decode Board
- ADSL Modem
- Post Regulators for Switching Supplies
Key features
- Other than a fixed version and an adjustable version, output value can be customized on demand. Maximum output current is 1A
- Range of operation input voltage: Max 12V
- Standby current: 2mA (typ.)
- Line regulation: 0.1%/V (typ.)
- Load regulation: 10mV (typ.)
- Environment Temperature: -40°C ~ 85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR1117DS33X#C383259LRC · SOT-223 | LRC | SOT-223 | 16,110 | ₹12.15 · 16,110 in stock | View |
