LRCDatasheet (PDF)

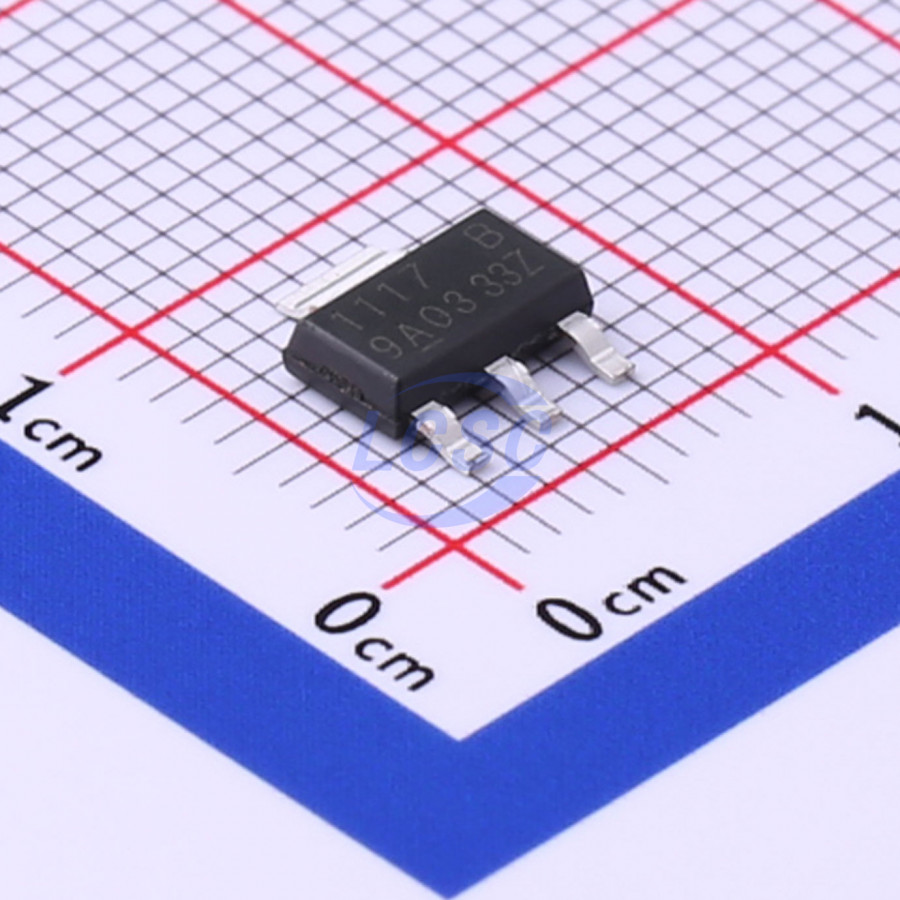

LR1117DS33X
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
Bipolar Linear Regulator
- Manufacturer
- LRC
- Manufacturer part #
- LR1117DS33X
- Store part #
- C383259
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,110 in stock
#C383259
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.15 | ₹60.75 |
| 50+ | ₹9.53 | ₹476.50 |
| 150+ | ₹8.22 | ₹1,233.00 |
| 500+ | ₹7.24 | ₹3,620.00 |
| 2,500+ | ₹6.18 | ₹15,450.00 |
| 4,000+ | ₹5.78 | ₹23,120.00 |
5 × ₹12.15
₹60.75
excl. GST
₹71.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LR1117DS33X
₹60.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 15V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.267 g
Overview
LR1117D is a series of low dropout three- terminal regulators with a dropout of 1.3V at 1A load current. LR1117D features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 2.85V, 3.3V, 5V, LR1117D has an adjustable version, which can provide an output voltage from 1.25V to 12V with only two external resistors. LR1117D offers thermal shut down functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. Other output voltage accuracy can be customized on demand, such as ±1%. LR1117D is available in SOT-223, TO-252 power package.
Applications
- Power Management for Computer Mother Board, Graphic Card
- BLD Monitor and BLD TV
- DVD Decode Board
- ADSL Modem
- Post Regulators for Switching Supplies
Key features
- Other than a fixed version and an adjustable version, output value can be customized on demand.
- Maximum output current: 1.4A
- Range of operation input voltage: Max 15V
- Standby current: 2mA (typ.)
- Line regulation: 0.03%/V (typ.)
- Load regulation: 0.2%/A (typ.)
- Environment Temperature: -40°C ~ 85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR1117CS33X#C78580LRC · SOT-223-4 | LRC | SOT-223-4 | 10,575 | ₹18.03 · 10,575 in stock | View |
