UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,100 in stock
LRDatasheet (PDF)

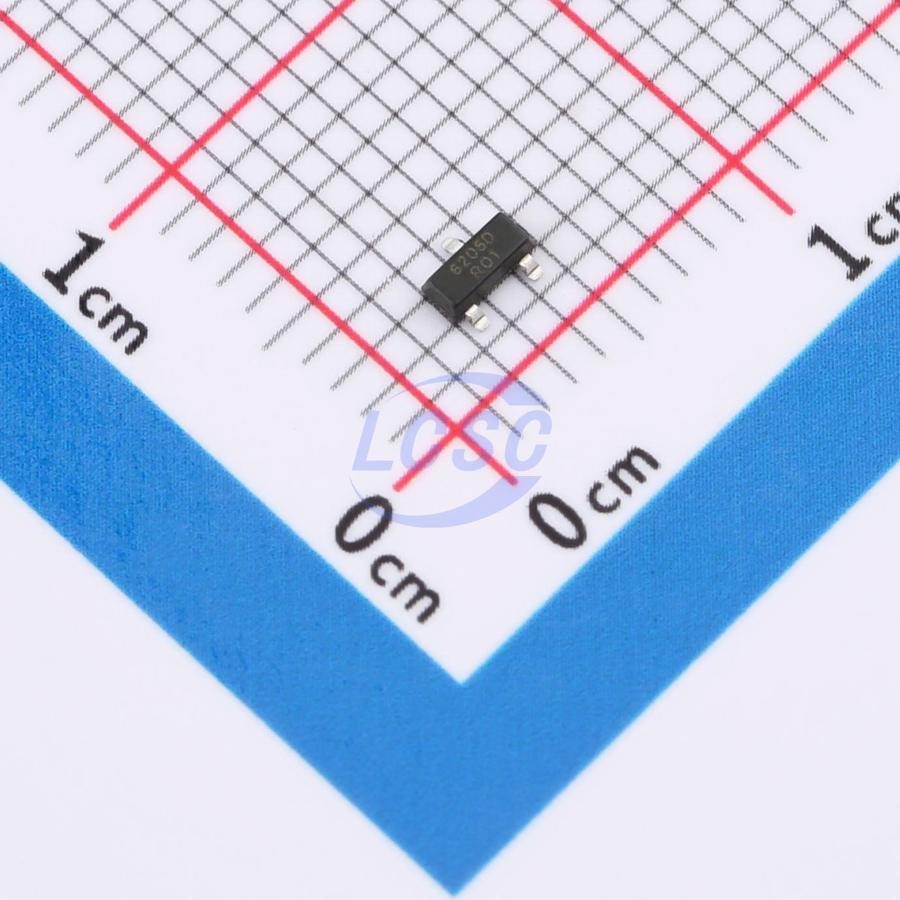

LR6206B-U25
2.5V Positive Fixed SOT-23B Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23BROHS CompliantActive
IC REG LINEAR 2.5V 300mA SOT-23B
- Manufacturer
- LR
- Manufacturer part #
- LR6206B-U25
- Store part #
- C51949445
- Package / case
- SOT-23B
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
57,280 in stock
#C51949445
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.12 | ₹62.40 |
| 200+ | ₹2.45 | ₹490.00 |
| 600+ | ₹2.06 | ₹1,236.00 |
| 3,000+ | ₹1.84 | ₹5,520.00 |
| 9,000+ | ₹1.64 | ₹14,760.00 |
| 21,000+ | ₹1.53 | ₹32,130.00 |
20 × ₹3.12
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR6206B-U25
₹62.40 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 1 g
Overview
The LR6206B series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides multiple fixed output voltages ranging from 1.2V to 5.0V. An integrated short-circuit protection circuit ensures safe operation and extended service life. The LR6206B delivers 300mA output current at very low input-to-output voltage differentials while maintaining excellent regulation performance. Its low dropout characteristics make it well-suited for computing, consumer electronics, and industrial equipment applications.
Applications
- Battery-powered devices
- Communication equipment
- Consumer electronics
- Audio/video equipment
- Home appliance power supply systems
Key features
- Low input power consumption
- Low input dropout voltage
- Input voltage withstand: 6.5V
- Low quiescent current: 6μA
- High output accuracy: ±2%
- Integrated short-circuit protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8103A-T25#C5205202LR · SOT-23-3L | LR | SOT-23-3L | 2,800 | ₹5.08 · 2,800 in stock | View |
 | LR6206A-T25#C5179959LR · SOT-23-3L | LR | SOT-23-3L | 100 | ₹2.62 · 100 in stock | View |
 | LR6206-T25#C459788LR · SOT-23-3L | LR | SOT-23-3L | 420 | ₹5.49 · 420 in stock | View |
 | LR8106A-T25#C54333668LR · SOT-23-3L | LR | SOT-23-3L | 2,970 | ₹6.99 · 2,970 in stock | View |
