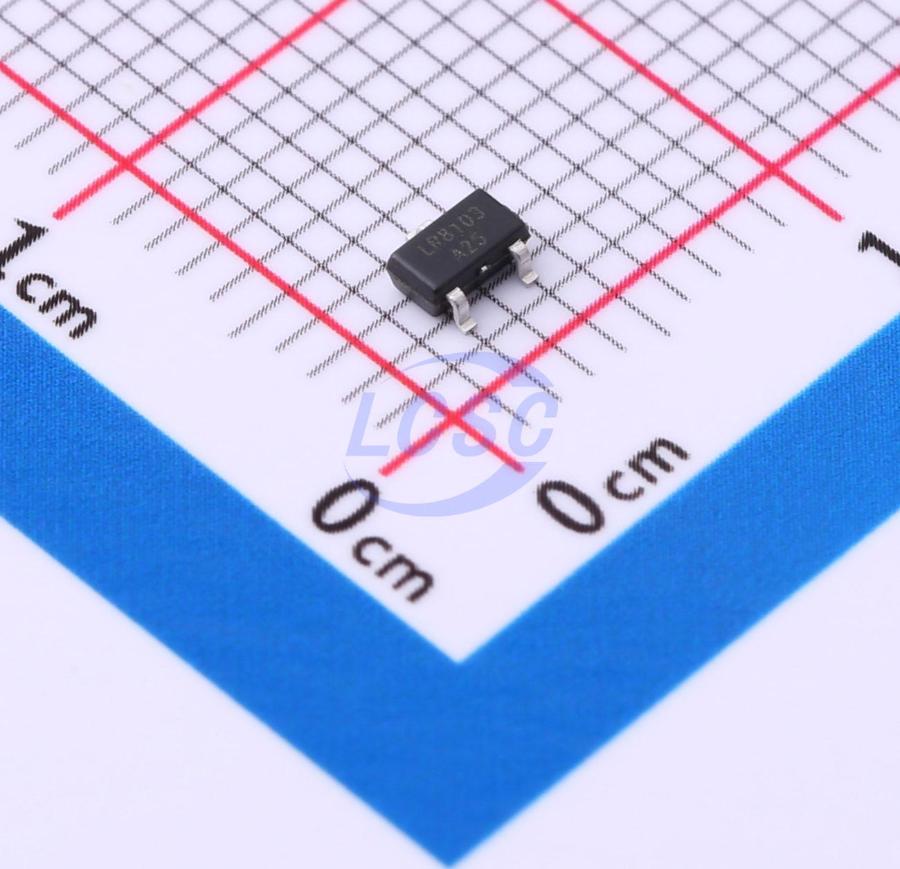

LR8103A-T25
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Ultra-low power consumption linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103A-T25
- Store part #
- C5205202
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C5205202
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.08 | ₹101.60 |
| 200+ | ₹4.04 | ₹808.00 |
| 600+ | ₹3.52 | ₹2,112.00 |
| 3,000+ | ₹3.12 | ₹9,360.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
| 21,000+ | ₹2.66 | ₹55,860.00 |
20 × ₹5.08
₹101.60
excl. GST
₹119.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103A-T25
₹101.60 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
Low input power consumption, low dropout voltage, input voltage rating: 6.5V, low quiescent current: 0.8uA, high output accuracy: ±1%, integrated short-circuit protection. The LR8103 series is a low-power linear regulator implemented in CMOS process, featuring excellent low dropout voltage and low quiescent current characteristics. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages in the range of 1.2V~5.0V, capable of delivering 300mA output current. The built-in short-circuit protection circuit ensures safe operation and extended service life.
Applications
- Battery-powered devices
- Communication equipment
- Consumer electronics
- Audio/video equipment
- Home appliance power supply systems
- Portable computer power supply systems
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR6206A-T25#C5179959LR · SOT-23-3L | LR | SOT-23-3L | 80 | ₹2.62 · 80 in stock | View |
 | LR6206B-U25#C51949445LR · SOT-23B | LR | SOT-23B | 57,280 | ₹3.12 · 57,280 in stock | View |
 | LR6206-T25#C459788LR · SOT-23-3L | LR | SOT-23-3L | 420 | ₹5.49 · 420 in stock | View |
 | LR8106A-T25#C54333668LR · SOT-23-3L | LR | SOT-23-3L | 2,970 | ₹6.99 · 2,970 in stock | View |
