LR8103A-T12(0.8uA)

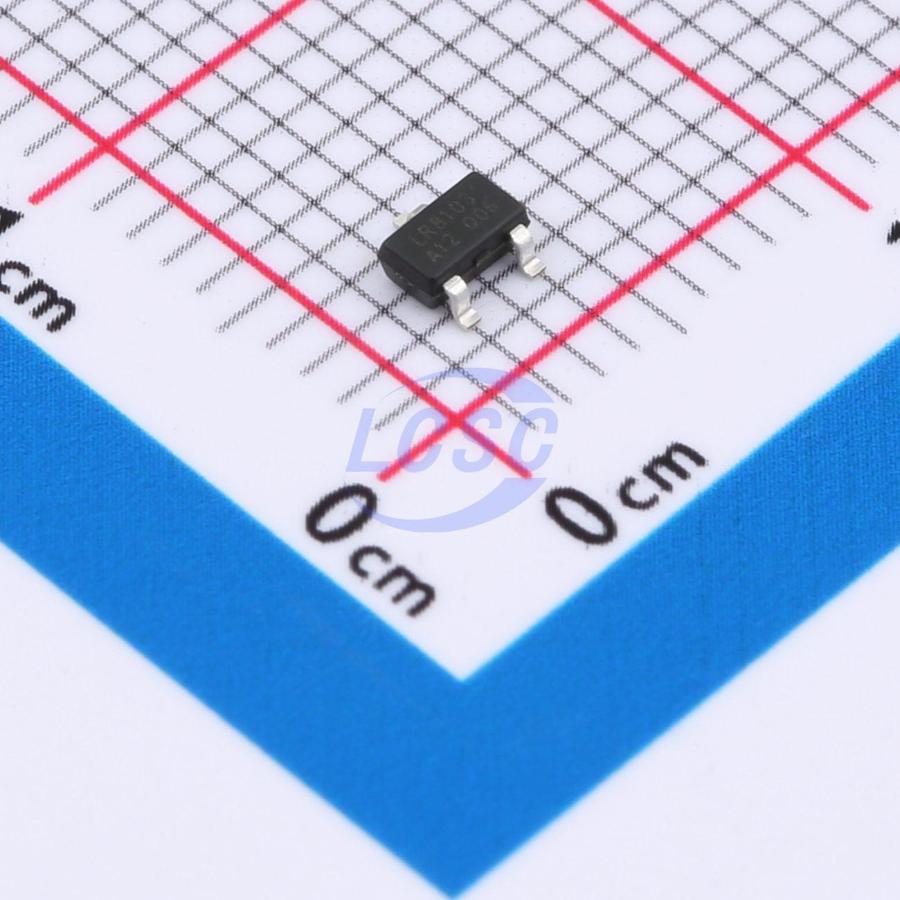

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Ultra-low power consumption linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103A-T12(0.8uA)
- Store part #
- C29781226
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C29781226
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.74 | ₹57.40 |
| 100+ | ₹4.55 | ₹455.00 |
| 300+ | ₹3.94 | ₹1,182.00 |
| 3,000+ | ₹3.49 | ₹10,470.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.74
₹57.40
excl. GST
₹67.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103A-T12(0.8uA)
₹57.40 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The LR8103 series is a low-power linear regulator implemented in CMOS technology, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages ranging from 1.2V to 5.0V, with an output current capability of 300mA. An integrated short-circuit protection circuit ensures safe operation and extended service life.
Applications
- Battery-powered devices
- Communication equipment
- Consumer electronics
- Audio/video equipment
- Home appliance power systems
- Portable computer power systems
Key features
- Low input power consumption
- Low input voltage dropout
- Input voltage rating: 6.5V
- Low quiescent current: 0.8μA
- High output accuracy: ±1%
- Integrated short-circuit protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8103A-T12#C7501644LR · SOT-23-3L | LR | SOT-23-3L | 6,800 | ₹5.85 · 6,800 in stock | View |
 | LR8106A-T12#C54333667LR · SOT-23-3L | LR | SOT-23-3L | 2,910 | ₹6.99 · 2,910 in stock | View |
