LRDatasheet (PDF)

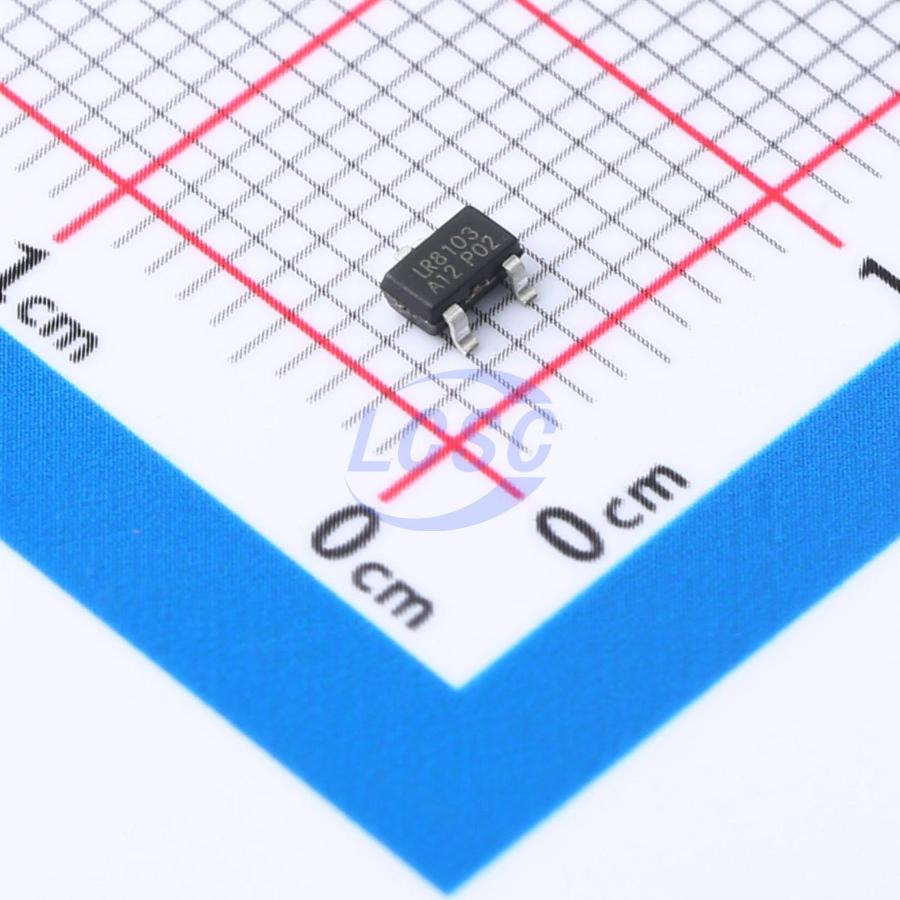

LR8103A-T12
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Ultra-low power linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103A-T12
- Store part #
- C7501644
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,850 in stock
#C7501644
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.60 | ₹460.00 |
| 300+ | ₹3.98 | ₹1,194.00 |
| 3,000+ | ₹3.49 | ₹10,470.00 |
| 6,000+ | ₹3.12 | ₹18,720.00 |
| 9,000+ | ₹2.94 | ₹26,460.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103A-T12
₹58.50 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 300mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The LR8103 series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V, provides several fixed output voltages ranging from 1.2V to 5.0V, and can deliver an output current of 300mA. A built-in short-circuit protection circuit ensures safe operation and extended service life.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8103A-T12(0.8uA)#C29781226LR · SOT-23-3L | LR | SOT-23-3L | 2,910 | ₹5.74 · 2,910 in stock | View |
 | LR8106A-T12#C54333667LR · SOT-23-3L | LR | SOT-23-3L | 2,910 | ₹6.99 · 2,910 in stock | View |
