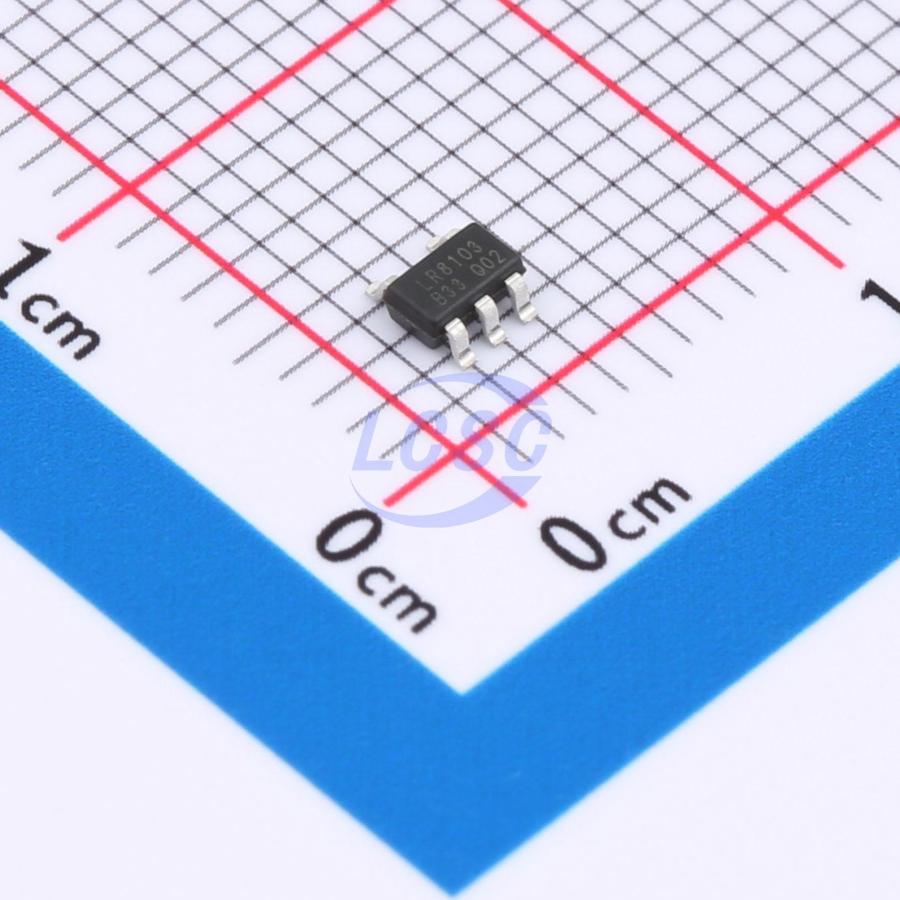

LR8103B-T33(0.8uA)
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Ultra-low power consumption linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103B-T33(0.8uA)
- Store part #
- C29781223
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C29781223
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.48 | ₹54.80 |
| 100+ | ₹4.33 | ₹433.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 3,000+ | ₹3.32 | ₹9,960.00 |
| 6,000+ | ₹2.98 | ₹17,880.00 |
| 9,000+ | ₹2.80 | ₹25,200.00 |
10 × ₹5.48
₹54.80
excl. GST
₹64.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103B-T33(0.8uA)
₹54.80 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 1.2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Overview
The LR8103 series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages ranging from 1.2V to 5.0V, capable of delivering 300mA output current. The device integrates a built-in short-circuit protection circuit to ensure safe operation and extended service life.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8103B-T33#C5179956LR · SOT-23-5L | LR | SOT-23-5L | 1,460 | ₹5.42 · 1,460 in stock | View |
 | LR8323B-T33#C5220844LR · SOT-23-5L | LR | SOT-23-5L | 1,155 | ₹11.10 · 1,155 in stock | View |
 | LR8106B-T33#C54333726LR · SOT-23-5L | LR | SOT-23-5L | 910 | ₹7.98 · 910 in stock | View |
 | LR8102B-T33(0.5uA)#C29781221LR · SOT-23-5L | LR | SOT-23-5L | On request | ₹5.68 · 0 in stock | View |
 | LR6207A-T33#C5260329LR · SOT-23-5L | LR | SOT-23-5L | On request | ₹7.66 · 0 in stock | View |
