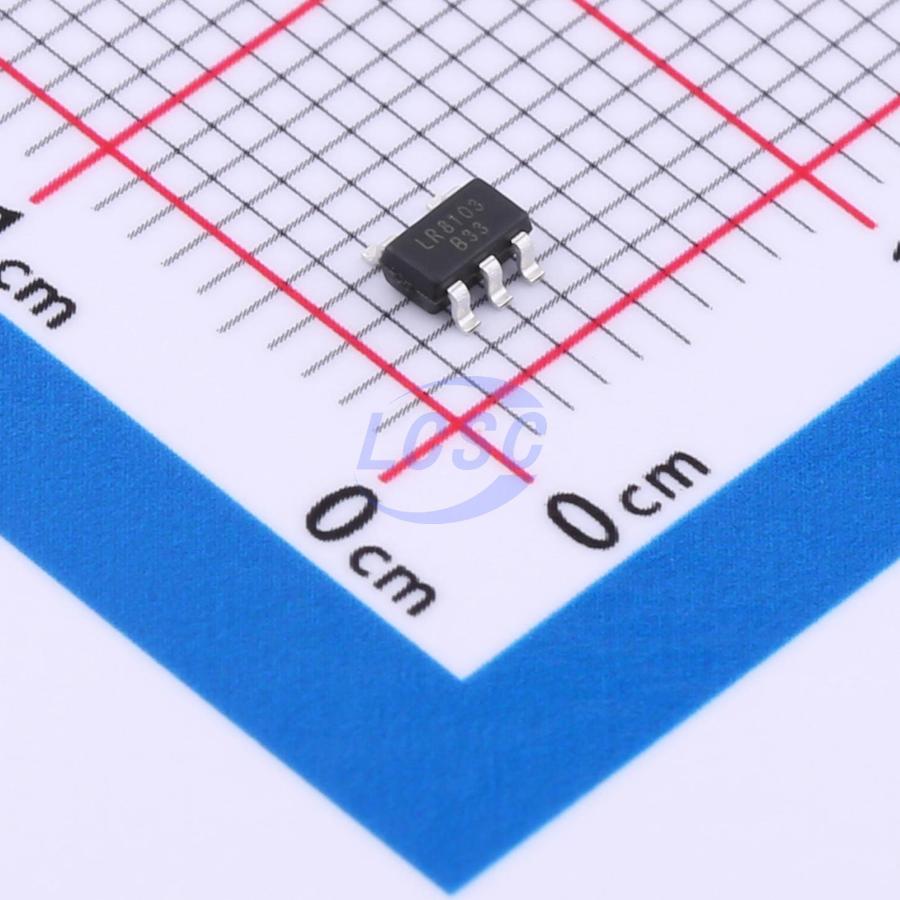

LR8103B-T33
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Ultra-low power consumption linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103B-T33
- Store part #
- C5179956
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C5179956
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.42 | ₹54.20 |
| 100+ | ₹4.29 | ₹429.00 |
| 300+ | ₹3.73 | ₹1,119.00 |
| 3,000+ | ₹3.02 | ₹9,060.00 |
| 6,000+ | ₹2.69 | ₹16,140.00 |
| 9,000+ | ₹2.51 | ₹22,590.00 |
10 × ₹5.42
₹54.20
excl. GST
₹63.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103B-T33
₹54.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Overview
Low input power consumption Low dropout voltage Input voltage rating: 6.5V Low quiescent current: 0.8uA High output accuracy: ±1% Integrated short-circuit protection The LR8103 series is a low-power LDO linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages ranging from 1.2V to 5.0V, capable of delivering 300mA output current. The built-in short-circuit protection circuit ensures safe operation and extended service life.
Applications
- Battery-powered devices
- Communication equipment
- Consumer electronics
- Audio/video equipment
- Home appliance power supply systems
- Portable computer power supply systems
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8323B-T33#C5220844LR · SOT-23-5L | LR | SOT-23-5L | 1,155 | ₹11.10 · 1,155 in stock | View |
 | LR8103B-T33(0.8uA)#C29781223LR · SOT-23-5L | LR | SOT-23-5L | 1,380 | ₹5.48 · 1,380 in stock | View |
 | LR8106B-T33#C54333726LR · SOT-23-5L | LR | SOT-23-5L | 910 | ₹7.98 · 910 in stock | View |
 | LR6207A-T33#C5260329LR · SOT-23-5L | LR | SOT-23-5L | On request | ₹7.66 · 0 in stock | View |
 | LR8102B-T33(0.5uA)#C29781221LR · SOT-23-5L | LR | SOT-23-5L | On request | ₹5.68 · 0 in stock | View |
