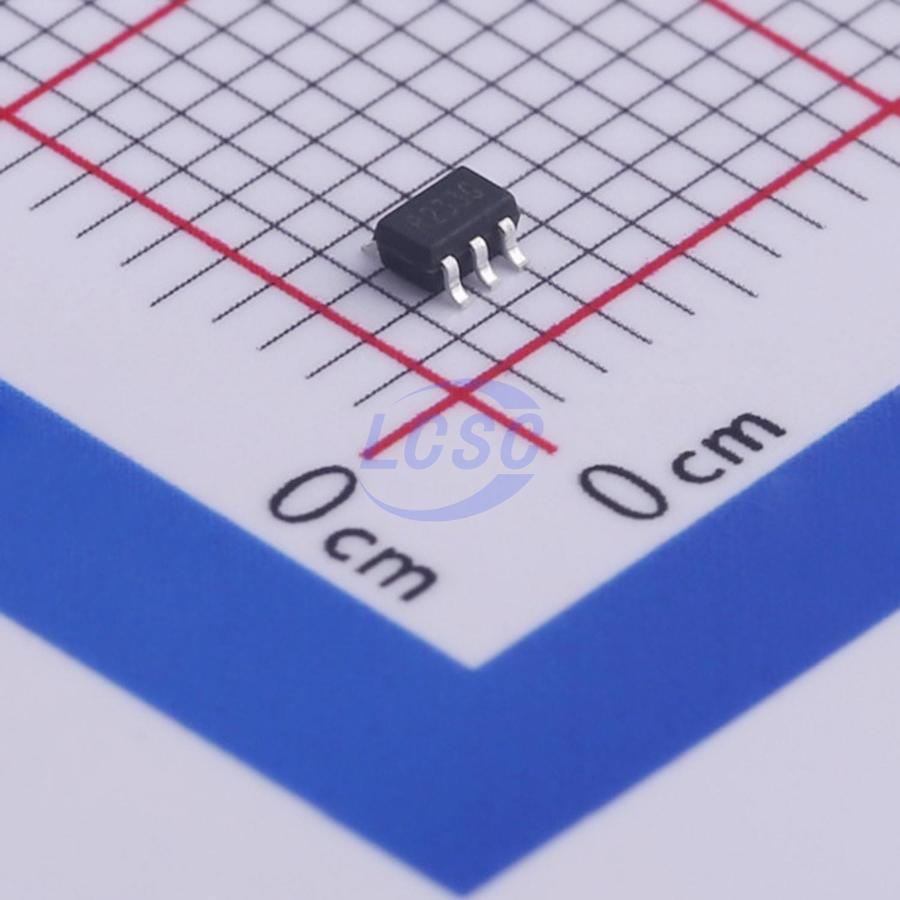

LR9102G-33-AL5-R

The UTC LR9102/A is a typical LDO (linear regulator) with the features of high output voltage accuracy, low supply current, low ON-resistance, and high ripple rejection. During operation of the UTC LR9102/A, the dropout voltage is very low and the response of line transient and load transient are very well. Internally, there’re many functions of UTC LR9102/A which can be seen in the block figure. There are a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit, and a chip enable circuit in each UTC LR9102/A, with auto discharge function at off state. The UTC LR9102/A can be used as an ideal of the power supply for hand-held communication equipment, such as: power source for portable communication equipment, power source for electrical appliances, for example, cameras, VCRs and camcorders and power source for battery-powered equipment.

Applications

• Hand-held communication equipment
• Portable communication equipment
• Electrical appliances (e.g., cameras, VCRs, camcorders)
• Battery-powered equipment

Key features

• Ultra Supply Current: LR9102: 50μA (Typ.) LR9102A: 90μA (Typ.)
• Standby Mode: 0.1μA (Typ.)
• Very Low Dropout Voltage: 0.12V (Typ.) @ lour = 300mA, VOUT = 2.85V
• Ripple Rejection: 75dB (Typ.) @ f = 1kHz, VOUT = 2.85V
• Temperature-Drift Coefficient ±50ppm/°C (Typ.) of Output Voltage
• Well Line Regulation: 0.02%/ V (Typ.)
• Output Voltage Accuracy: ±1.0%
• Internal Fold Back Protection 50mA (Typ.) @ short mode Circuit
• CIN = COUT = 1μF or more (Ceramic capacitors) are recommended to be used with this IC
