UTCDatasheet (PDF)

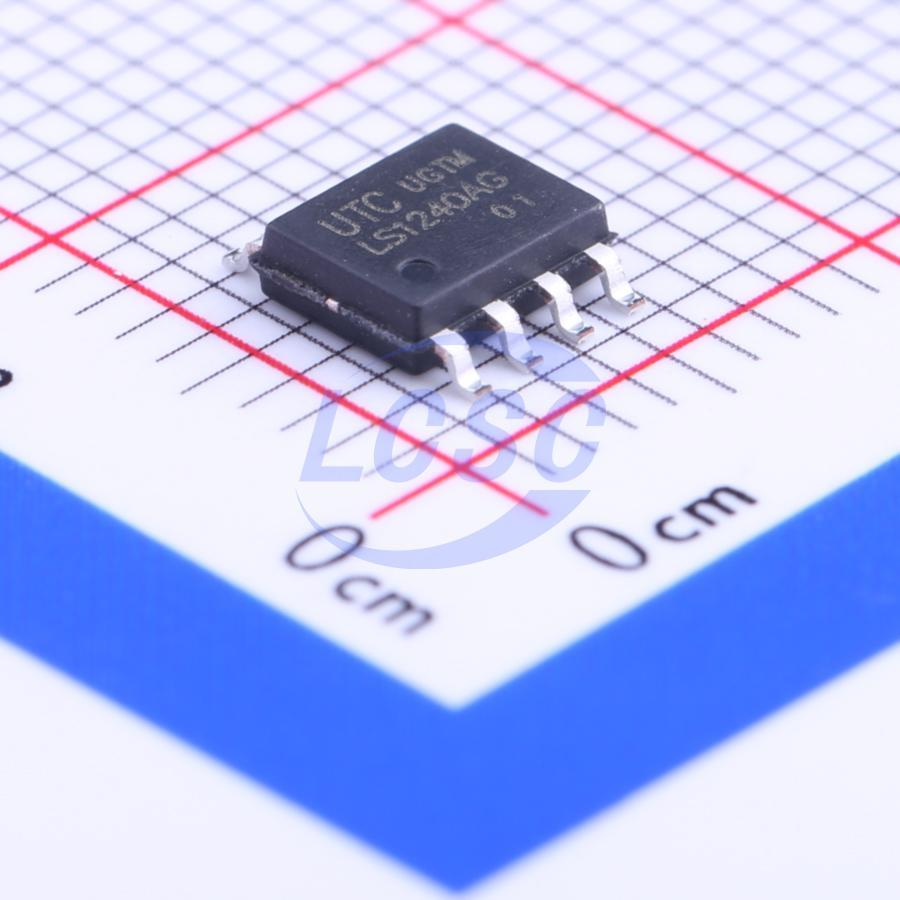

LS1240AG-SO8-R
9.3V~26V SOP-8 Gate Drivers
SOP-8RoHSActive
LINEAR INTEGRATED CIRCUIT ELECTRONIC TONERINGER WITH BUILT-IN BRIDGE RECTIFIER
- Manufacturer
- UTC
- Manufacturer part #
- LS1240AG-SO8-R
- Store part #
- C127025
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,275 in stock
#C127025
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.92 | ₹159.60 |
| 50+ | ₹25.03 | ₹1,251.50 |
| 150+ | ₹22.07 | ₹3,310.50 |
| 500+ | ₹18.38 | ₹9,190.00 |
| 2,500+ | ₹16.74 | ₹41,850.00 |
| 5,000+ | ₹15.76 | ₹78,800.00 |
5 × ₹31.92
₹159.60
excl. GST
₹188.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LS1240AG-SO8-R
₹159.60 for 5 + GST
Specifications
- Quiescent Current
- 1.5mA
- Voltage - Supply
- 9.3V~26V
- Operating Temperature
- -40℃~+70℃
- Features
- Overvoltage protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The UTC LS1240A is monolithic integrated circuits and designed to be as a telephone ringer. It can drive a piezo-ceramic converter (buzzer) directly. The output current capacity of UTC LS1240A is higher than standard ringer. For driving a dynamic loudspeaker, UTC LS1240A needs only a decoupling capacitor to replace the usual transformer in use.
Key features
- Low current consumption.
- Integrated rectifier bridge with zener diodes to overvoltage Protection.
- Minimum external circuitry.
- Both frequencies of tone and switching are adjustable by external components.
- Integrated voltage and current hysteresis.
