TIDatasheet (PDF)

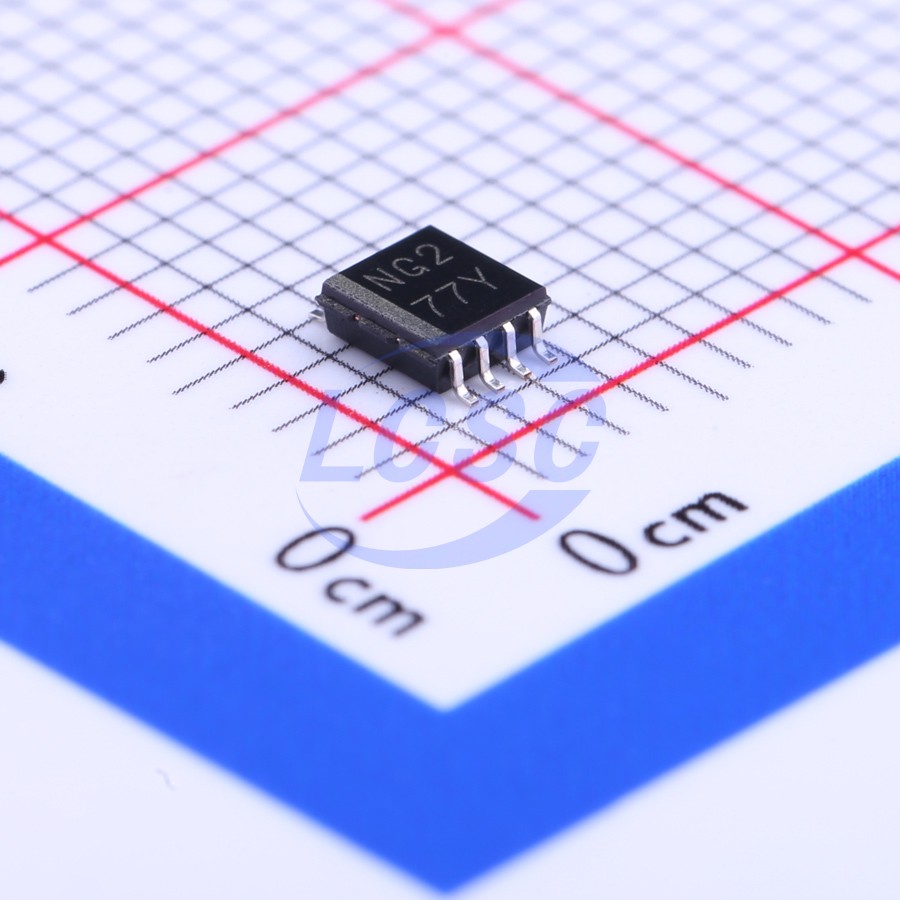

LSF0102DCTR
1 2 MSOP-8 Translators, Level Shifters RoHS
MSOP-8ROHS3 CompliantActive
Multi-channel bidirectional multi-voltage level translator for open-drain and push-pull applications
- Manufacturer
- TI
- Manufacturer part #
- LSF0102DCTR
- Store part #
- C132024
- Package / case
- MSOP-8
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,678 in stock
#C132024
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.22 | ₹57.22 |
| 10+ | ₹45.31 | ₹453.10 |
| 30+ | ₹40.26 | ₹1,207.80 |
| 100+ | ₹33.76 | ₹3,376.00 |
| 500+ | ₹28.16 | ₹14,080.00 |
| 1,000+ | ₹26.54 | ₹26,540.00 |
1 × ₹57.22
₹57.22
excl. GST
₹67.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LSF0102DCTR
₹57.22 for 1 + GST
Specifications
- output type
- Open-drain;Push-Pull
- Interface
- I2C;SMBus;UART
- Operating Temperature
- -40℃~+125℃
- Input Signal
- TTL
- Voltage - Supply
- 1.8V~5.5V;950mV~4.5V
- Number of Elements
- 1
- Channel Type
- Bidirectional
- Features
- Automatic direction detection;Output enable high-impedance
- Number of Circuits
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Overview
Applications
- GPIO
- MDIO, PMBus, SMBus, SDIO, UART, I2C, and other telecom infrastructure interfaces
- Industrial
- Automotive
- Personal computing
