TIDatasheet (PDF)

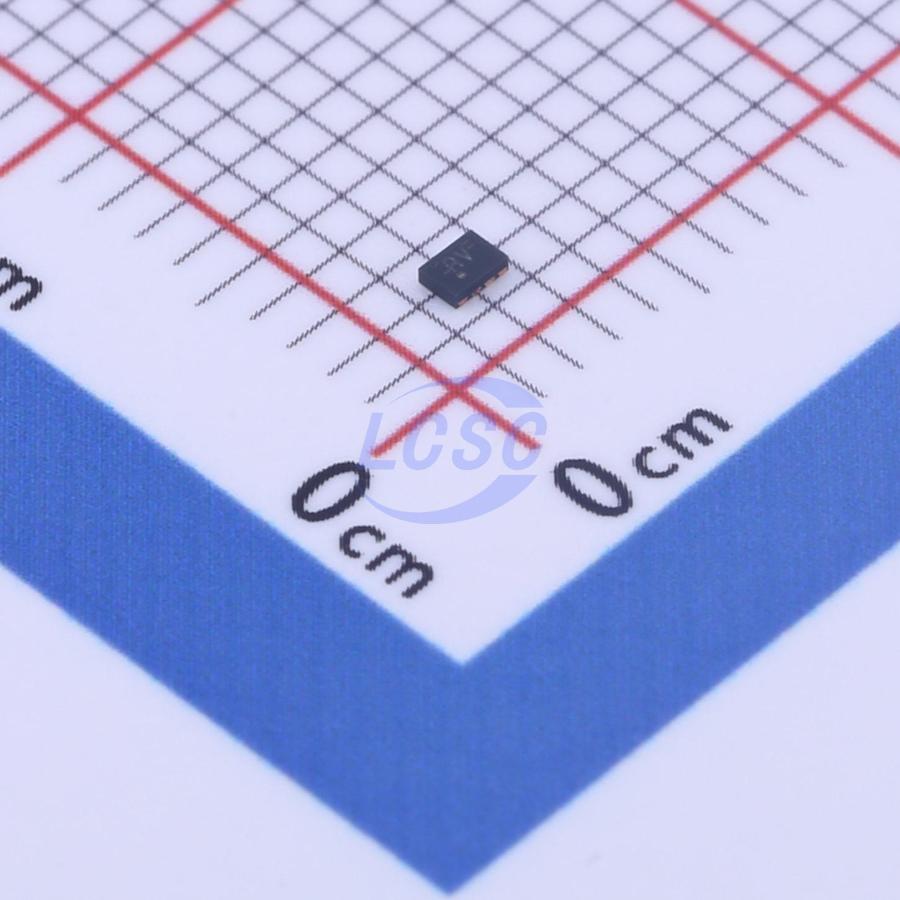

LSF0102DQER
100Mbps 1 2 X2-SON-8(1x1.4) Translators, Level Shifters RoHS
X2-SON-8(1x1.4)ROHS3 CompliantActive
Automotive bidirectional multi-voltage level shifters suitable for open-drain and push-pull applications
- Manufacturer
- TI
- Manufacturer part #
- LSF0102DQER
- Store part #
- C2652940
- Package / case
- X2-SON-8(1x1.4)
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,190 in stock
#C2652940
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.79 | ₹228.95 |
| 50+ | ₹36.49 | ₹1,824.50 |
| 150+ | ₹32.51 | ₹4,876.50 |
| 500+ | ₹27.53 | ₹13,765.00 |
| 2,500+ | ₹25.32 | ₹63,300.00 |
| 5,000+ | ₹23.99 | ₹1,19,950.00 |
5 × ₹45.79
₹228.95
excl. GST
₹270.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LSF0102DQER
₹228.95 for 5 + GST
Specifications
- output type
- Open-drain;Push-Pull
- Interface
- I2C;SMBus
- Output Signal
- TTL
- Operating Temperature
- -40℃~+125℃
- Input Signal
- TTL
- Voltage - Supply
- 1.8V~5.5V;950mV~4.5V
- Data Rate
- 100Mbps
- Number of Elements
- 1
- Channel Type
- Bidirectional
- Features
- Automatic direction detection;Output enable high-impedance
- Number of Circuits
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
Applications
- GPIO, MDIO, PMBus, SMBus, SDIO, UART, I²C, and other interfaces in telecom infrastructure
- Enterprise systems
- Communications equipment
- Consumer electronics
- Industrial applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ULSF0102AG-KAD-R#C53152885UTC · X2DFN-8(1x1.4) | UTC | X2DFN-8(1x1.4) | 380 | ₹28.66 · 380 in stock | View |
 | PCA9306GF,115#C2677431NXP · XSON-8(1x1.4) | NXP | XSON-8(1x1.4) | 1 | ₹140.15 · 1 in stock | View |
 | TPT29306L1-DFGR#C486182943PEAK · DFN-8(1x1.4) | 3PEAK | DFN-8(1x1.4) | 72 | ₹87.38 · 72 in stock | View |
