TIDatasheet (PDF)

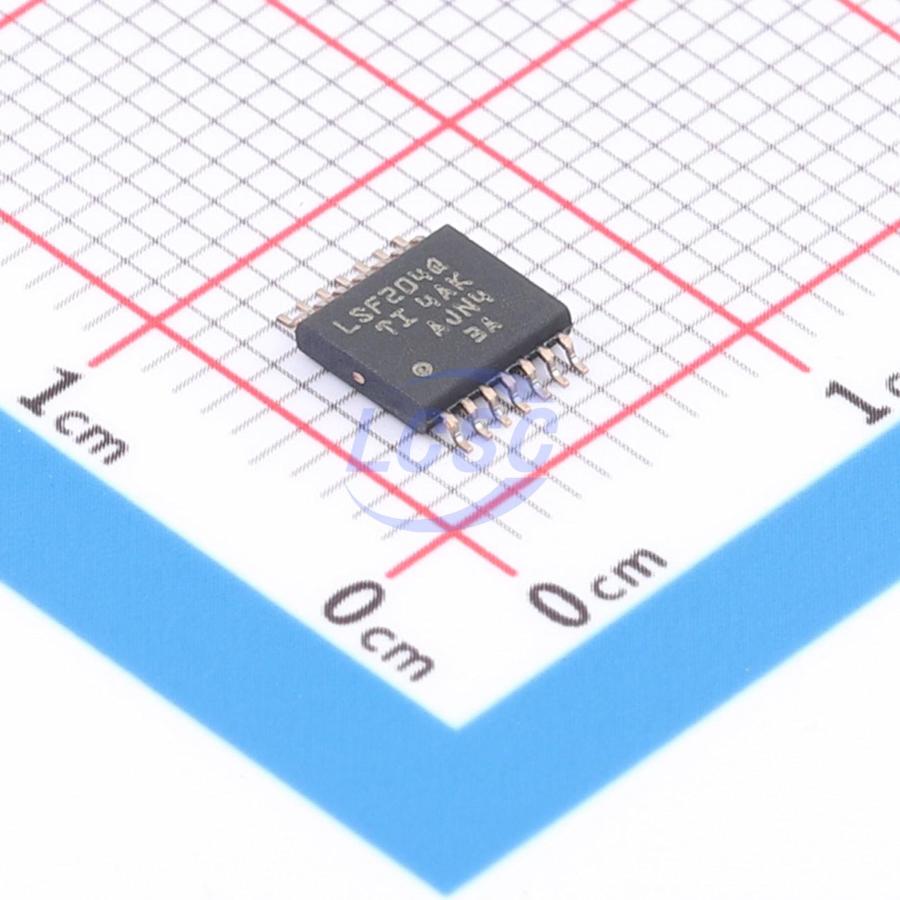

LSF0204QPWRQ1
1 4 TSSOP-14 Translators, Level Shifters RoHS
TSSOP-14ROHS3 CompliantActive
4-bit automatic bidirectional multi-voltage level shifter
- Manufacturer
- TI
- Manufacturer part #
- LSF0204QPWRQ1
- Store part #
- C2677502
- Package / case
- TSSOP-14
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,742 in stock
#C2677502
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.94 | ₹167.94 |
| 10+ | ₹141.22 | ₹1,412.20 |
| 30+ | ₹126.44 | ₹3,793.20 |
| 100+ | ₹109.93 | ₹10,993.00 |
| 500+ | ₹102.55 | ₹51,275.00 |
| 1,000+ | ₹99.07 | ₹99,070.00 |
1 × ₹167.94
₹167.94
excl. GST
₹198.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LSF0204QPWRQ1
₹167.94 for 1 + GST
Specifications
- output type
- Open-drain;Push-Pull
- Interface
- I2C;I2S;SPI;UART;JTAG;SMBus
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 800mV~4.5V;1.8V~5.5V
- Number of Elements
- 1
- Channel Type
- Bidirectional
- Features
- Automatic direction detection;Output enable high-impedance
- Number of Circuits
- 4
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.302 g
Overview
Applications
- I2S, JTAG, SPI, SDIO, UART, I²C, MDIO, PMBus, SMBus, and other interfaces
- Infotainment systems
- Audio head units
- Graphics clusters
- ADAS fusion
- ADAS front cameras
- HEV battery management systems
