ADIDatasheet (PDF)

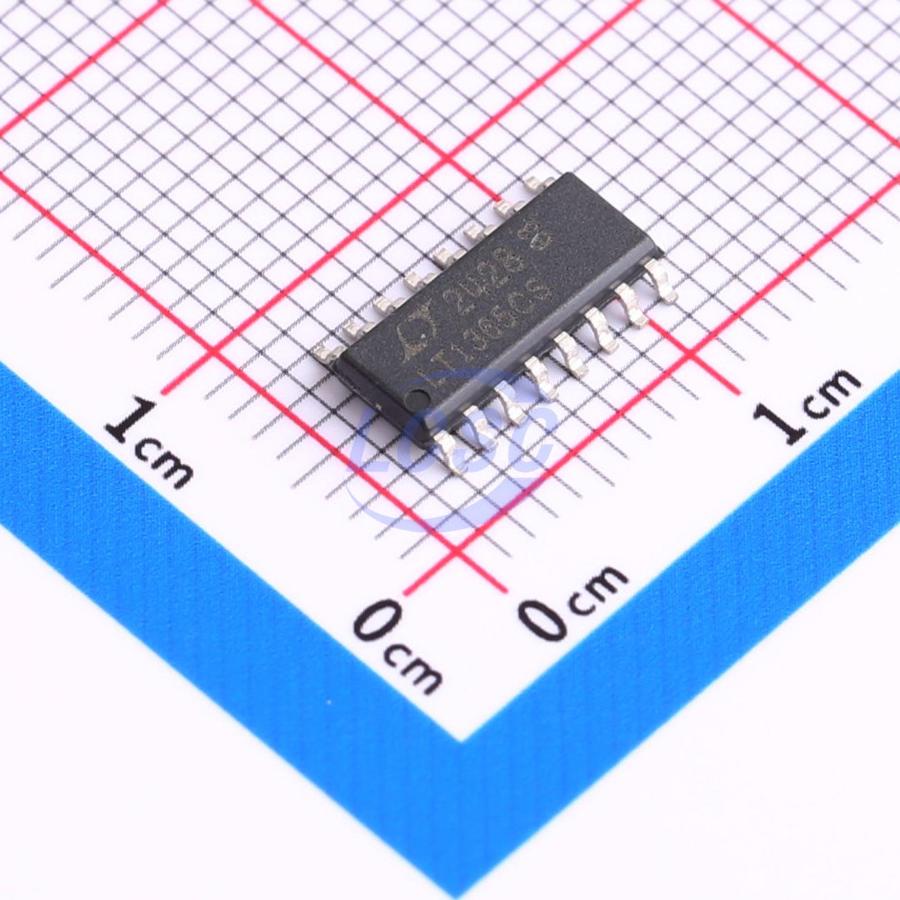

LT1365CS#PBF
50mA 4 500uV 1V/ns 90dB 600nA 6.3mA 70MHz SO-16 Instrumentation, Op Amps, Buffer Amps RoHS
SO-16ROHS3 CompliantActive
Dual and Quad 70MHz, 1000V/us Op Amps
- Manufacturer
- ADI
- Manufacturer part #
- LT1365CS#PBF
- Store part #
- C663520
- Package / case
- SO-16
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C663520
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹4,467.78 | ₹4,467.78 |
| 30+ | ₹4,256.90 | ₹1,27,707.00 |
1 × ₹4,467.78
₹4,467.78
excl. GST
₹5,271.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LT1365CS#PBF
₹4,467.78 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1V/ns
- Input Offset Current(Ios)
- 120nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 600nA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 6.3mA
- Gain Bandwidth Product
- 70MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 9nV/√Hz@10kHz
- Dual Supply
- -15V~15V;-5V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.358 g
Overview
The LT1364/LT1365 are dual and quad high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 150Ω load to ±7.5V with ±15V supplies and to ±3.4V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer or cable driving applications.
Applications
- Wideband Amplifiers
- Buffers
- Active Filters
- Video and RF Amplification
- Cable Drivers
- Data Acquisition Systems
Key features
- 70MHz Gain Bandwidth
- 1000V/µs Slew Rate
- 7.5mA Maximum Supply Current per Amplifier
- Unity-Gain Stable C-LoadTM Op Amp Drives All Capacitive Loads
- 9nV/√Hz Input Noise Voltage
- 1.5mV Maximum Input Offset Voltage
- 2µA Maximum Input Bias Current
- 350nA Maximum Input Offset Current
- 50mA Minimum Output Current
- ±7.5V Minimum Output Swing into 150Ω
- 4.5V/mV Minimum DC Gain, RL = 1k
- 50ns Settling Time to 0.1%, 10V Step
- 0.06% Differential Gain, AV = 2, RL = 150Ω
- 0.04° Differential Phase, AV = 2, RL = 150Ω
- Specified at ±2.5V, ±5V, and ±15V
